DTC P0442: EVAP Control System
>>
Component Inspection
Component Inspection
For component inspections, see
Fig 1
Fig 2
.

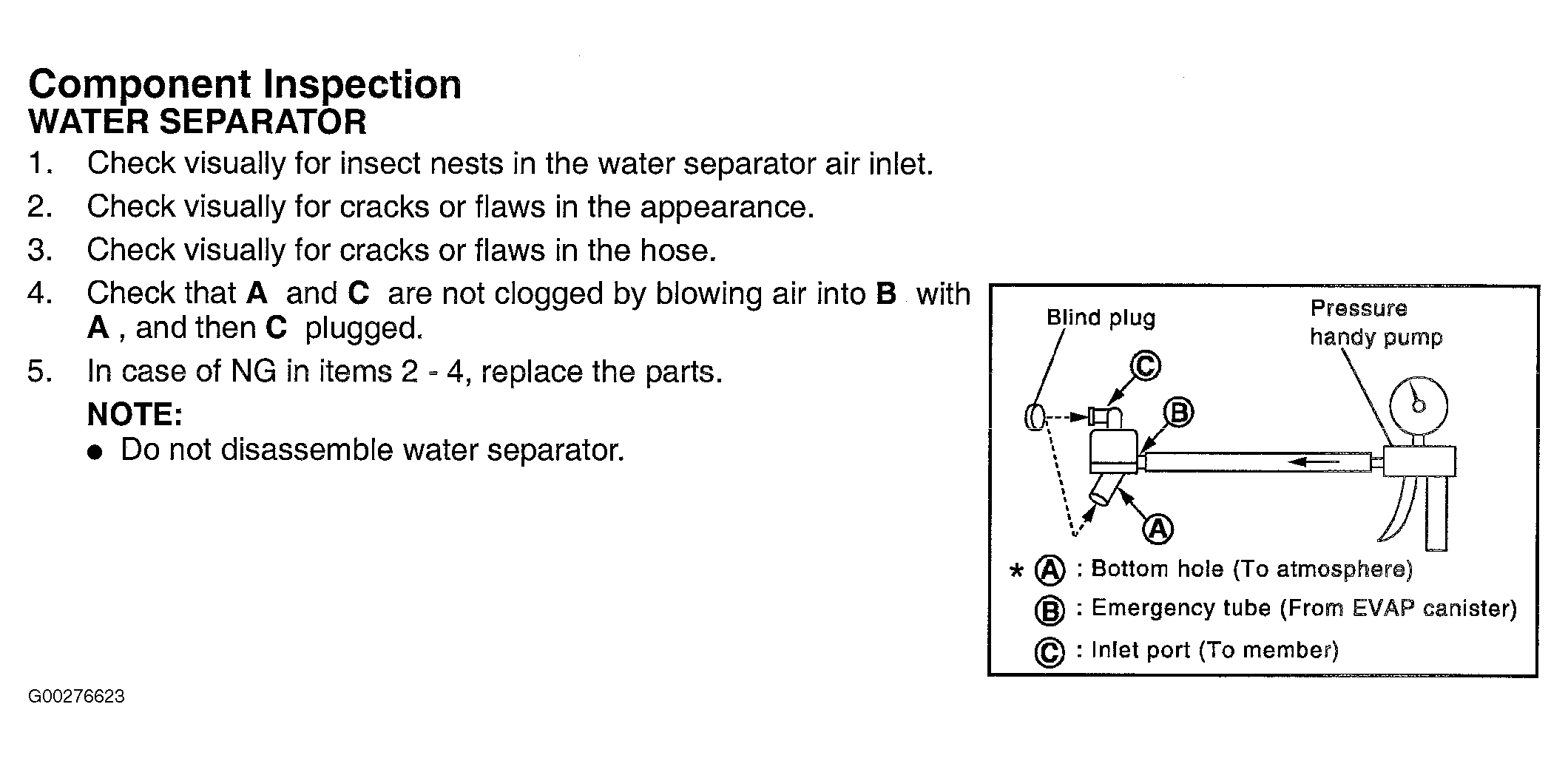

Fig 1: Component Inspection Of Water Separator
Courtesy of NISSAN MOTOR CO., U.S.A.

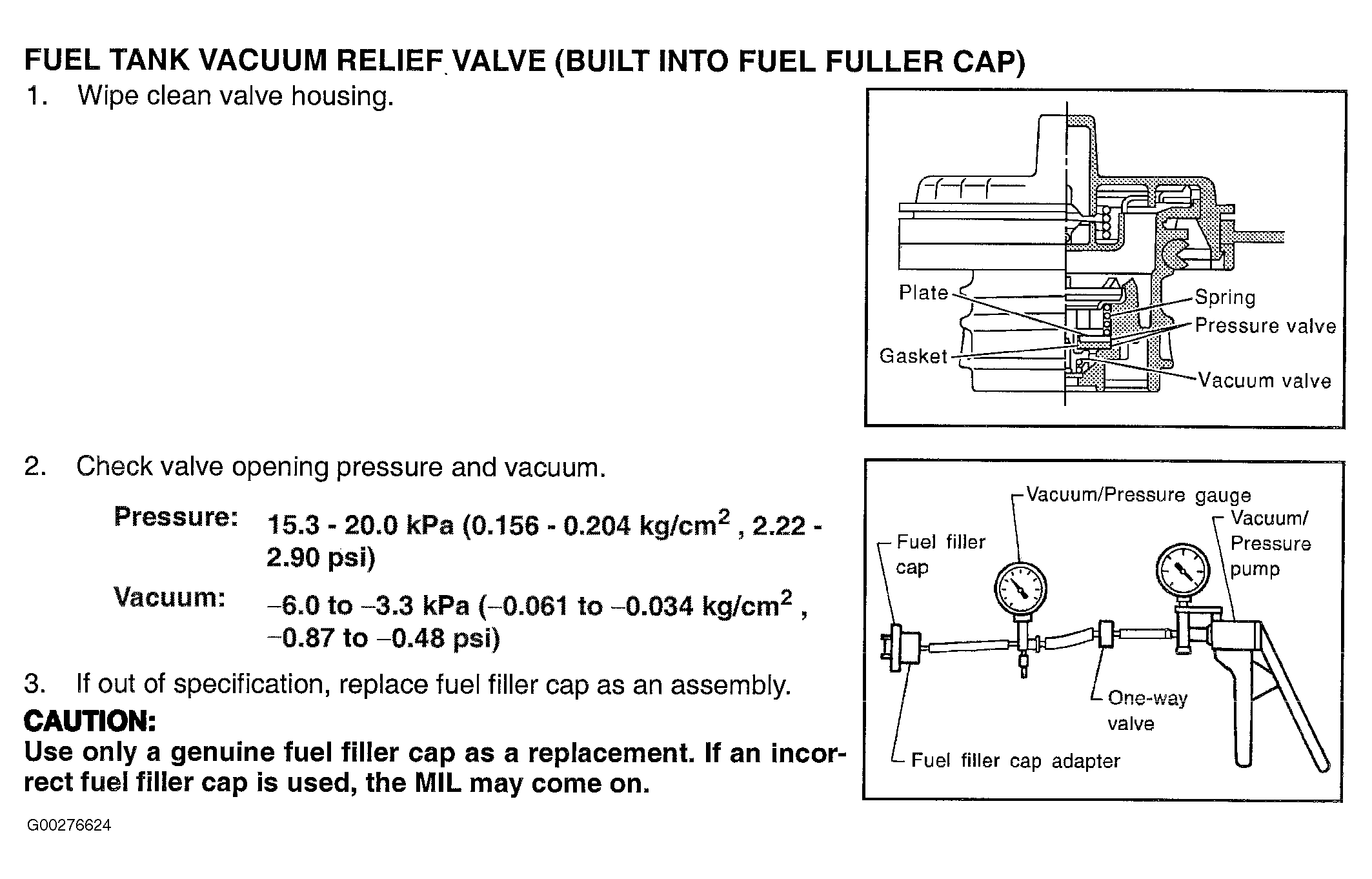

Fig 2: Component Inspection Of Fuel Tank Vacuum Relief Valve
Courtesy of NISSAN MOTOR CO., U.S.A.
