Component Inspection

For component inspection, see Fig 1 -Fig 3 .

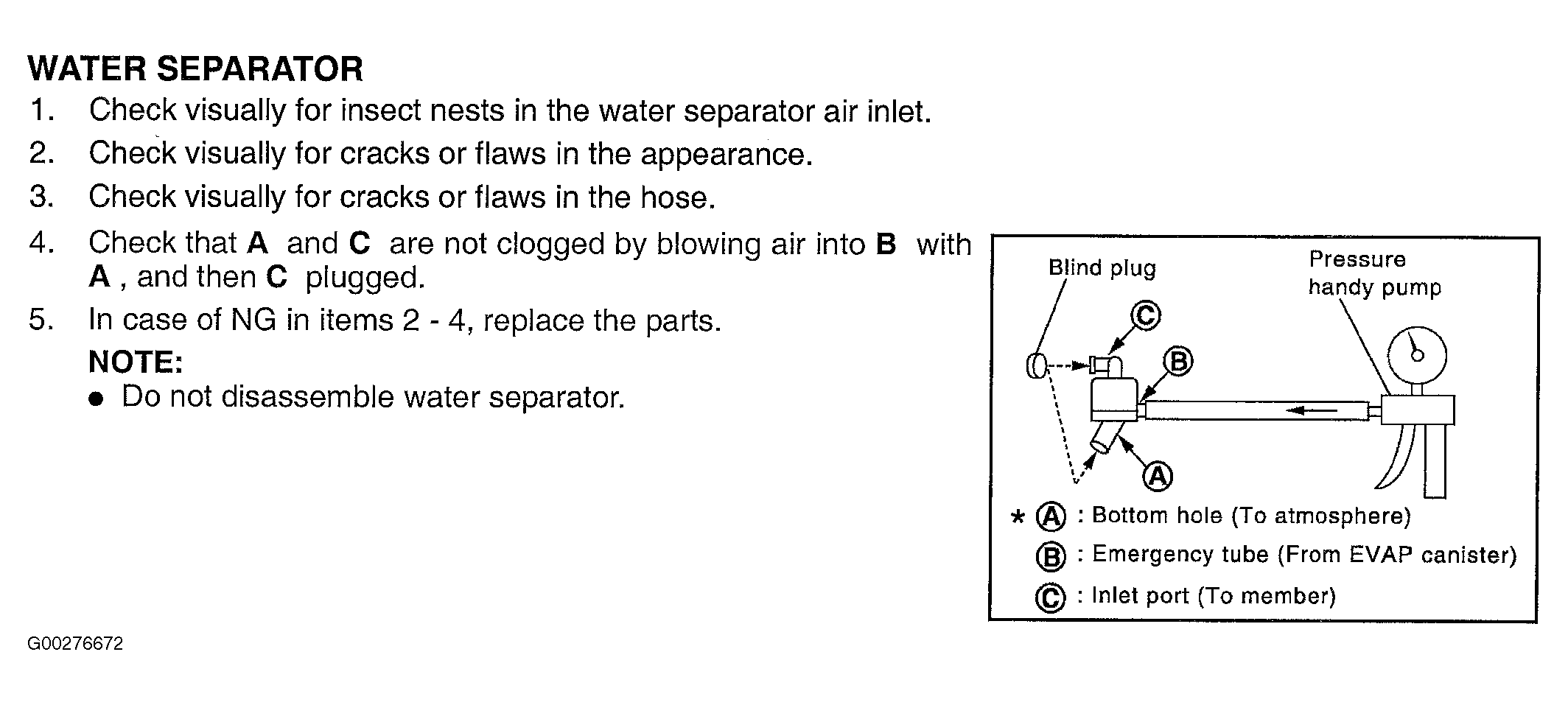

Fig 1: Component Inspection (1 Of 3)

G00276672

Courtesy of NISSAN MOTOR CO., U.S.A.

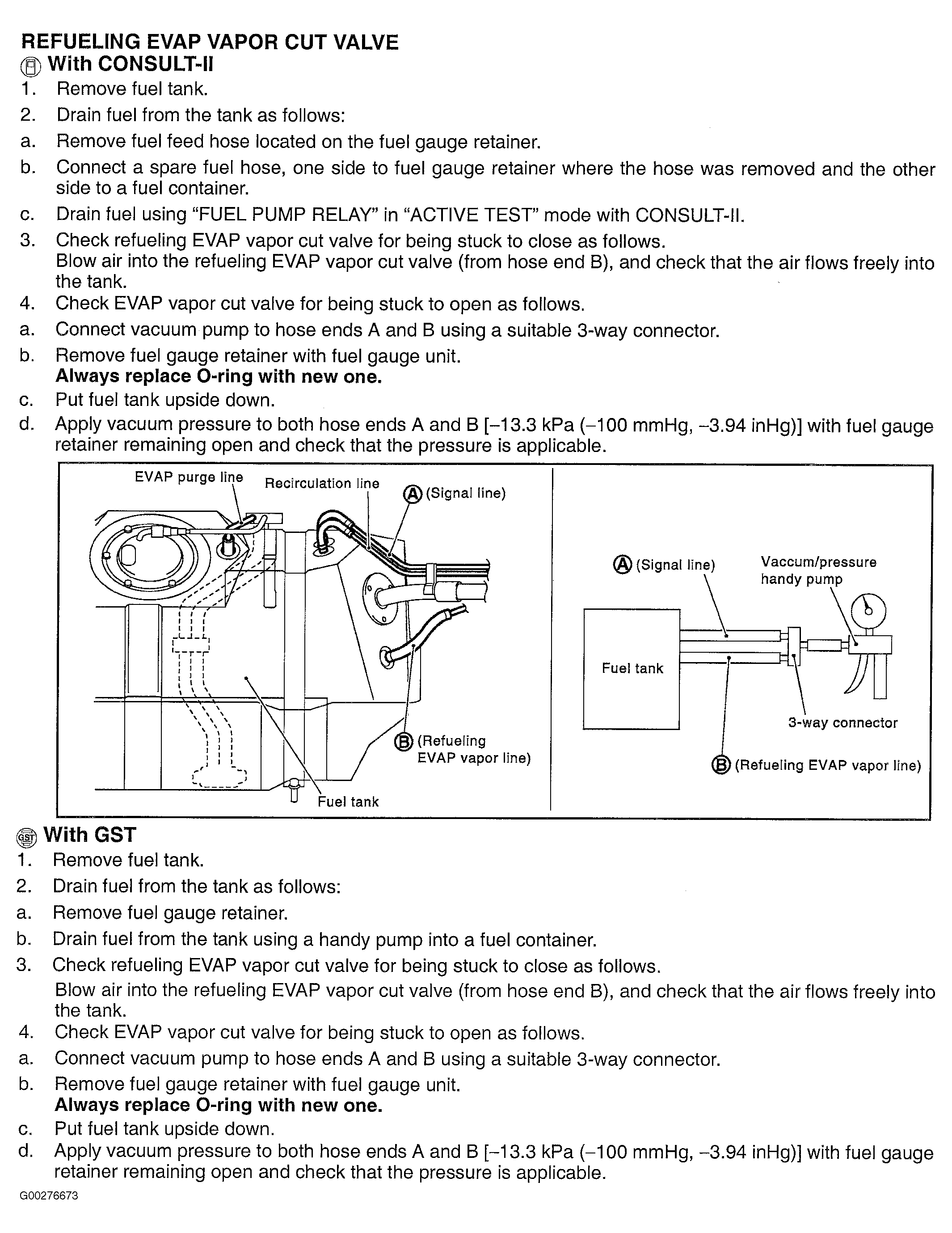

Fig 2: Component Inspection (2 Of 3)

G00276673

Courtesy of NISSAN MOTOR CO., U.S.A.

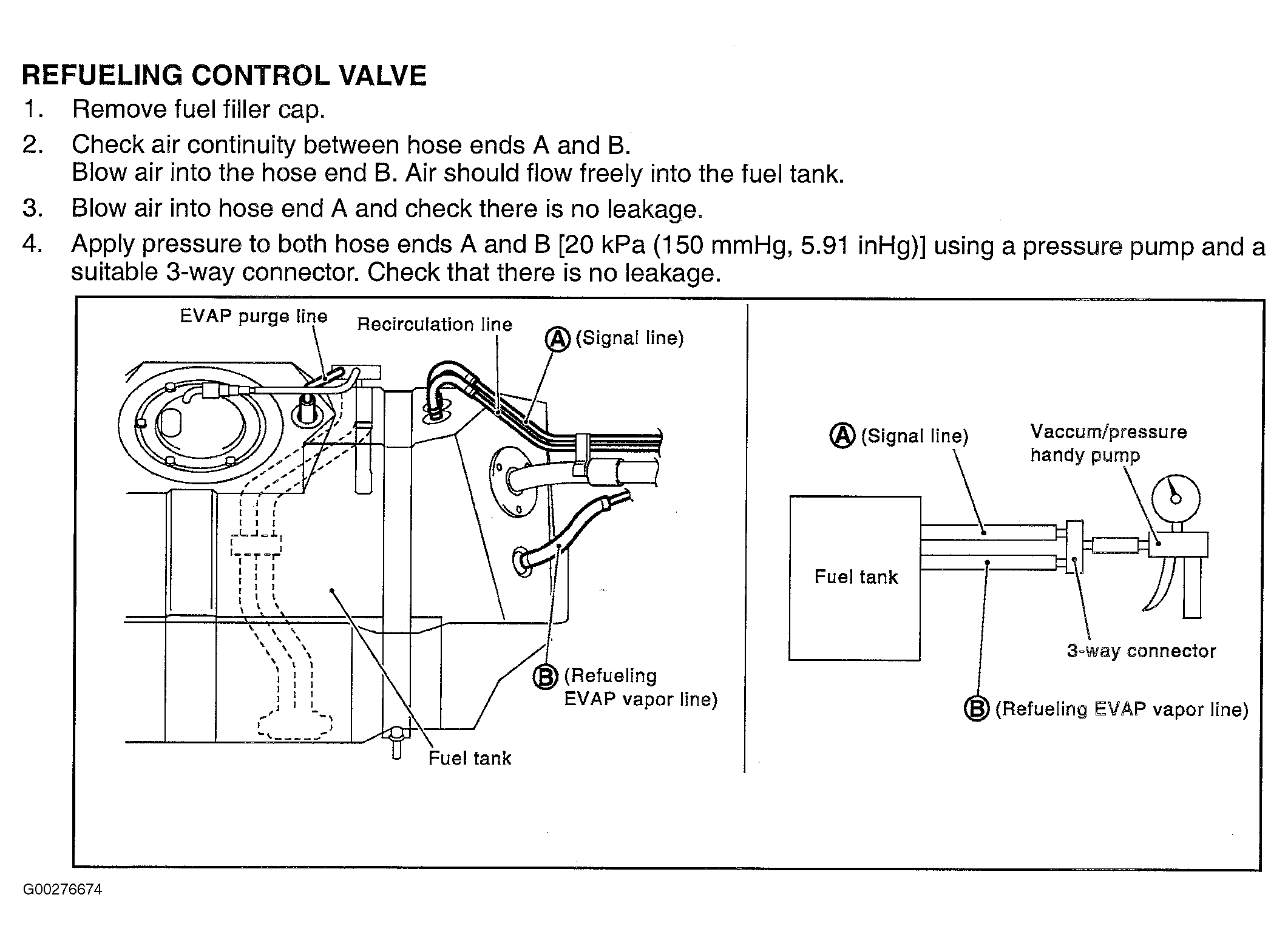

Fig 3: Component Inspection (3 Of 3)

G00276674

Courtesy of NISSAN MOTOR CO., U.S.A.
