DTC Confirmation Procedure

For DTC confirmation procedure, see Fig 1 and Fig 2 .

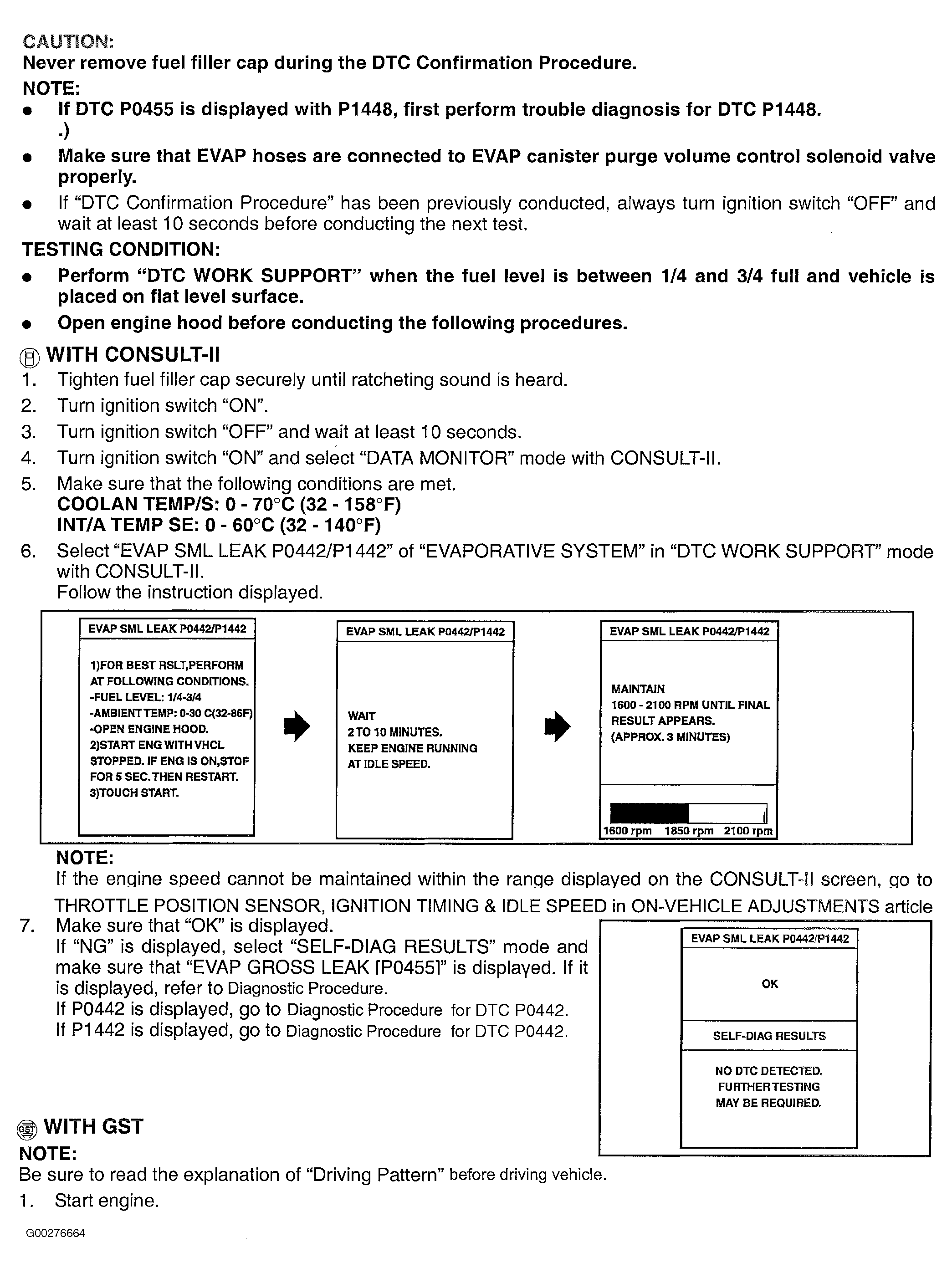

Fig 1: DTC Confirmation Procedure (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

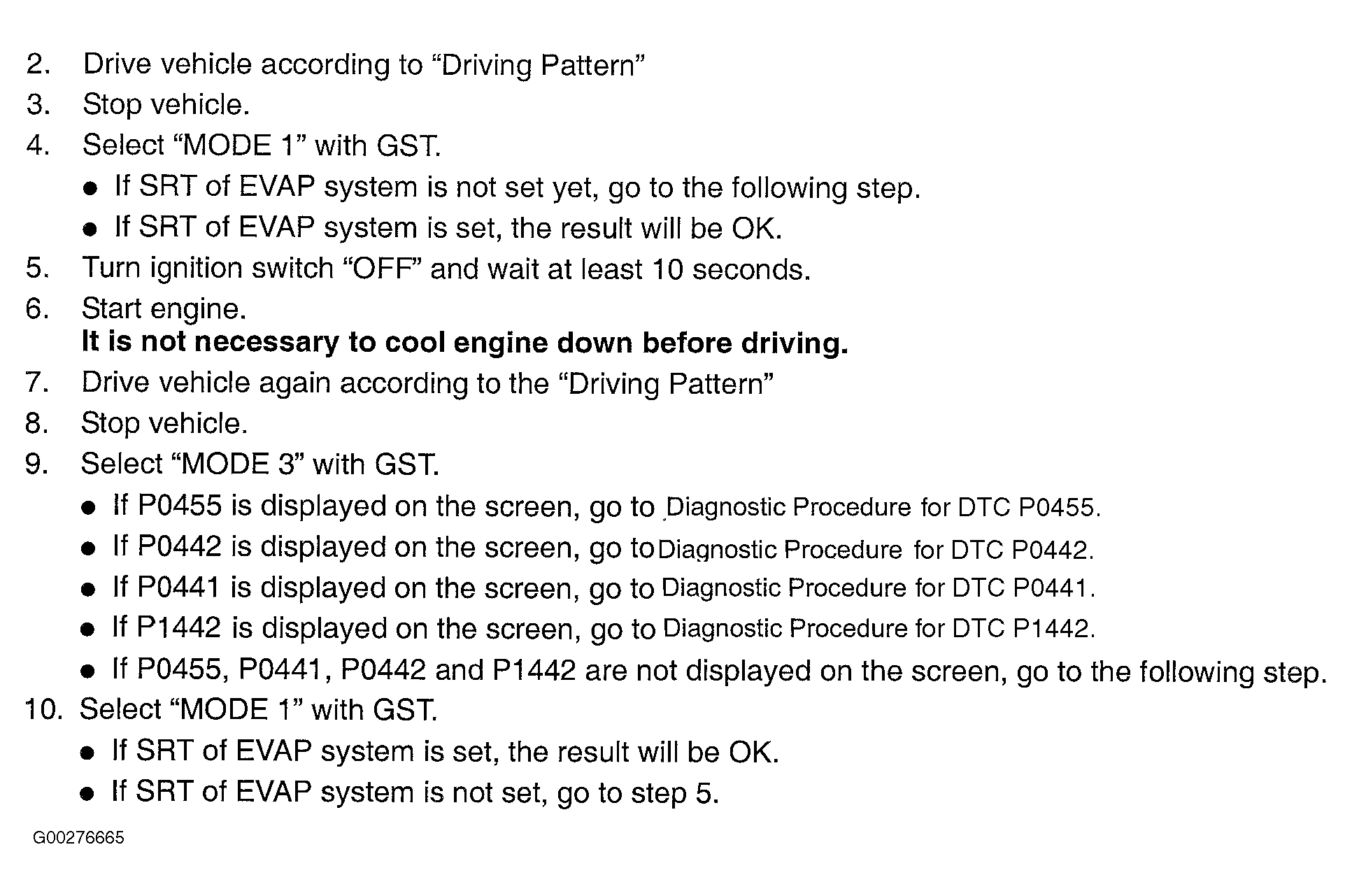

Fig 2: DTC Confirmation Procedure (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
