Component Inspection

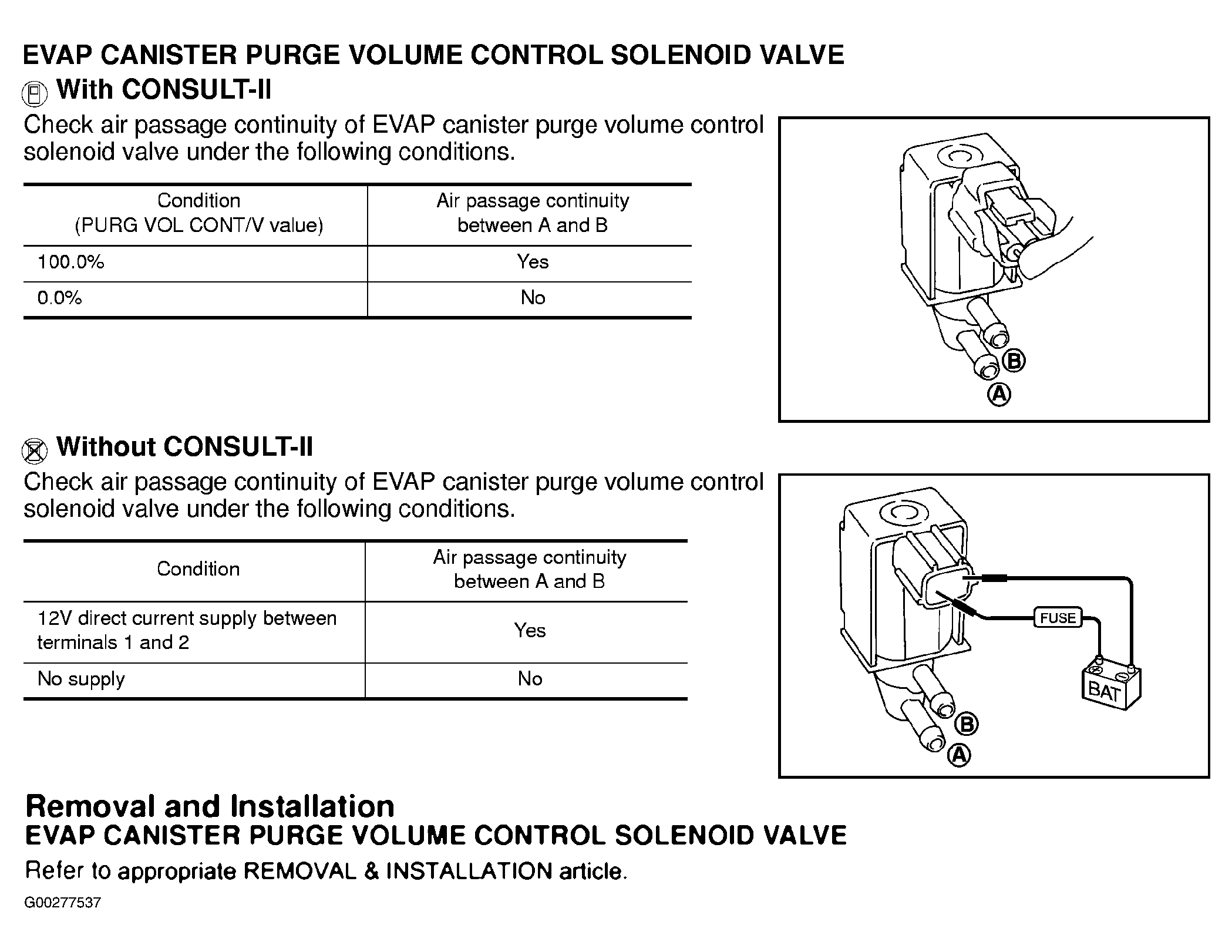

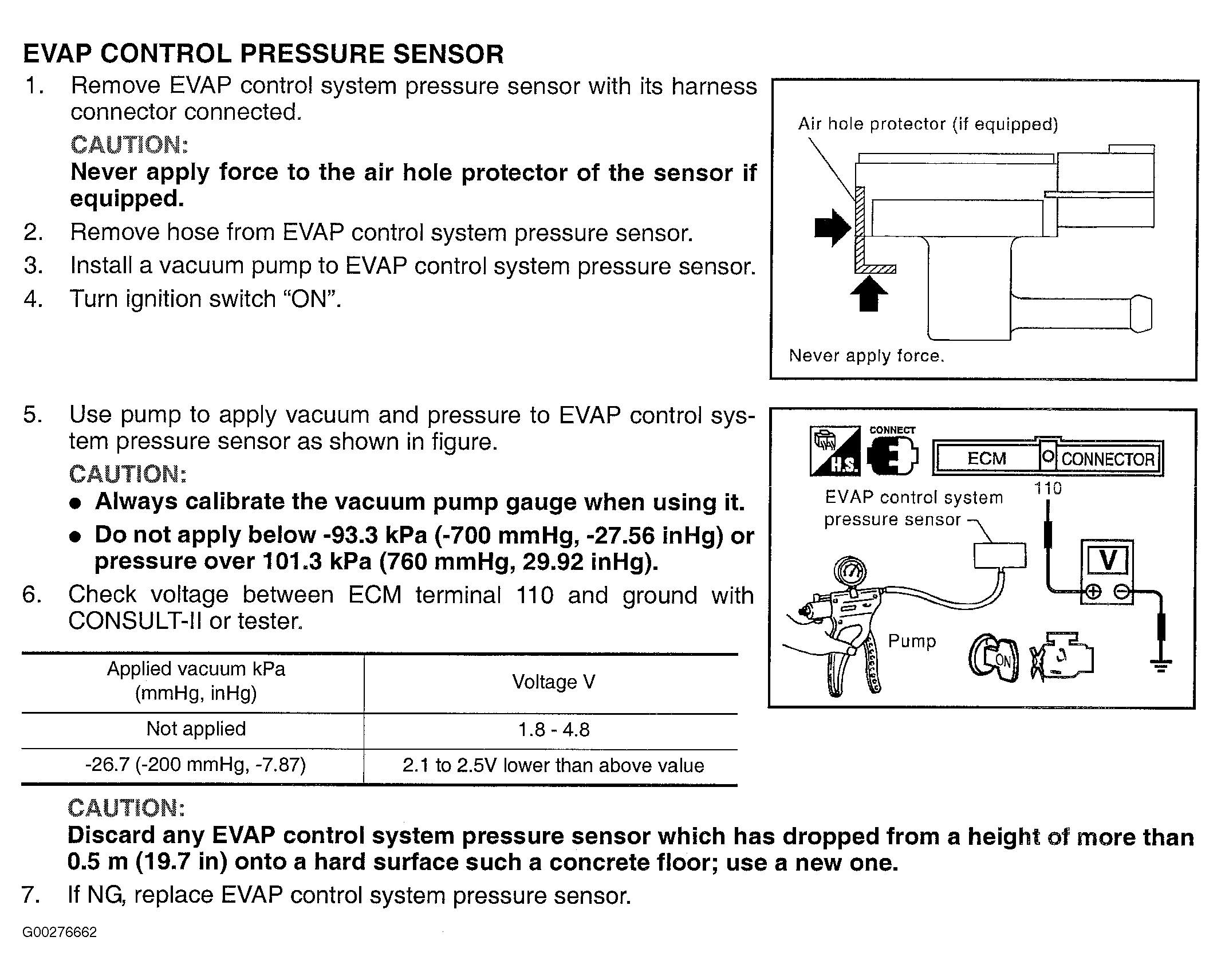

NOTE: For inspection of fuel tank pressure sensor, see Figure . For inspection of EVAP control system pressure sensor, see Figure . For inspection of refueling control valve, see Figure . For inspection of EVAP canister purge volume control solenoid valve, see Figure .

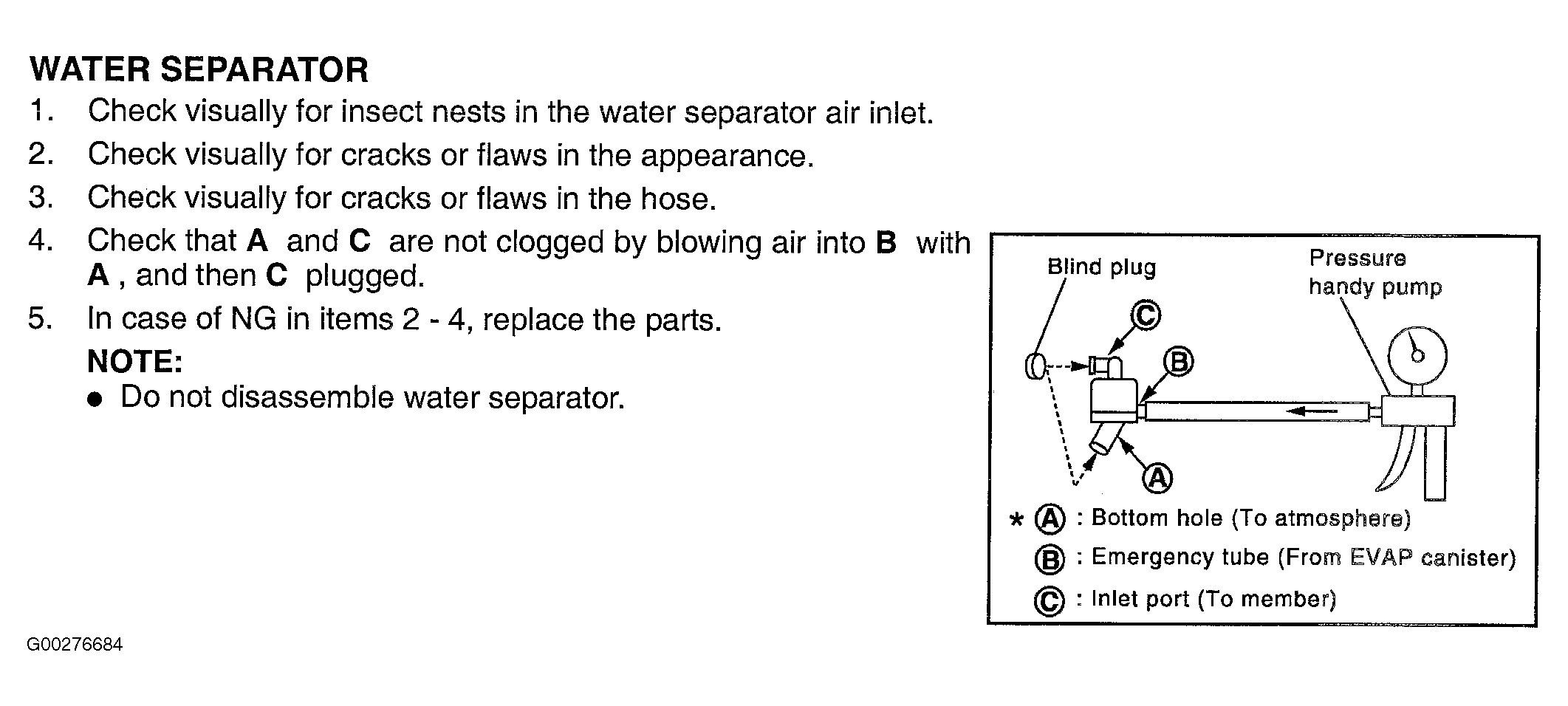

For water separator component inspection, see Fig 1 .

Fig 1: Component Inspection
G00276684Courtesy of NISSAN MOTOR CO., U.S.A.
