Removal and Installation: Notes

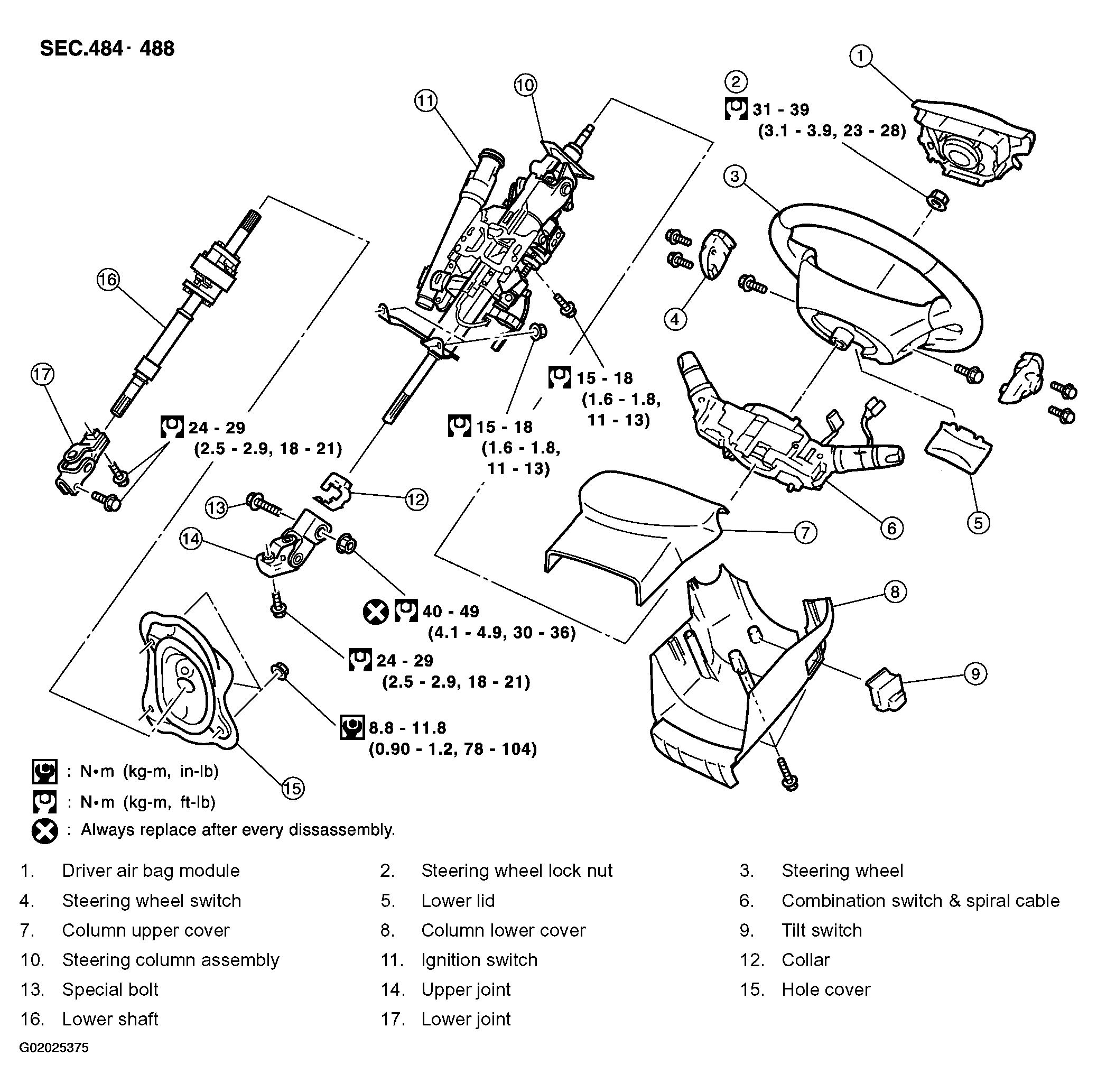

Fig 1: Exploded View Of Steering Column Components And Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

Care must be taken not to give axial impact to steering column assembly during removal and installation.
Care must be taken not to move steering gear during removal of steering column assembly.
