Automatic Transaxle
>>
A/T Control System
>>
Input/Output Signal of TCM
Input/Output Signal of TCM

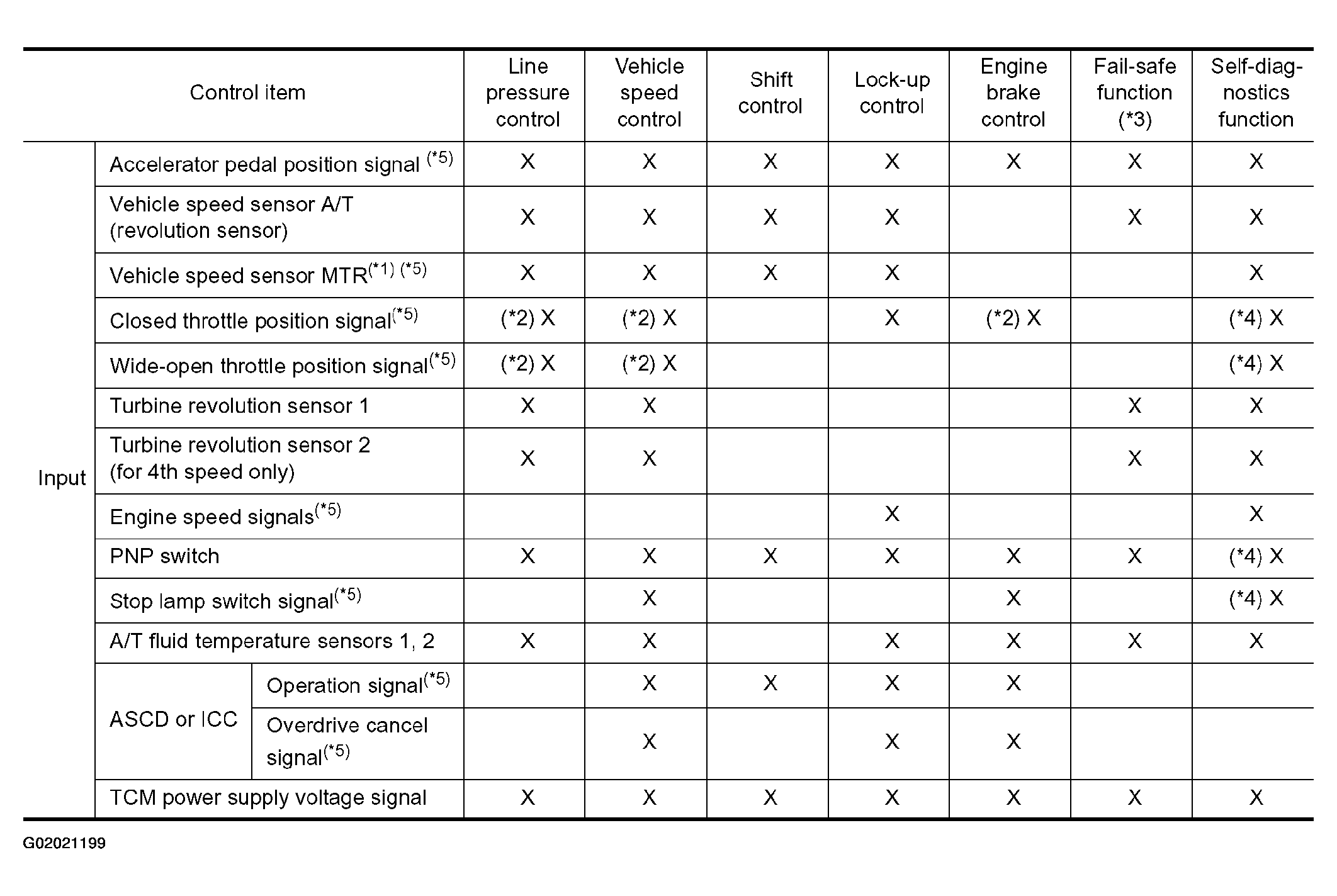

Fig 1: TCM Input/Output Signal Chart (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

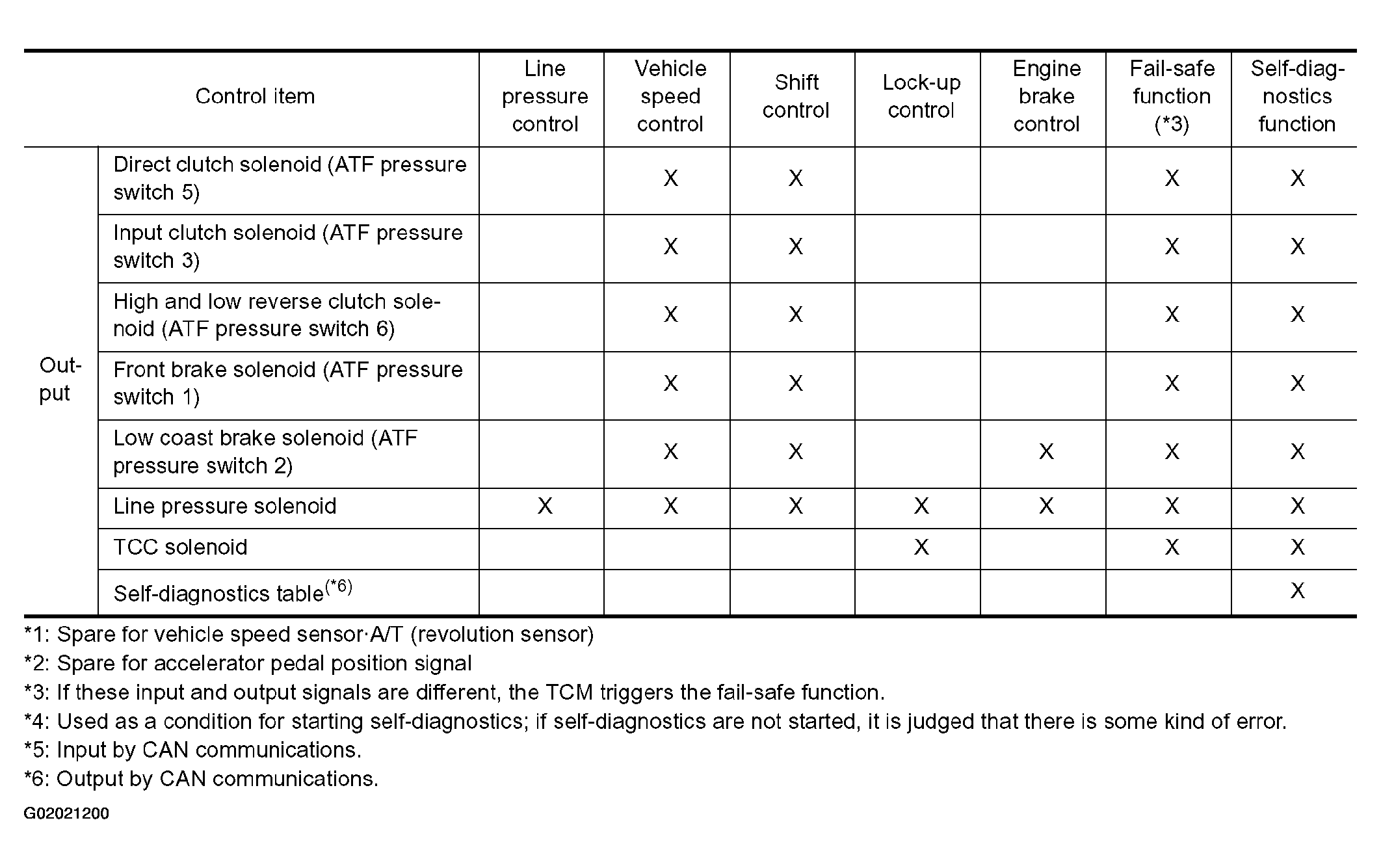

Fig 2: TCM Input/Output Signal Chart (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
