Trouble Diagnosis: Consult-II: Notes
After performing "SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II) ", place check marks for results on the "DIAGNOSTIC WORKSHEET ". Reference pages are provided following the items:
NOTE:

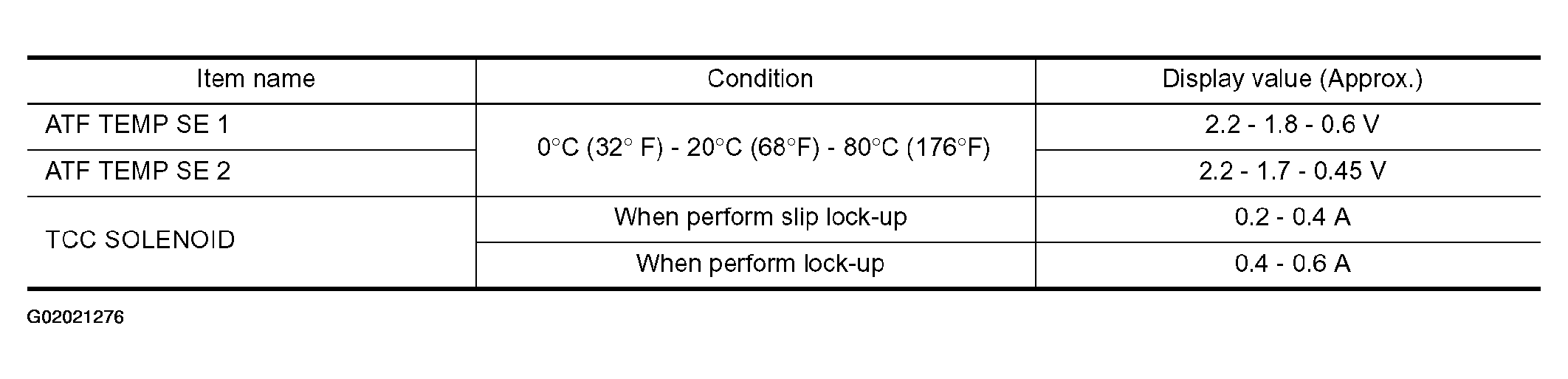

- The CONSULT-II electrically displays shift timing and lock-up timing (that is, operation timing of each solenoid). Check for time difference between actual shift timing and the CONSULT-II display. If the difference is noticeable, mechanical parts (except solenoids, sensors, etc.) may be malfunctioning. Check mechanical parts using applicable diagnostic procedures.
- Shift schedule (which implies gear position) displayed on CONSULT-II and that indicated may differ slightly. This occurs because of the following reasons:
- Actual shift schedule has more or less tolerance or allowance,
- shift schedule indicated in Service Manual refers to the point where shifts start, and
- gear position displayed on CONSULT-II indicates the point where shifts are completed.
- Display of solenoid valves on CONSULT-II changes at the start of shifting, while gear position is displayed upon completion of shifting (which is computed by TCM).

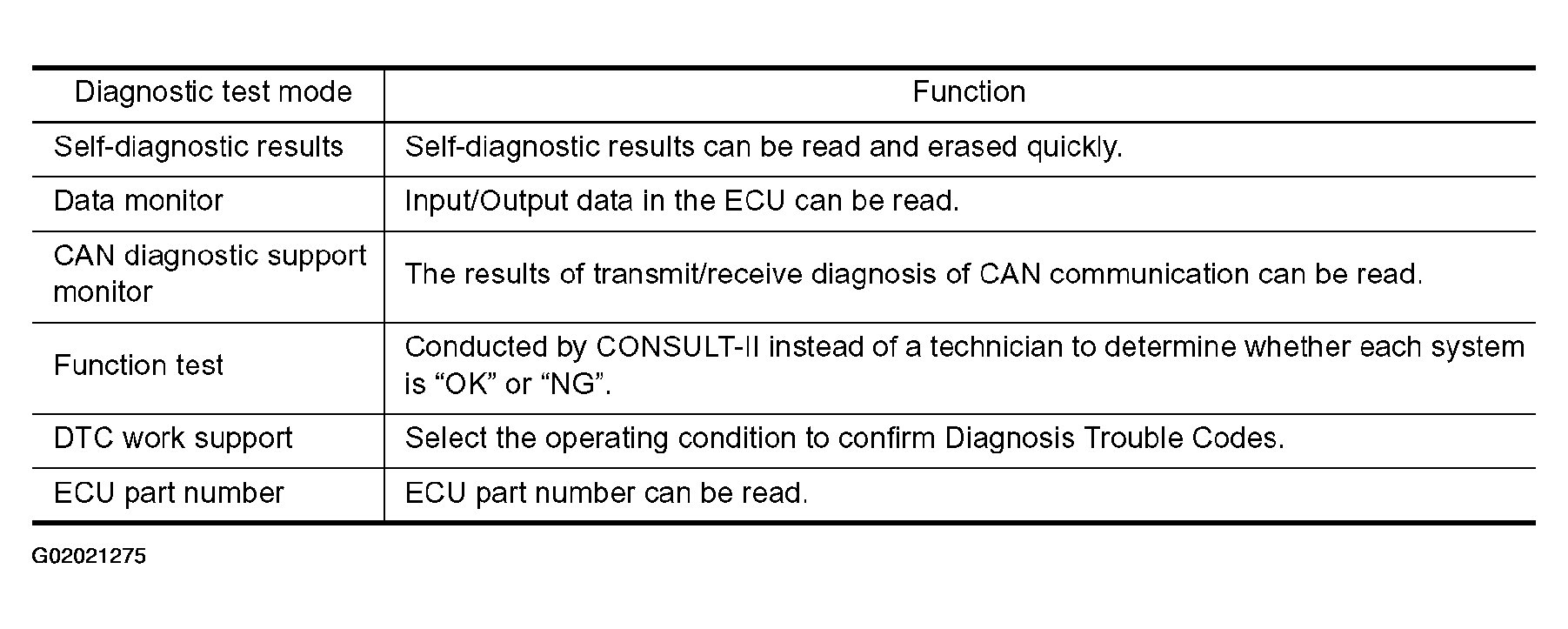

- Additional CONSULT-II information can be found in the Operation Manual supplied with the CONSULT-II unit.
