Home >> Infiniti >> 2003 >> Q45 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Keyless Entry System >> Remote Keyless Entry System >> Terminal and Reference Value For Driver Door Control Unit (LCU01)

Terminal and Reference Value For Driver Door Control Unit (LCU01)

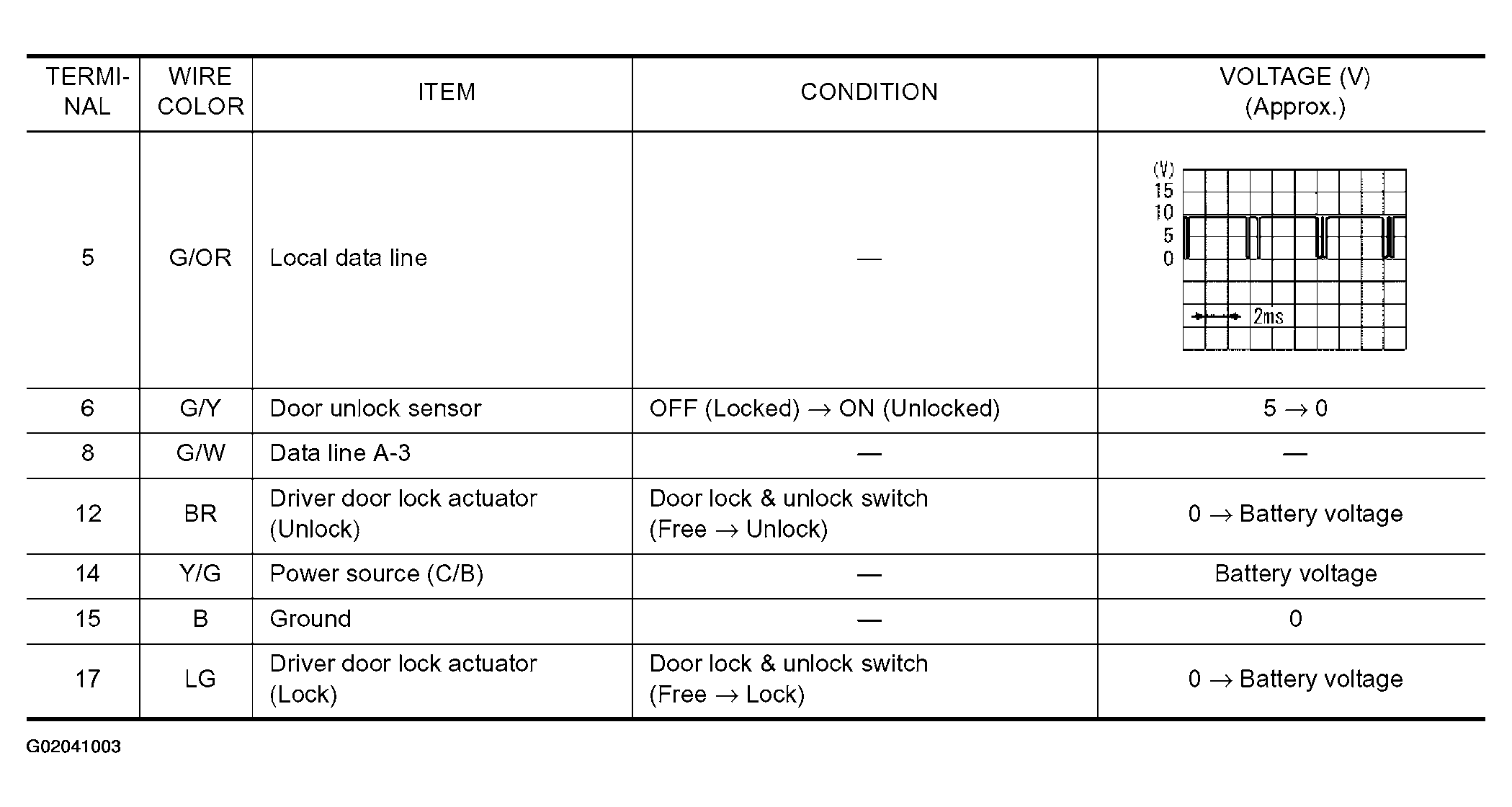

Fig 1: Terminal And Reference Value For Driver Door Control Unit (LCU01)

G02041003

Courtesy of NISSAN MOTOR CO., U.S.A.
