Terminals and Reference Value for Driver Door Control Unit
Terminals and Reference Value for Driver Door Control Unit

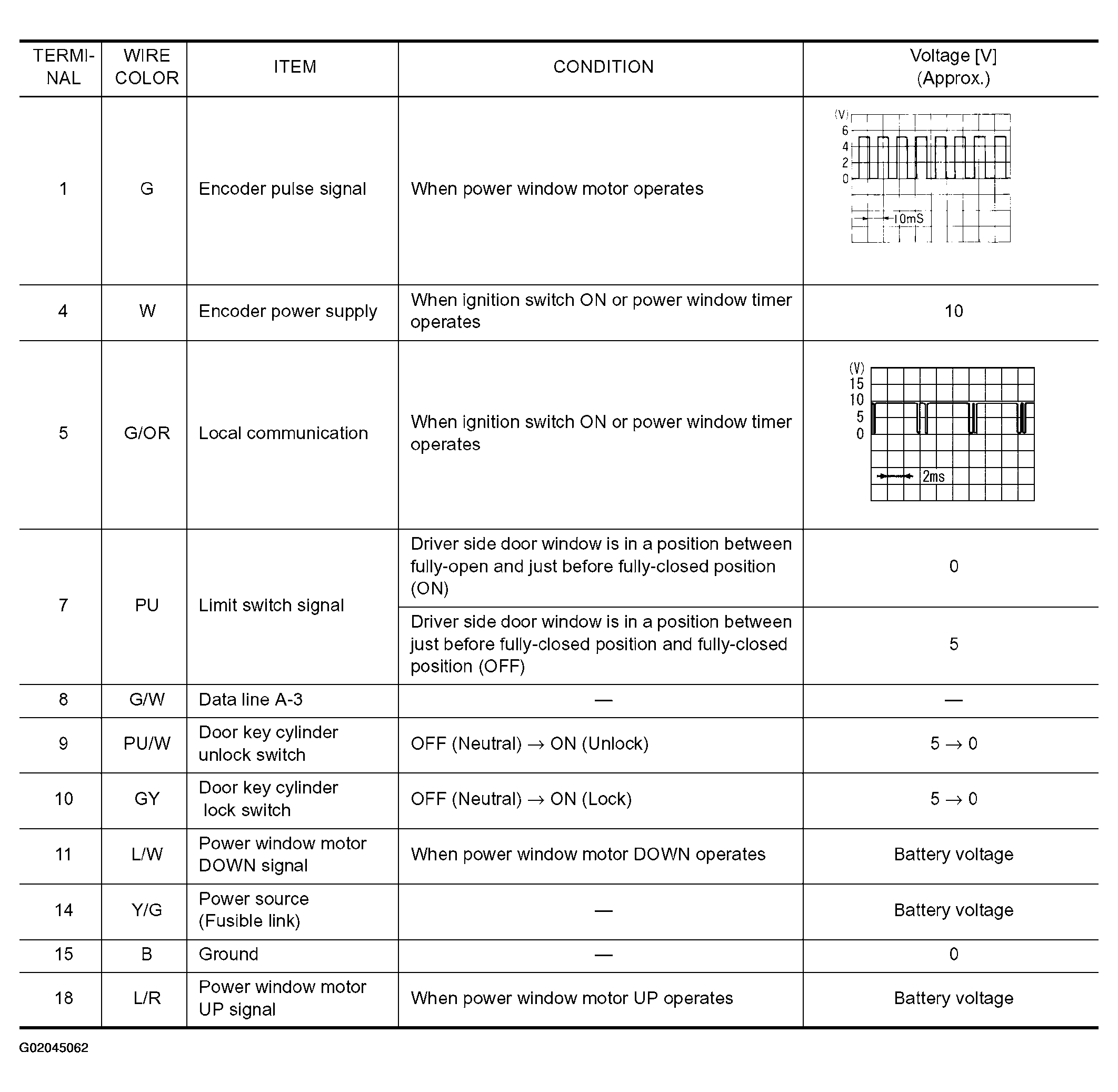

Fig 1: Terminals And Reference Value Chart (Driver Door Control Unit)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
