Consult-II Basic Operation Procedure

  1. Turn ignition switch "OFF".
  2. Connect "CONSULT-II" and CONSULT-II CONVERTER to data link connector.

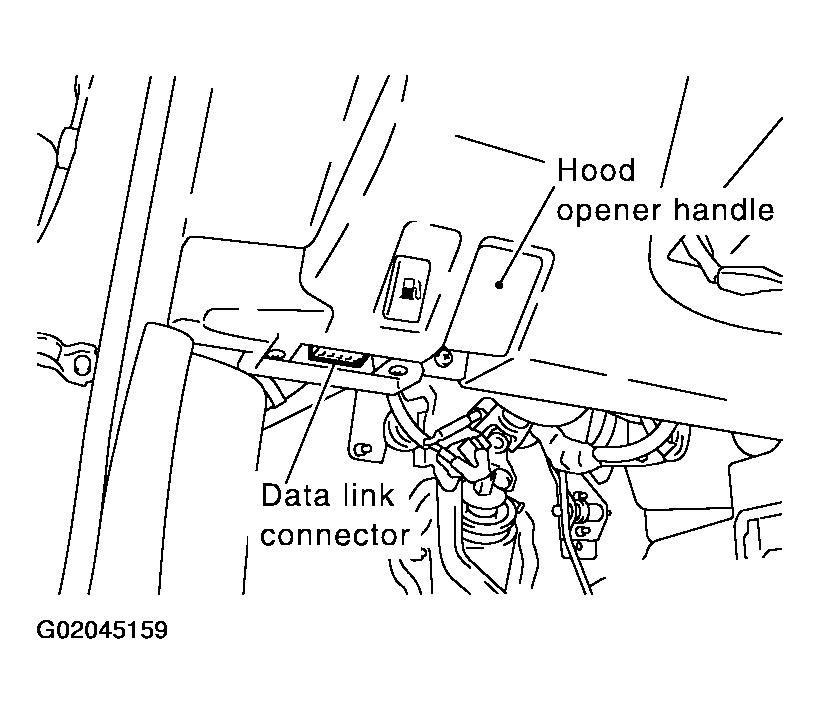

    Fig 1: Locating Data Link Connector
    G02045159Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START (NISSAN BASED VHCL)".

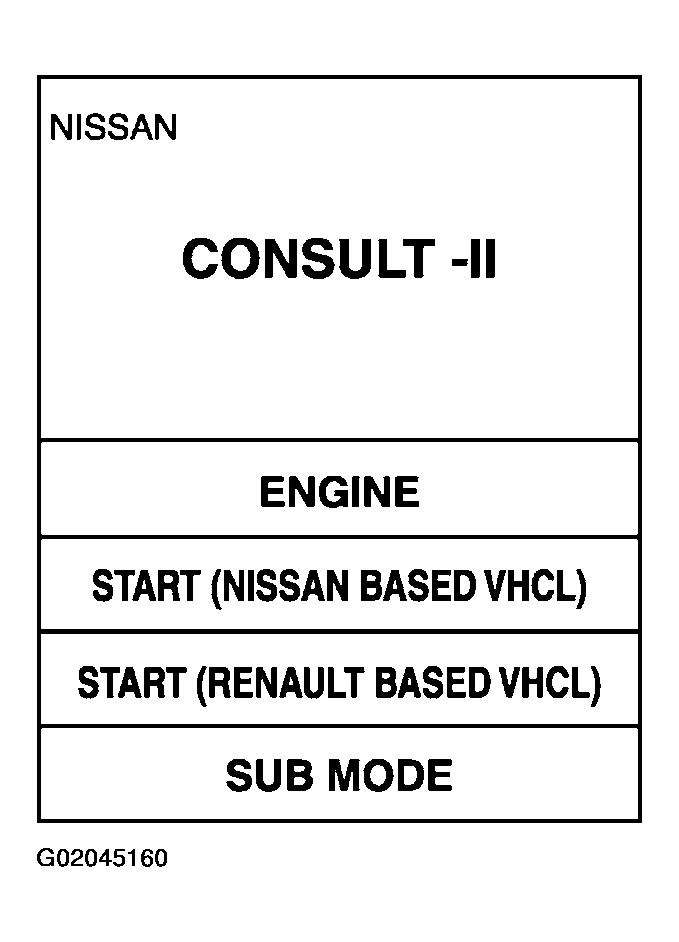

    Fig 2: CONSULT-II Display-Touch "START (NISSAN BASED VHCL)"
    G02045160Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "IVMS" on the "SELECT SYSTEM" screen.

    If "BCM" is not indicated, go to Refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

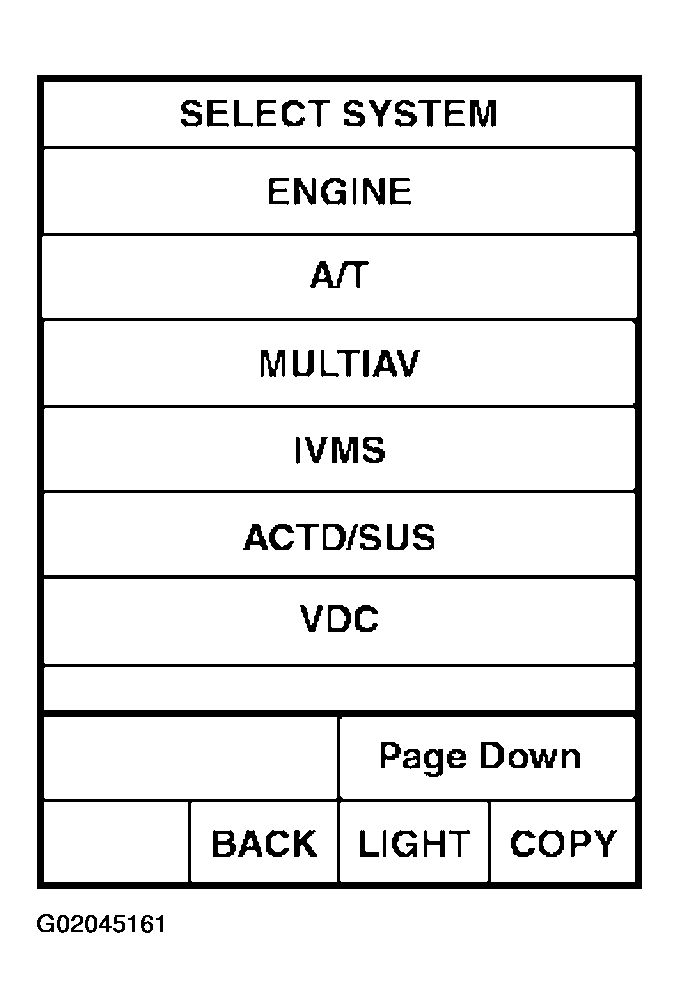

    Fig 3: CONSULT-II Display-Touch "IVMS"
    G02045161Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Check the model specification, and touch either "WITH SUNROOF" or "WITHOUT SUNROOF" on the "SELECT SYS COND" screen.

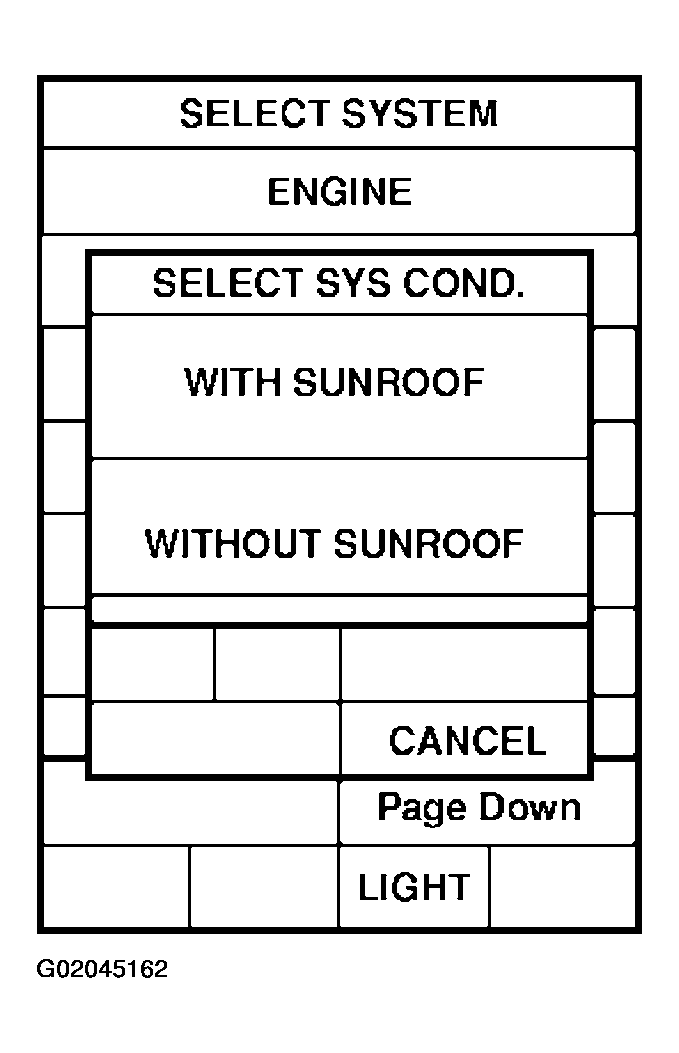

    7. Fig 4: CONSULT-II Display-Touch "SELECT SYS COND"
    G02045162Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "OK". If the selection is wrong, touch "CANCEL".
  8. Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
