Removal And Installation

Observe the following to ensure proper servicing.

CAUTION:

When removing, remove negative terminal first. But for installation, install positive terminal first.
Tighten parts to the specified torque shown below.
Battery fix frame mounting nut:

: 3.5 - 5.3 N.m (0.36 - 0.54 kg-m, 31 - 46 in-lb)

Battery terminal nut:

: 3.0 - 5.0 N.m (0.31 - 0.51 kg-m, 27 - 44 in-lb)

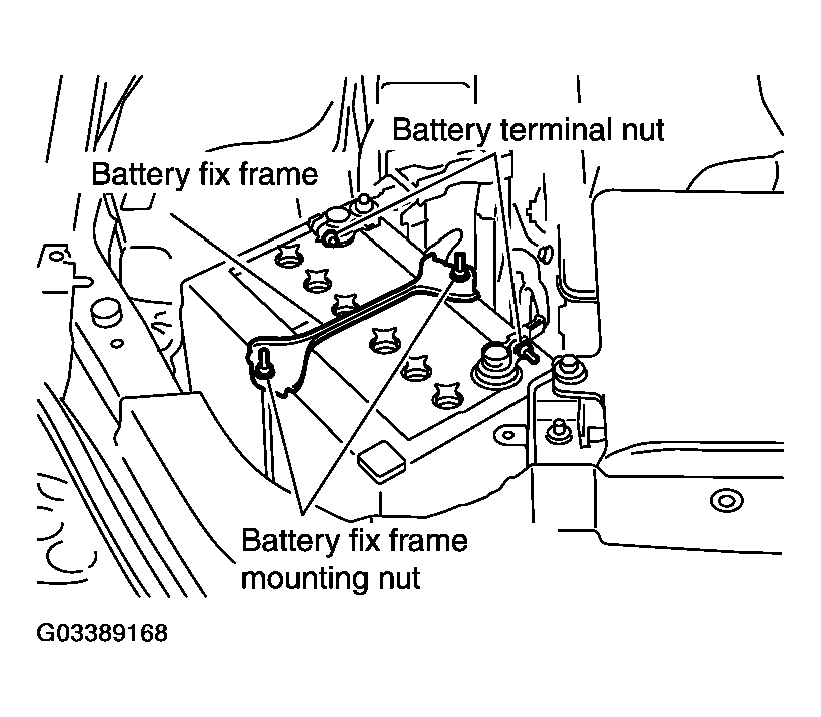

Fig 1: Identifying Battery Hold-Down Components
Courtesy of NISSAN MOTOR CO., U.S.A.
