Function Of Control Valve

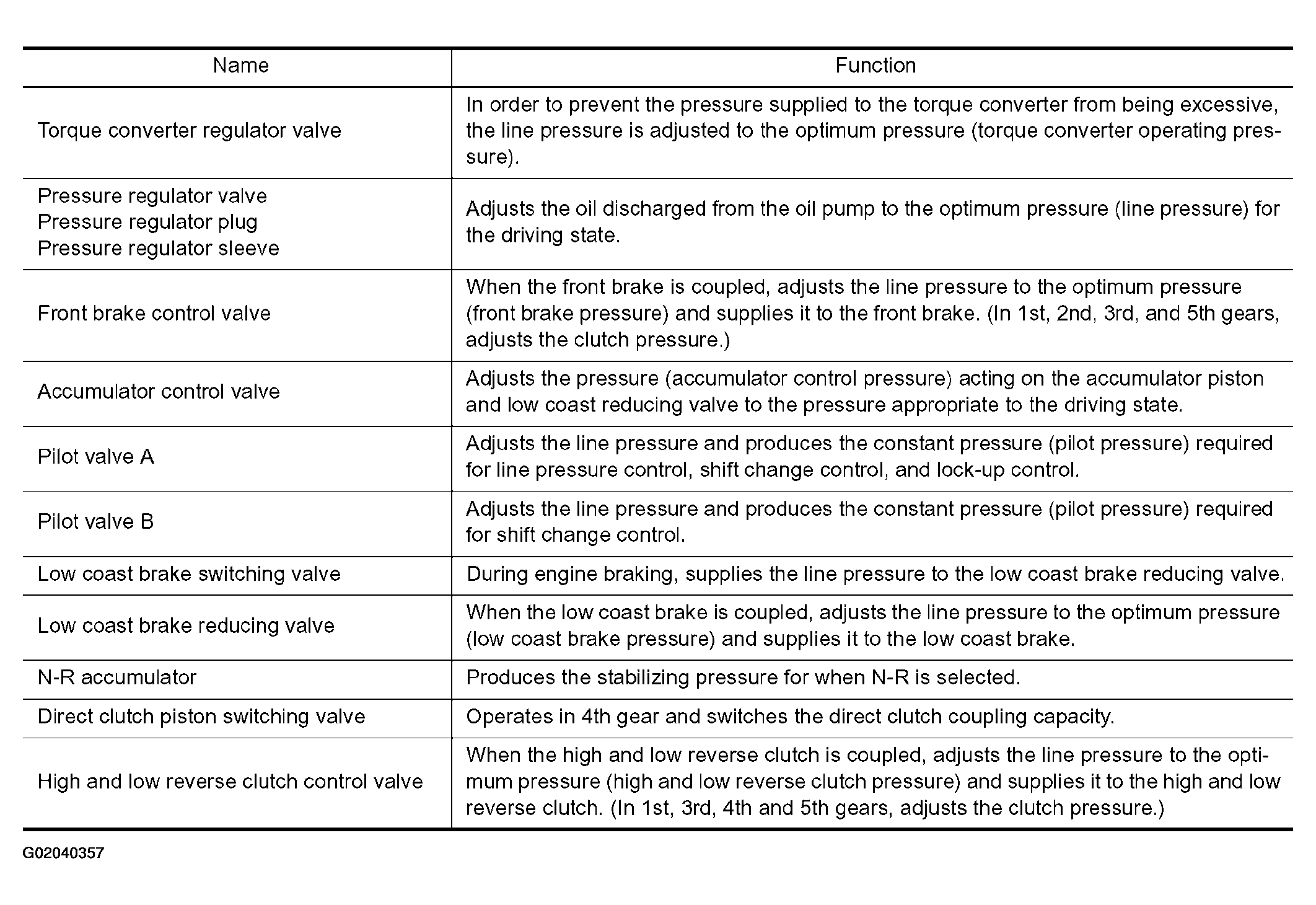

Fig 1: Control Valve Function Description Chart (1 Of 2)
G02040357Courtesy of NISSAN MOTOR CO., U.S.A.

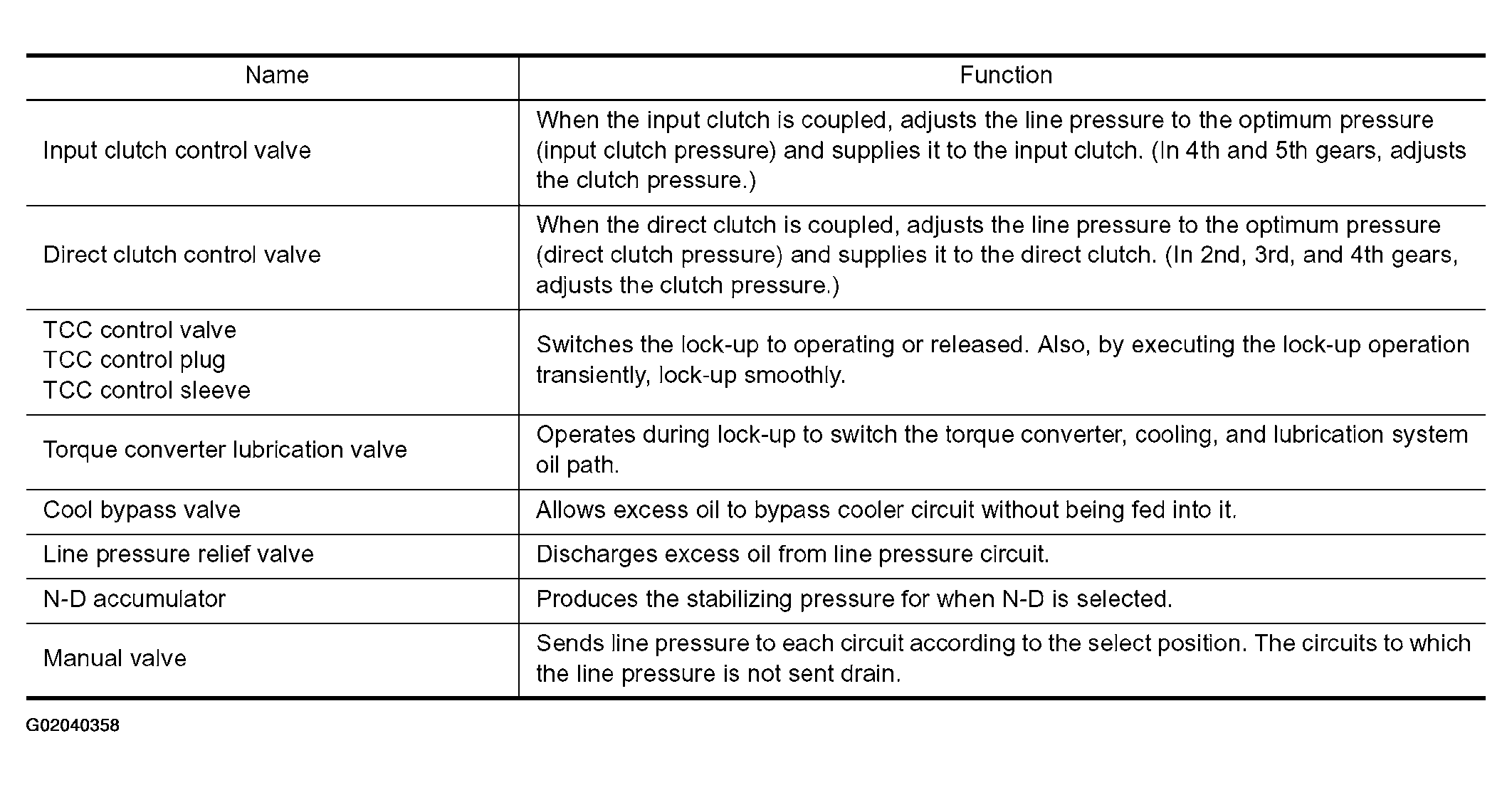

Fig 2: Control Valve Function Description Chart (2 Of 2)
G02040358Courtesy of NISSAN MOTOR CO., U.S.A.
