Shift Change System Diagram

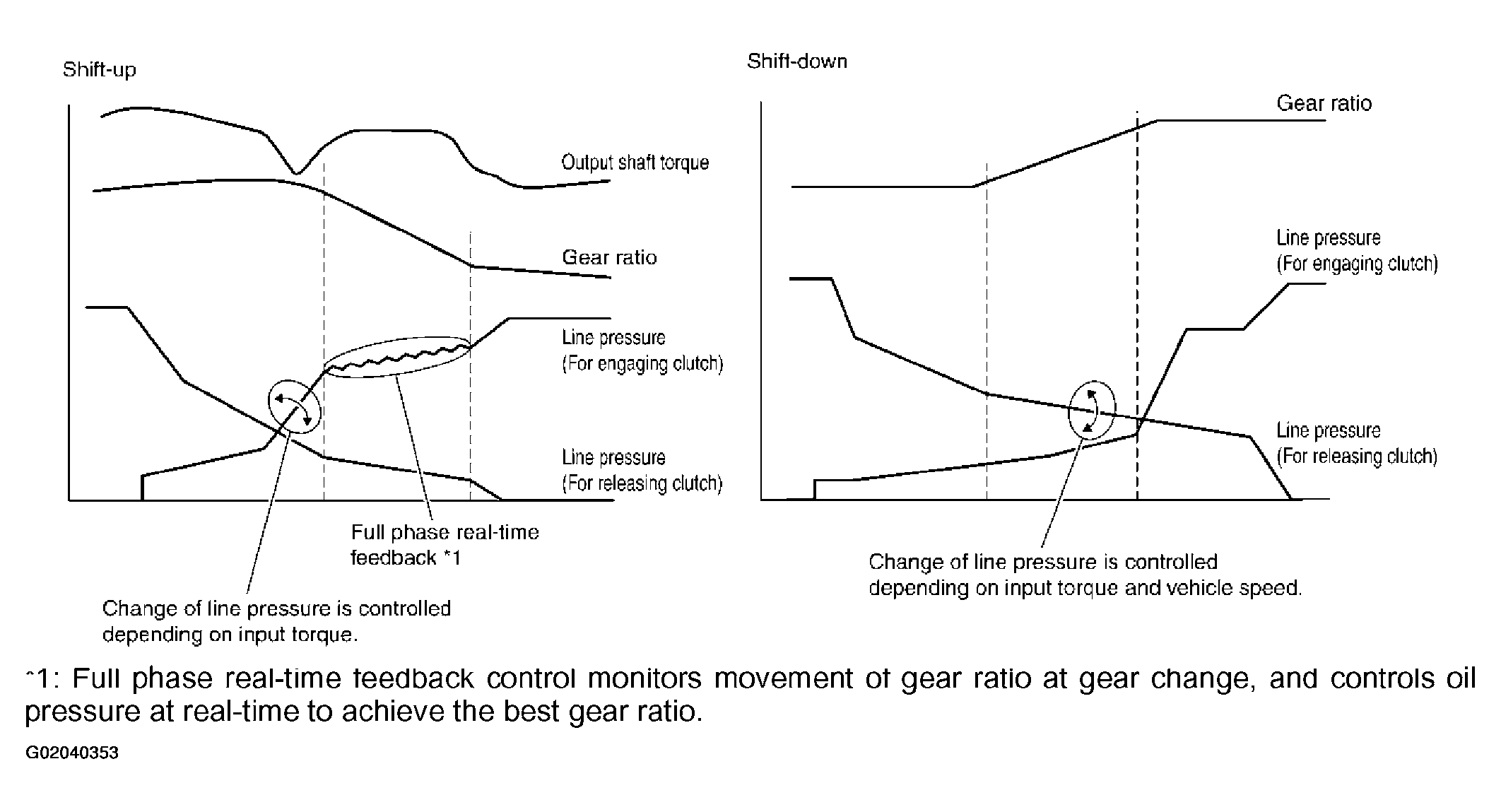

Fig 1: Shift Change System Diagram
G02040353Courtesy of NISSAN MOTOR CO., U.S.A.
