Shift Mechanism: Construction

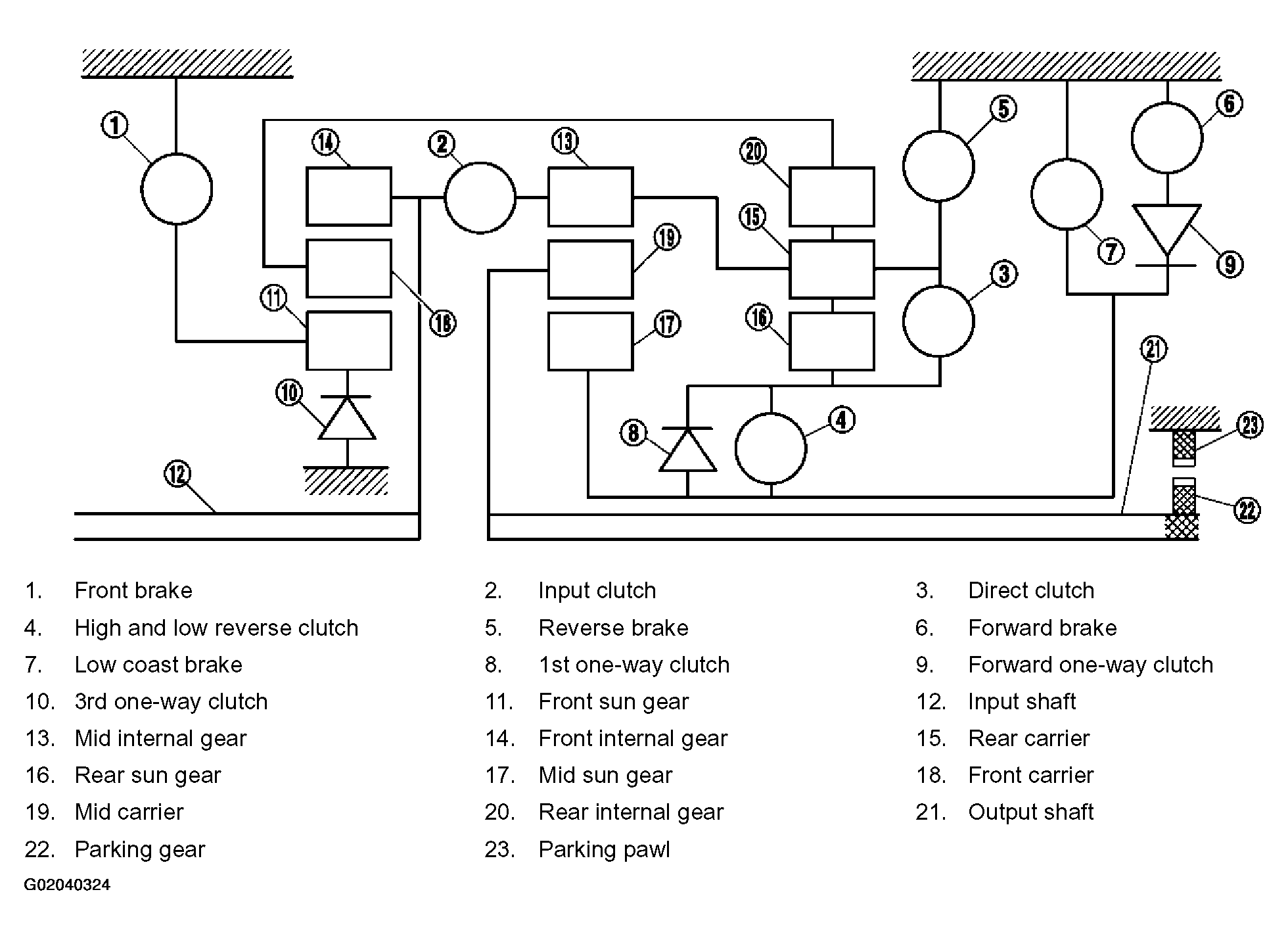

Fig 1: Automatic Transmission Control Shift Mechanism Construction Layout
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
