Key Switch
Check continuity between terminals of the key switch and key lock solenoid harness connector.

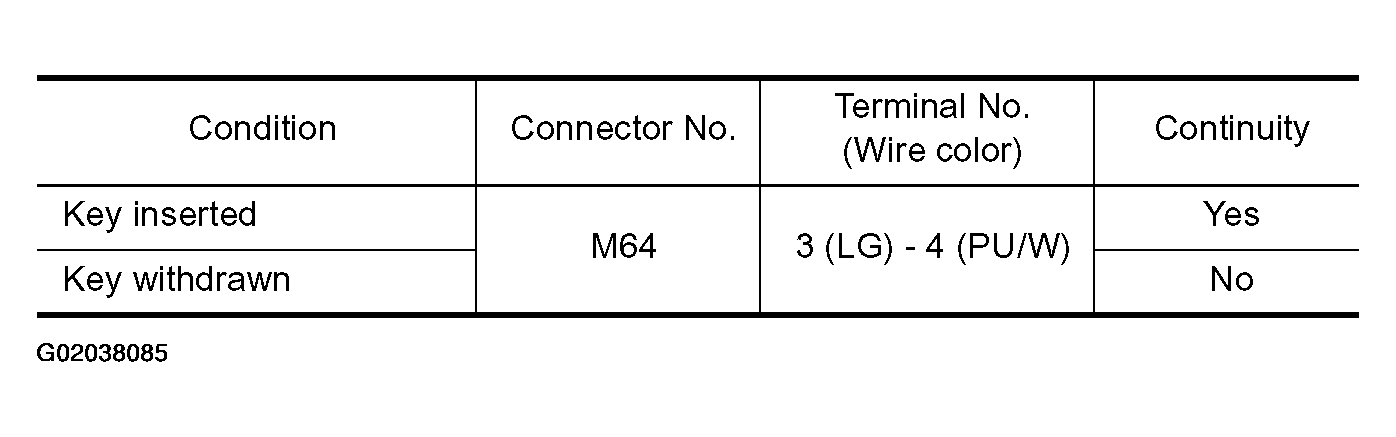

Fig 1: Identifying Key Switch And Key Lock Solenoid Harness Connector Table
Courtesy of NISSAN MOTOR CO., U.S.A.

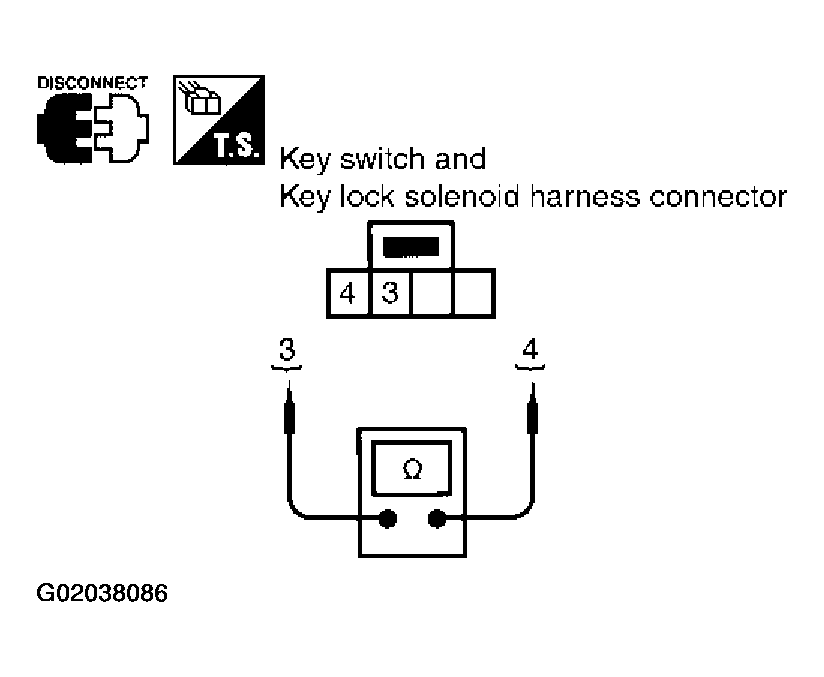

Fig 2: Checking Key Switch And Key Lock Solenoid Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
