Total End Play

Measure clearance between front sun gear and needle bearing for oil pump cover.
Select proper thickness of bearing race so that end play is within specifications.

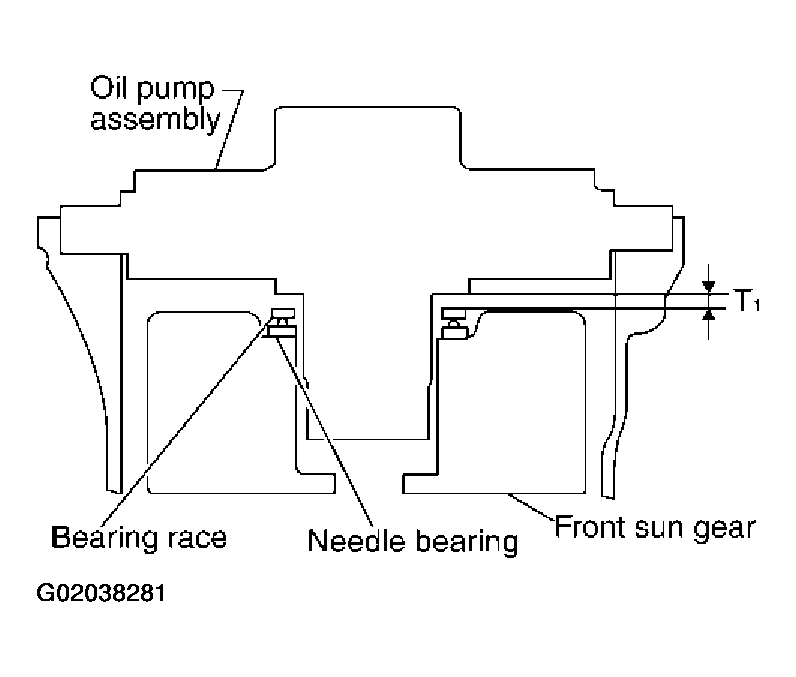

Fig 1: Measuring Clearance Between Front Sun Gear And Needle Bearing For Oil Pump Cover
Courtesy of NISSAN MOTOR CO., U.S.A.

Measure dimensions "K" and "L" and then calculate dimension "J".

Fig 2: Measuring Dimensions K And L Then Calculate Dimension J
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Measure dimension "K".

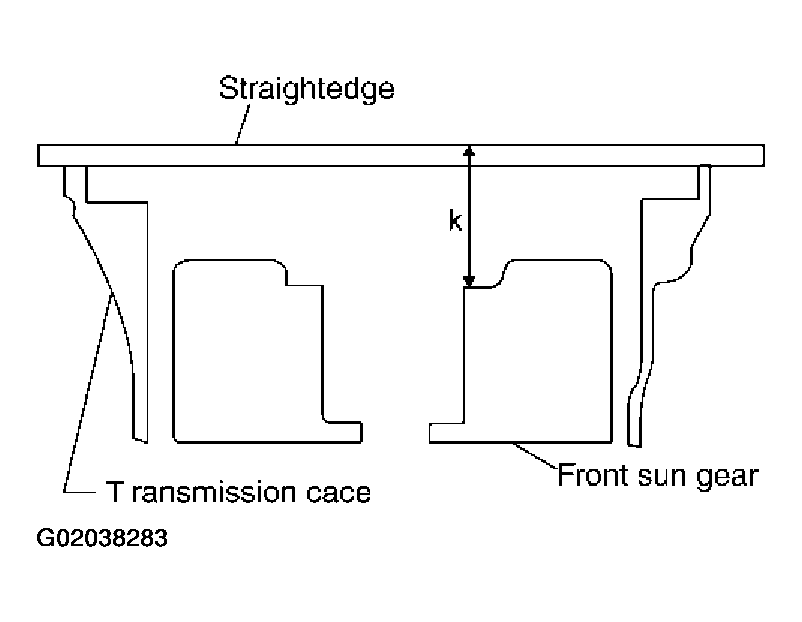

  Fig 3: Measuring Dimension Of K In Transmission Case And Front Sun Gear
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Measure dimension "L".
3. Calculate dimension "J".
  1. "J": Distance between oil pump fitting surface of transmission case and needle bearing mating surface of front sun gear.
    1. J = K-L

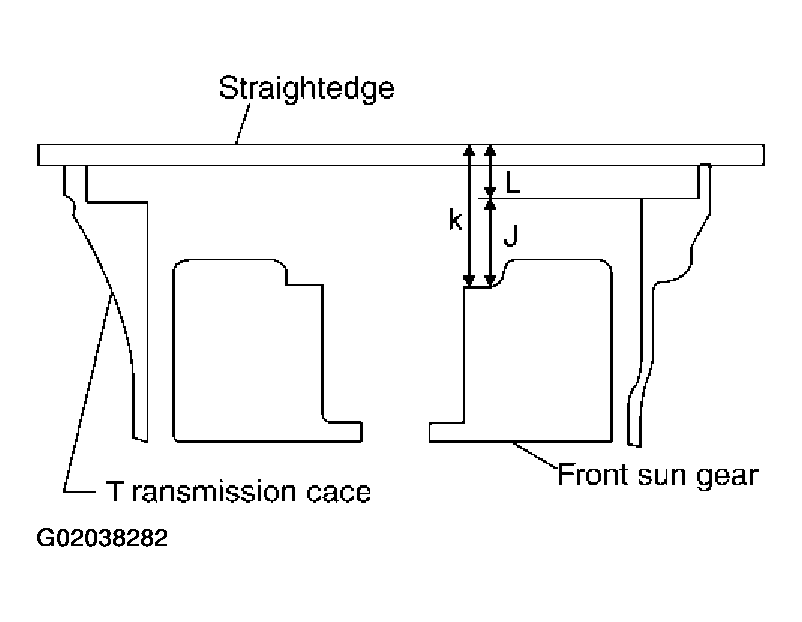

  Fig 4: Measuring Dimension L In Transmission Case And Front Sun Gear
  Courtesy of NISSAN MOTOR CO., U.S.A.
Measure dimensions "M1" and "M2" and then calculate dimension "M".

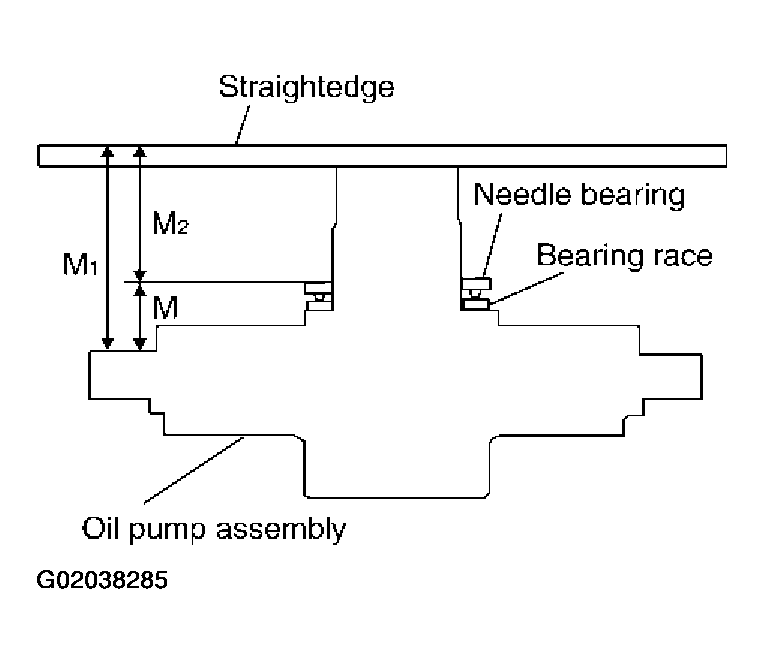

Fig 5: Measuring Dimensions,M1 And M2 And Then Calculate Dimension
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Place bearing race and needle bearing on oil pump assembly.

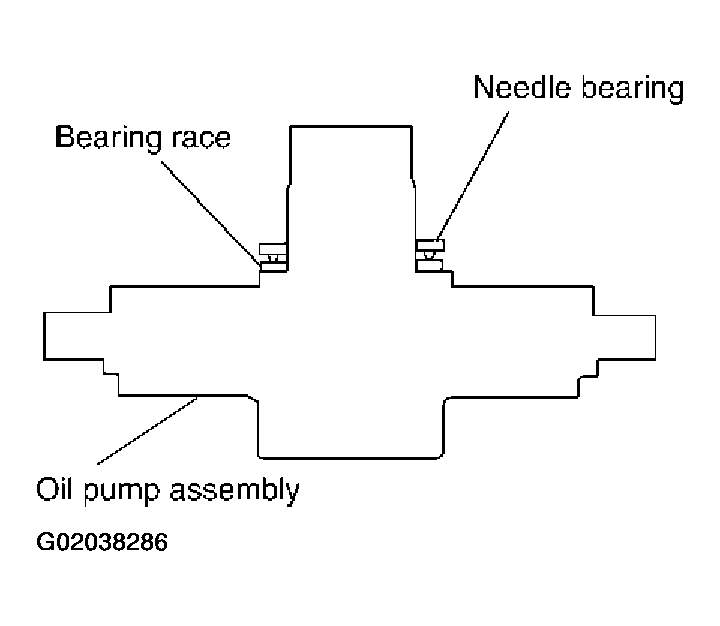

  Fig 6: Identifying Bearing Race And Needle Bearing On Oil Pump Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Measure thickness of straightedge "M1".

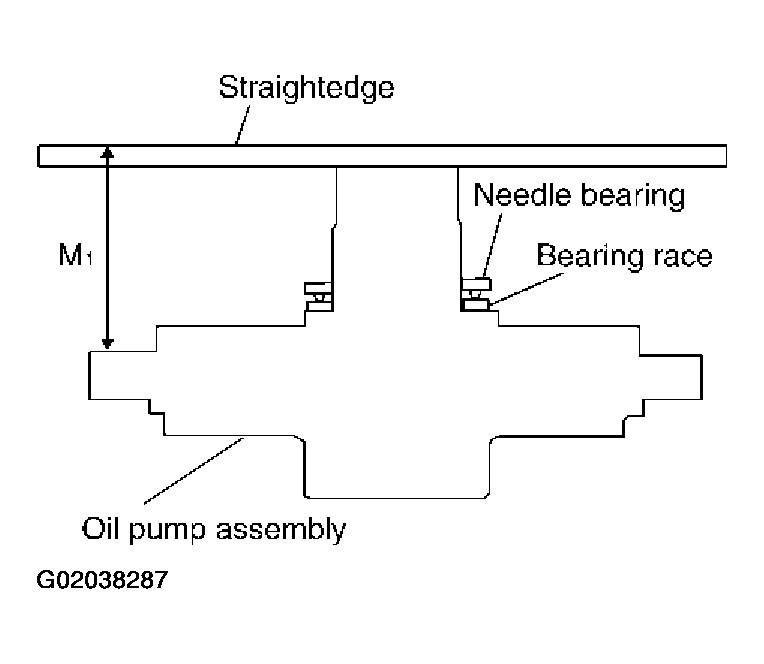

  Fig 7: Measuring Thickness Of Straightedge,M1
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Measure thickness of straightedge "M2".
4. Calculate dimension "M".
  1. "M": Distance between trans mission case fitting surface of oil pump and needle bearing on oil pump.
    1. M = M1 - M2

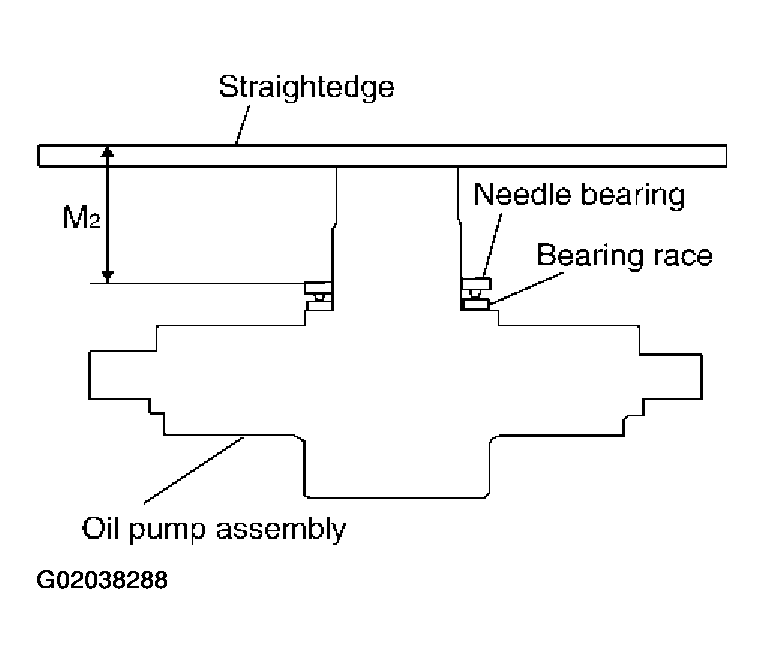

  Fig 8: Measuring Thickness Of Straightedge M2
  Courtesy of NISSAN MOTOR CO., U.S.A.
Adjust total end play "T1".
1. T1 =J-M
  1. Total end play "T1":
    1. 0.25 - 0.55 mm (0.0098 - 0.0217 in)
- Select proper thickness of bearing race so that total end play is within specifications.
  Bearing races: Refer to " BEARING RACE FOR ADJUSTING TOTAL END PLAY ".
