Home >> Infiniti >> 2003 >> Q45 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Shift Control System >> Control Device Removal and Installation >> Notes

Control Device Removal and Installation: Notes

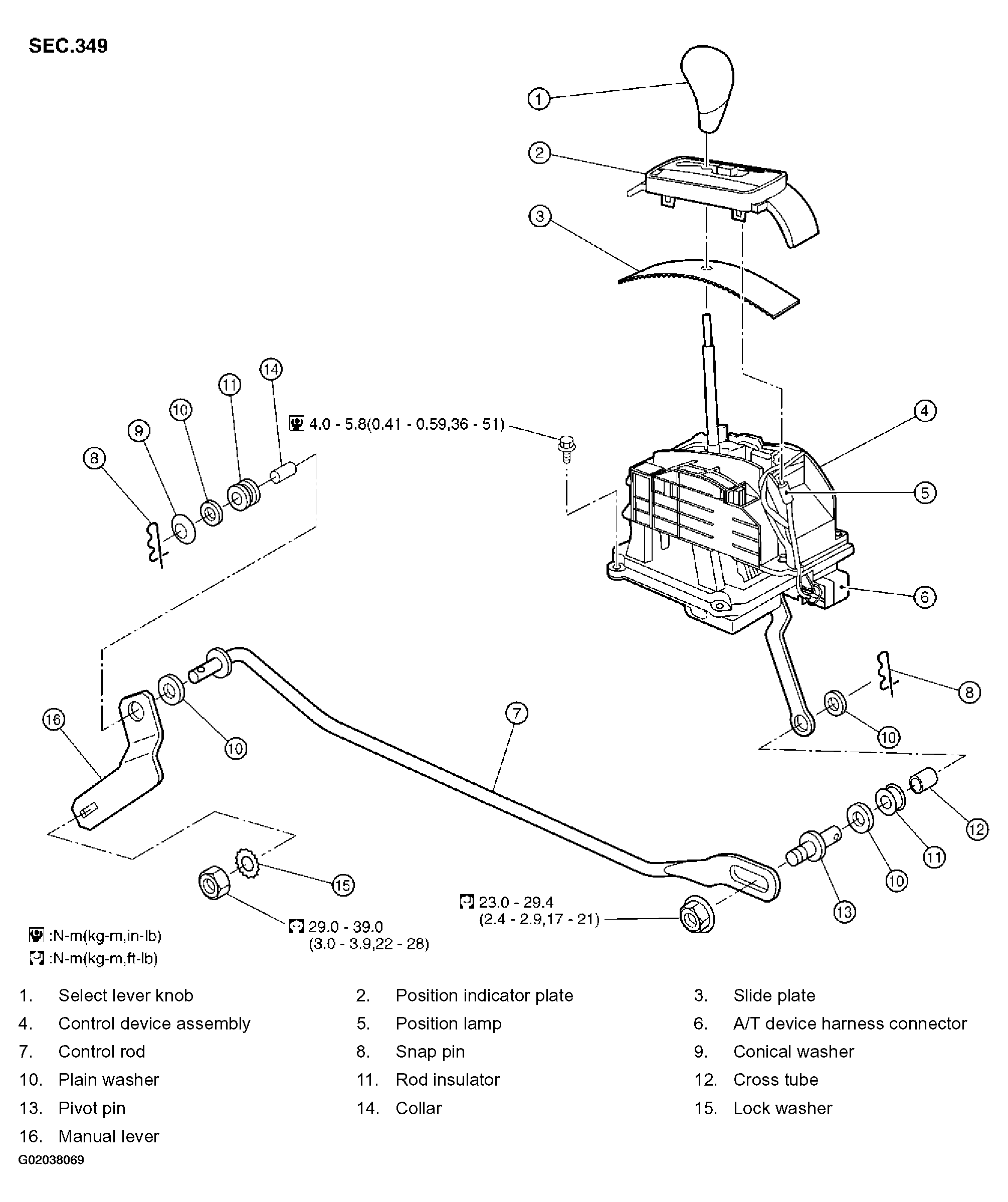

Fig 1: Exploded View Of Shift Control System

G02038069

Courtesy of NISSAN MOTOR CO., U.S.A.
