Home >> Infiniti >> 2003 >> QX4 RWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Keyless Entry System >> Remote Keyless Entry System >> CONSULT-II Application Items >> "Multi Remote ENT" >> Data Monitor

Data Monitor

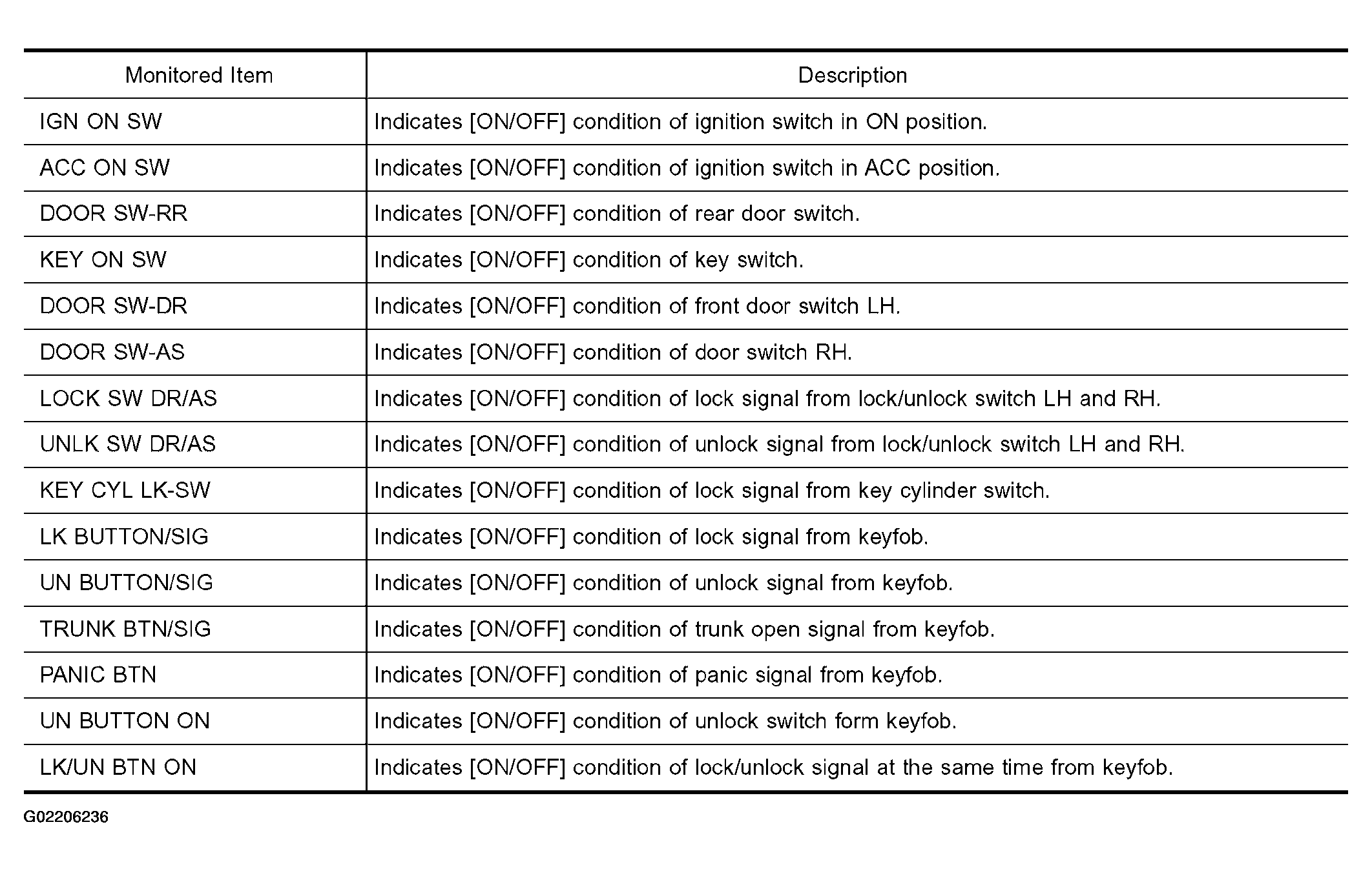

Fig 1: Multi Remote ENT Data Monitor Table
G02206236Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Even though TRUNK BTN/SIG is actually displayed on the CONSULT-II screen, it is not equipped, therefore, they cannot be activated.
