Transfer Motor Relay

  1. Apply battery voltage directly to terminals 3 and 4.
  2. Check continuity between terminals 1 and 2.

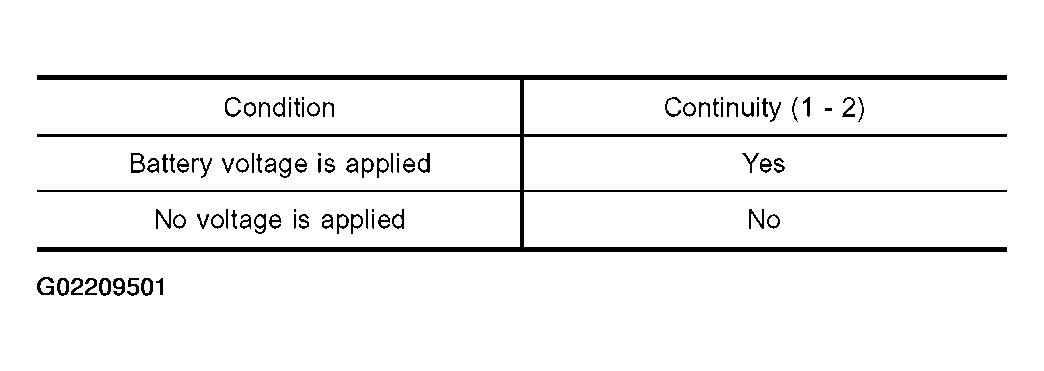

    Fig 1: Displaying Transfer Motor Relay Terminal Continuity Table
    G02209501Courtesy of NISSAN MOTOR CO., U.S.A.

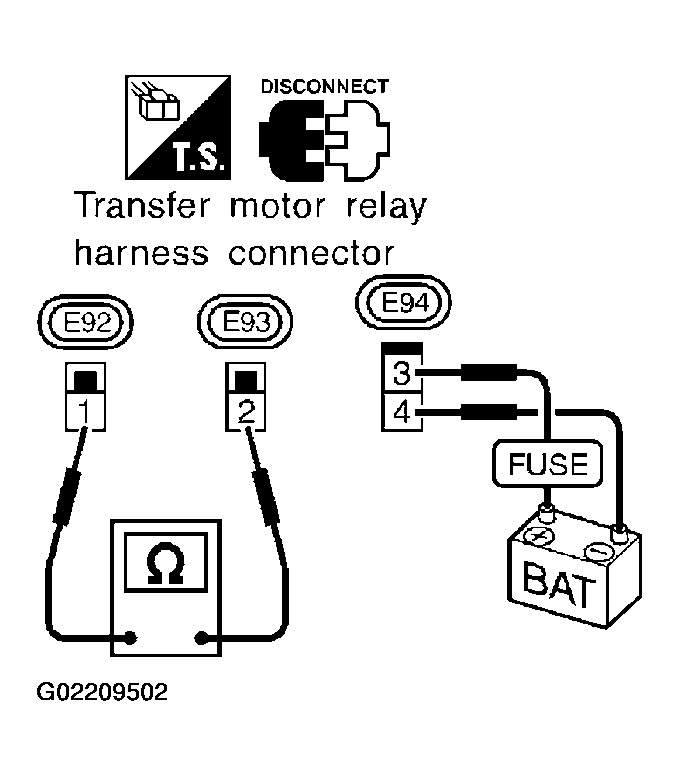

    Fig 2: Checking Transfer Motor Relay Harness Connector
    G02209502Courtesy of NISSAN MOTOR CO., U.S.A.
