Transfer Motor

Apply battery voltage directly to transfer motor assembly sub-harness connector located on rear-right of transfer unit. (Positive: Terminal 14, Negative: Terminal 15)

Transfer Motor should operate.

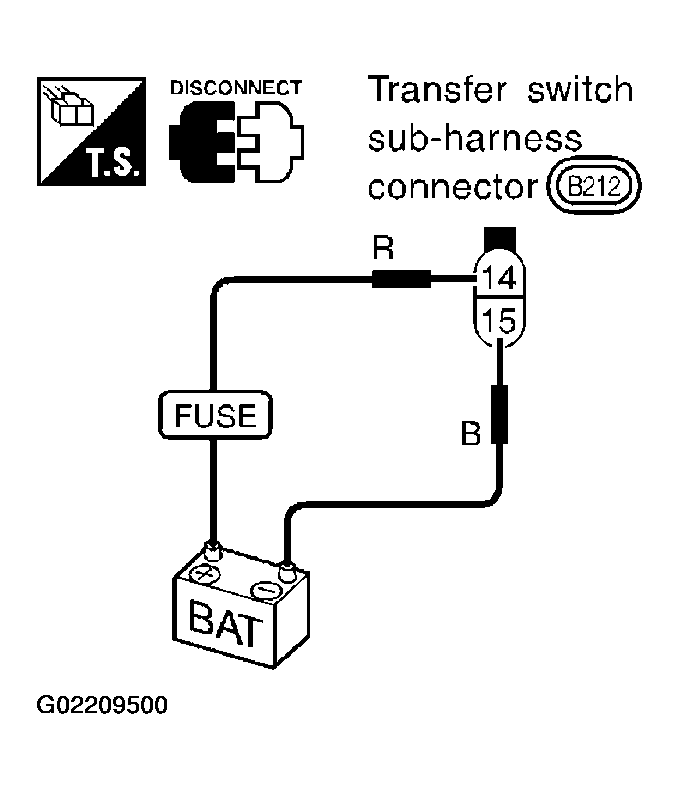

Fig 1: Checking Transfer Motor

Courtesy of NISSAN MOTOR CO., U.S.A.
