lemon-mirror
:
Home
>>
Infiniti
>>
2004
>>
FX35 AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Remote Keyless Entry System
>>
Remote Keyless Entry System
>>
Consult-II Function
>>
CONSULT-II Application Items
>>
Data Monitor
Data Monitor

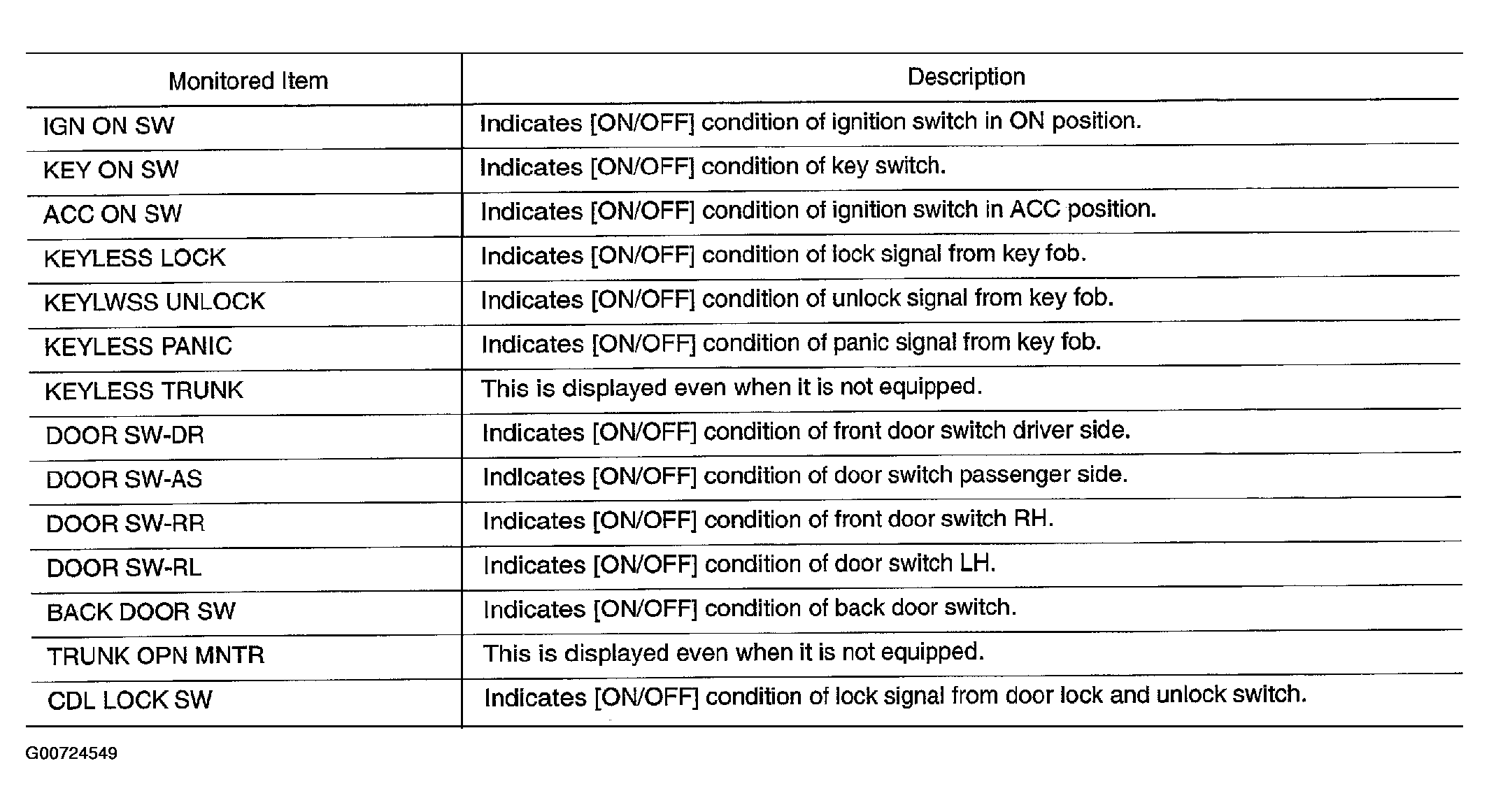

Fig 1: CONSULT-II Application Items Description Table (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

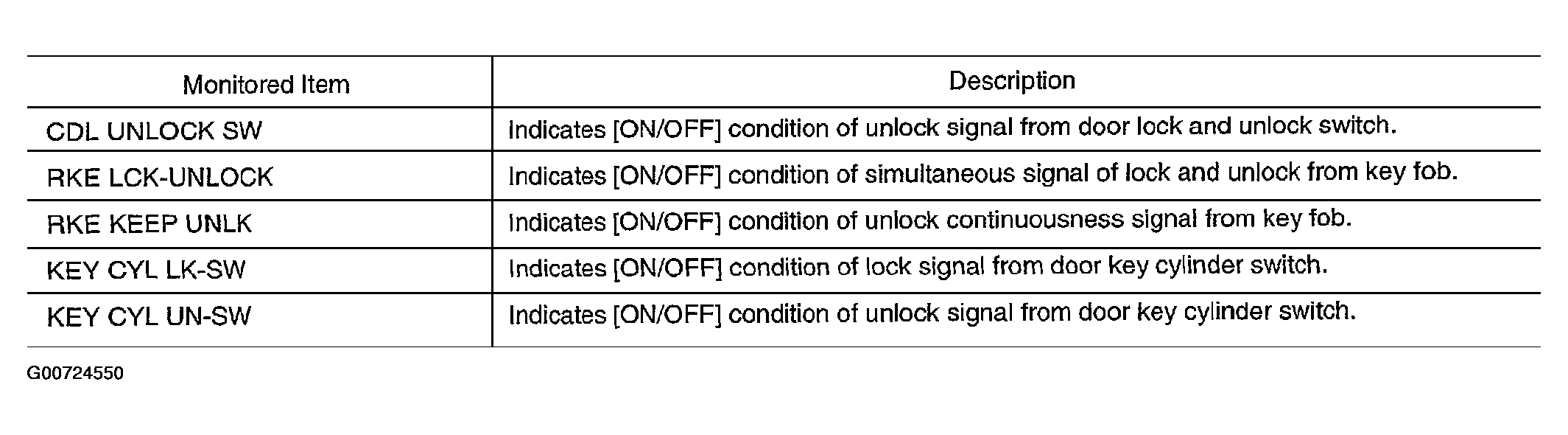

Fig 2: CONSULT-II Application Items Description Table (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
