Warning Indications

When BCM receives warning signal from some control units or sensors, then combination meter warning lamp is illuminated.

Then BCM sends warning signal to display unit warning indications on the screen.

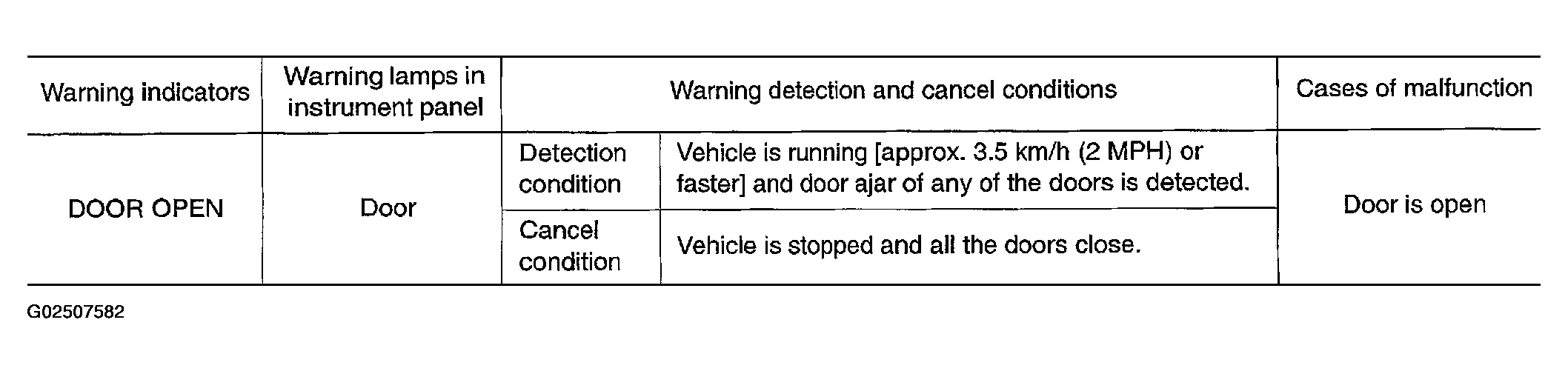

Fig 1: Displaying Warning Indicators Table

Courtesy of NISSAN MOTOR CO., U.S.A.
