Home >> Infiniti >> 2004 >> FX35 RWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Keyless Entry System >> Remote Keyless Entry System >> Terminals And Reference Value For IPDM E/R

Terminals And Reference Value For IPDM E/R

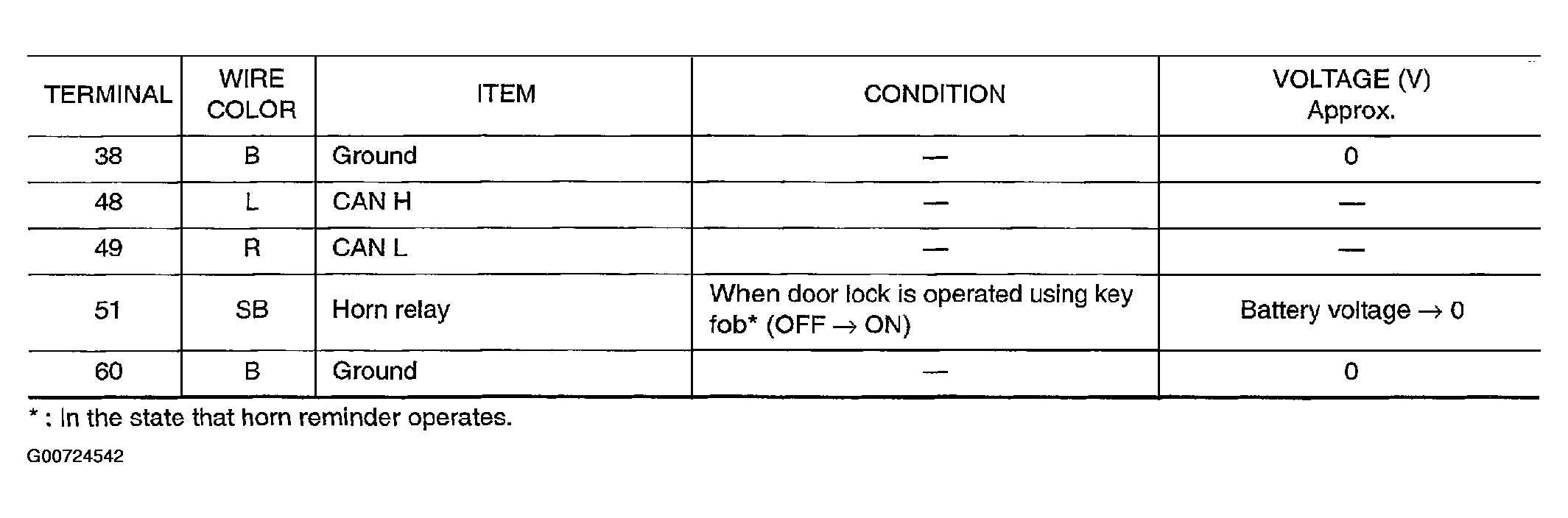

Fig 1: Terminals And Reference Value Table For IPDM E/R

G00724542

Courtesy of NISSAN MOTOR CO., U.S.A.
