Removal And Installation: Notes

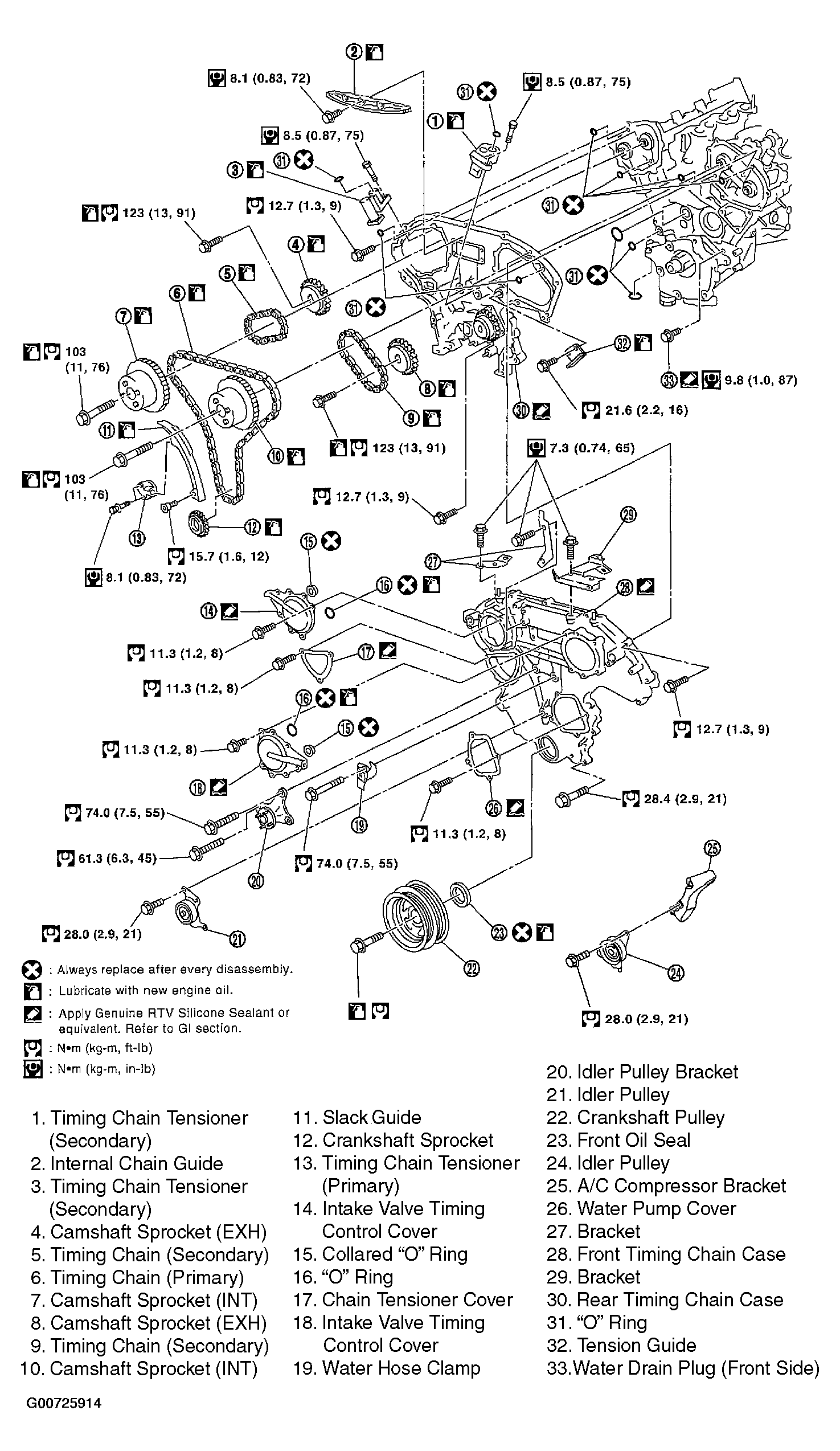

Fig 1: Identifying Timing Chain & Related Components

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

This section describes procedures for removing/installing front timing chain case and timing chain related parts, and rear timing chain case, when oil pan (upper) needs to be removed/installed for engine overhaul, etc.
To remove/install front timing chain case, timing chain, and its related parts without removing oil pan (upper), refer to FRONT TIMING CHAIN CASE .
