Home >> Infiniti >> 2004 >> FX45 >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Body Control Module >> BCM (Body Control Module) >> Schematic

BCM (Body Control Module): Schematic

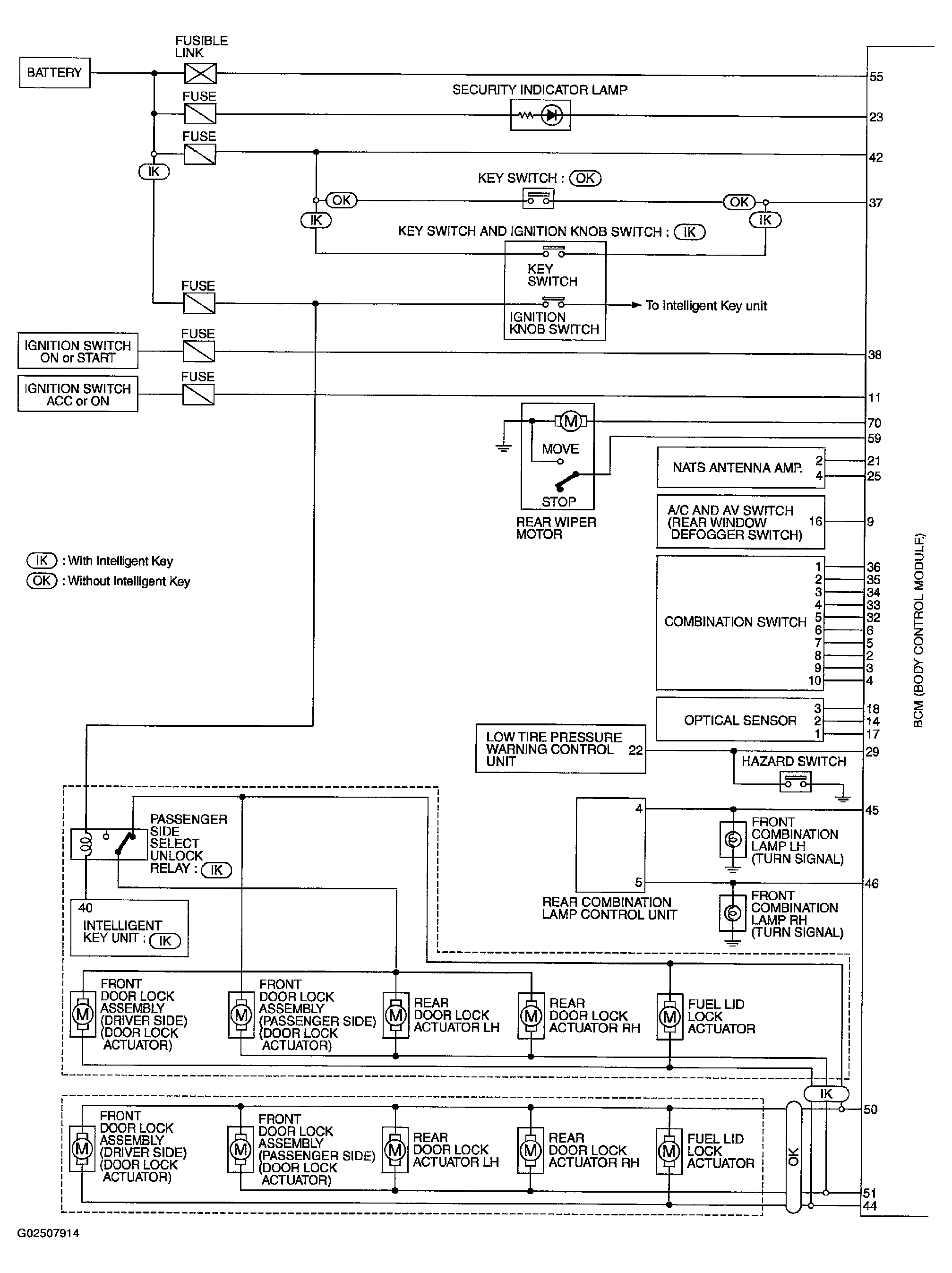

Fig 1: Schematic BCM (1 Of 2)

G02507914

Courtesy of NISSAN MOTOR CO., U.S.A.

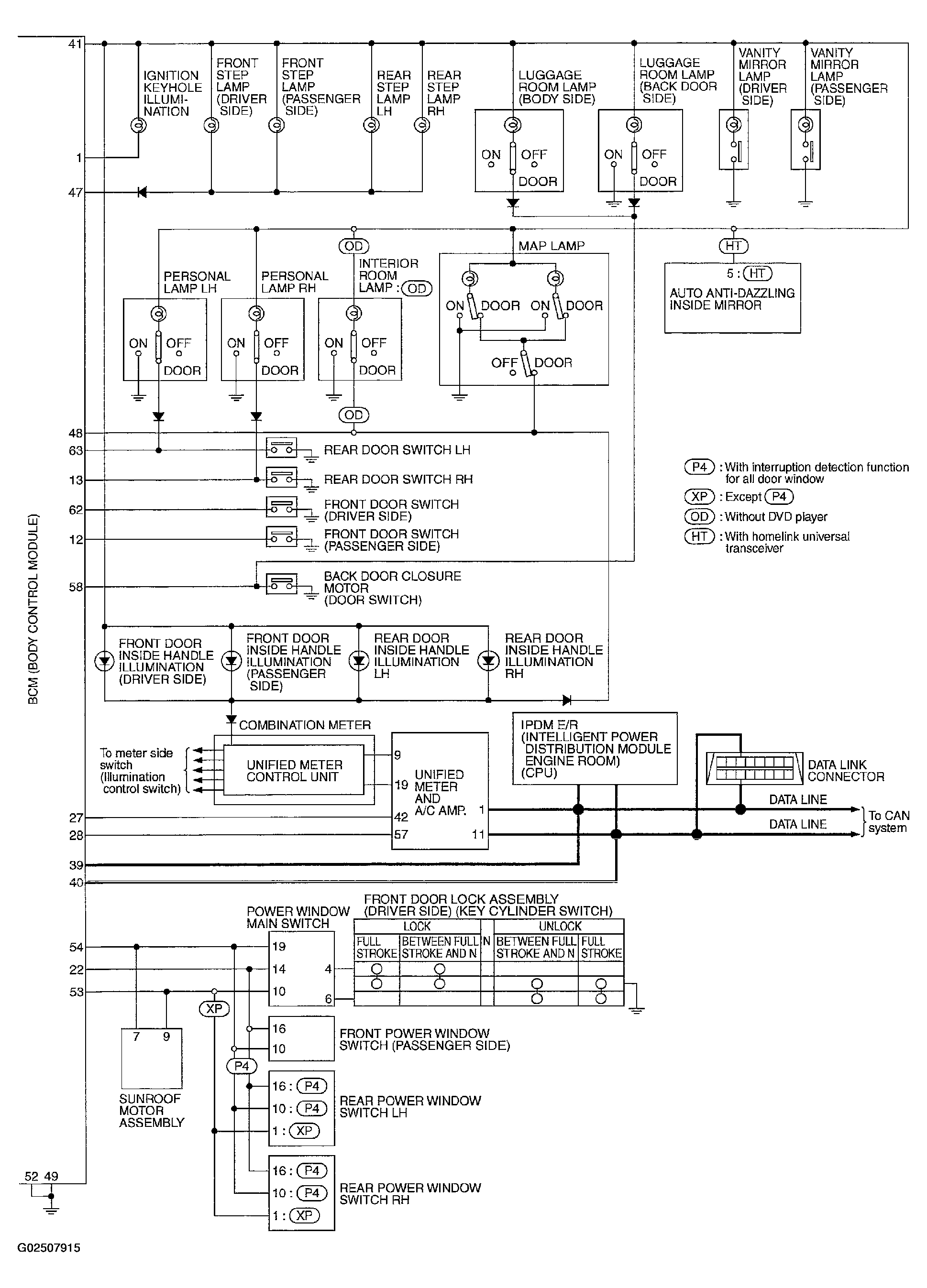

Fig 2: Schematic BCM (2 Of 2)

G02507915

Courtesy of NISSAN MOTOR CO., U.S.A.
