Terminals And Reference Values For Driver Seat Control Unit
Terminals And Reference Values For Driver Seat Control Unit

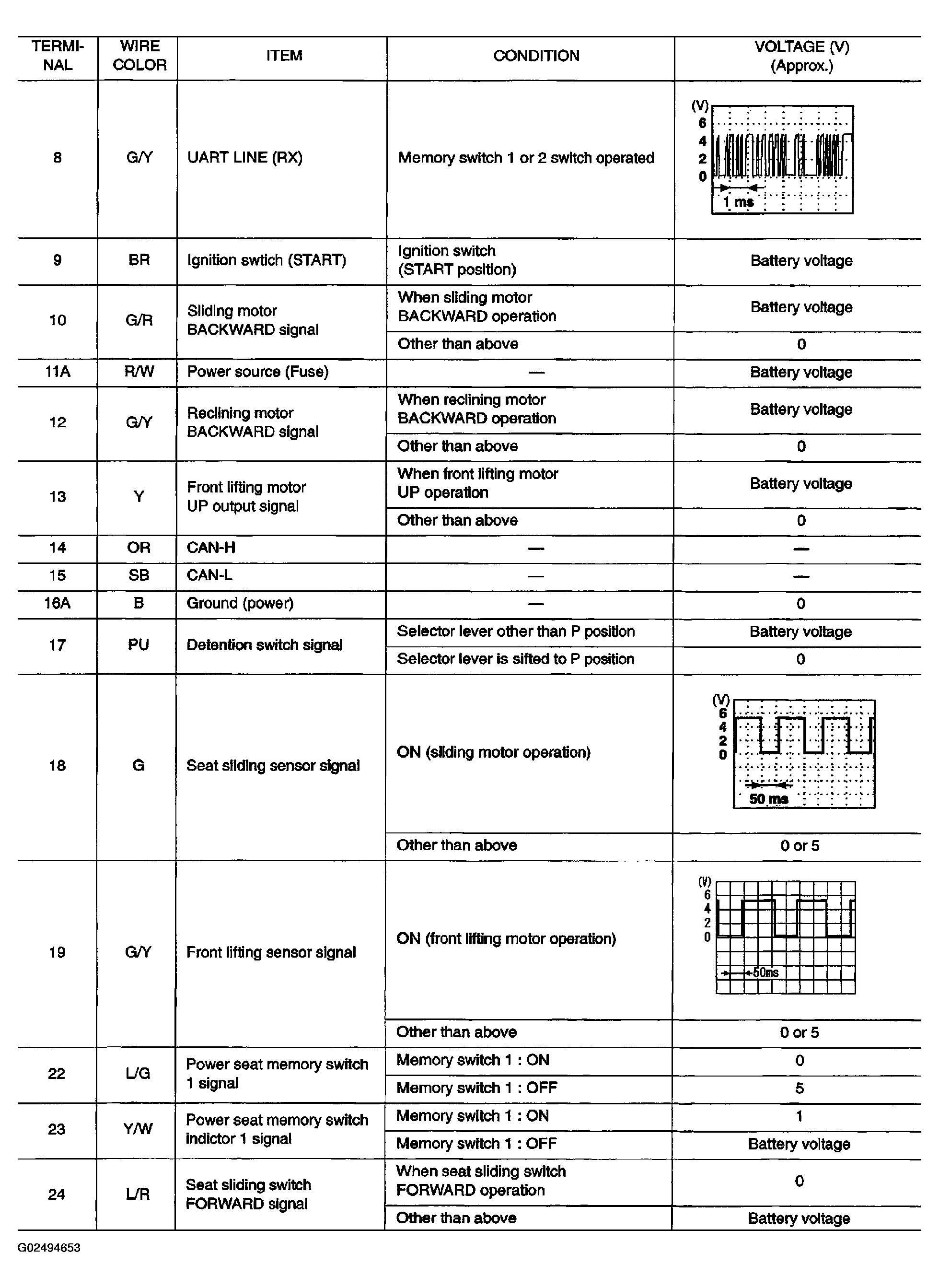

Fig 1: Displaying Terminals & Reference Values For Driver Seat Control Unit (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Displaying Terminals & Reference Values For Driver Seat Control Unit (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

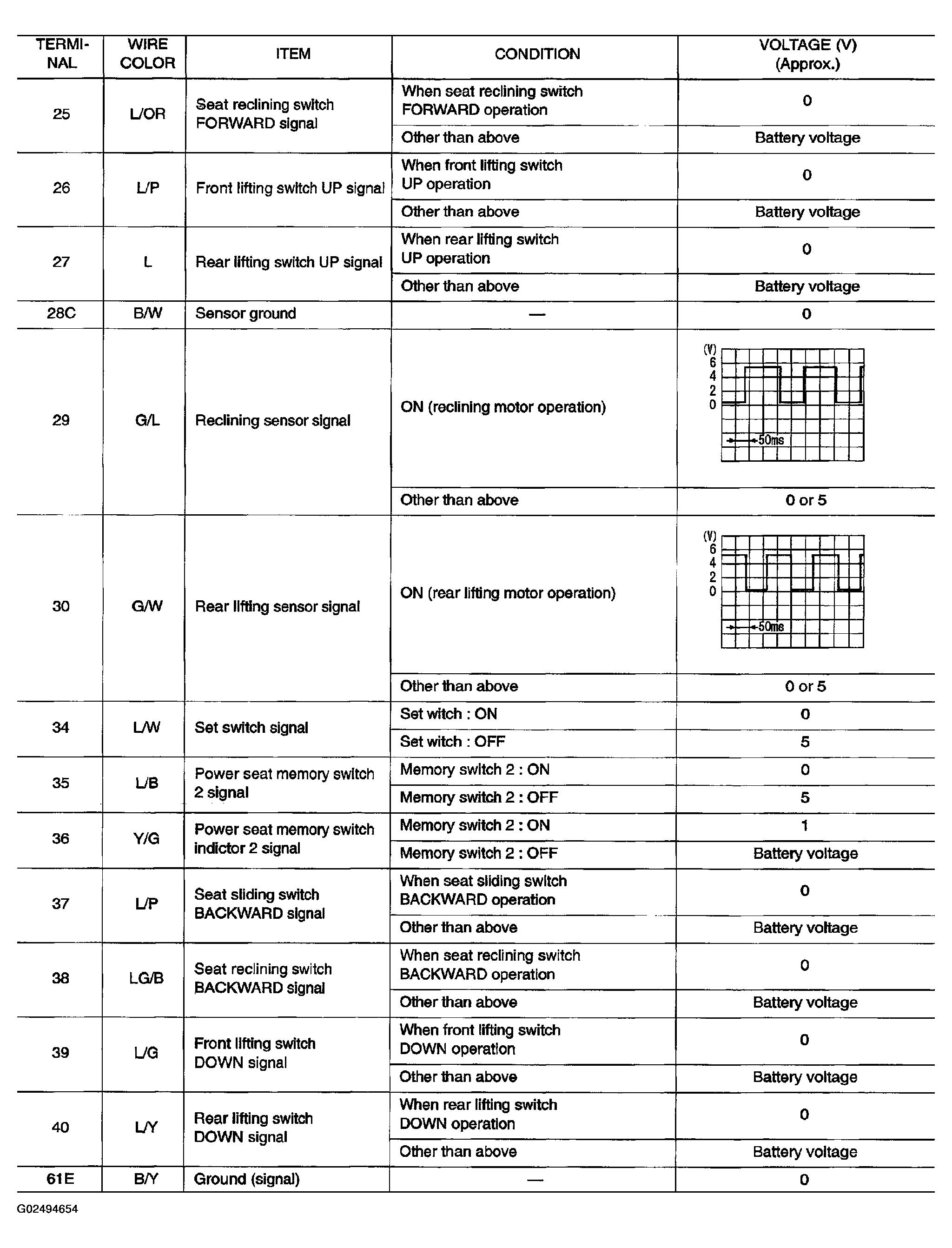

Fig 3: Displaying Terminals & Reference Values For Driver Seat Control Unit (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
