Removal And Installation: Removal

  1. Remove spiral cable assembly. Refer to SPIRAL CABLE .
  2. Remove steering angle sensor from spiral cable assembly.

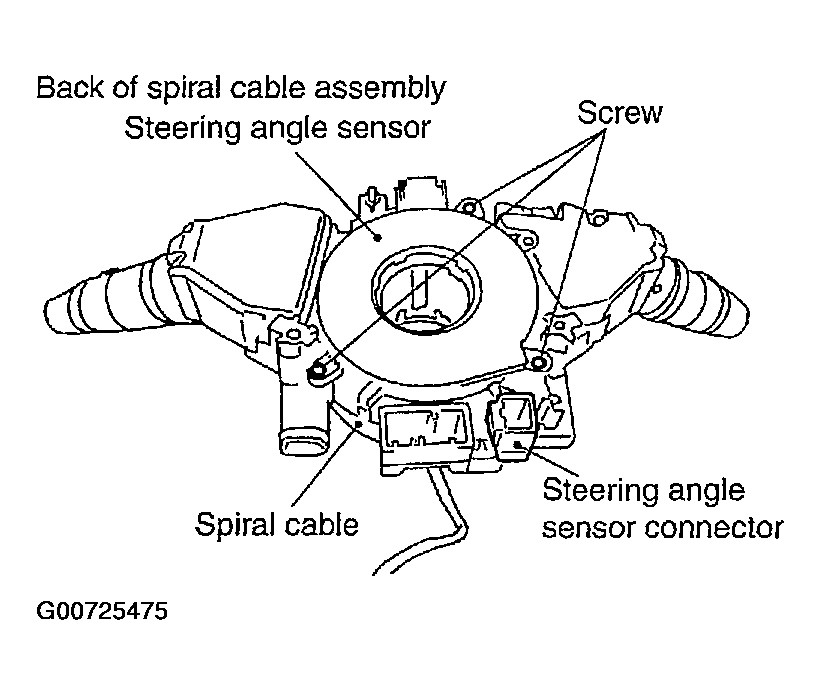

    Fig 1: Displaying Steering Angle Sensor Connector
    G00725475Courtesy of NISSAN MOTOR CO., U.S.A.
