System Description
>>
System Diagram
System Diagram

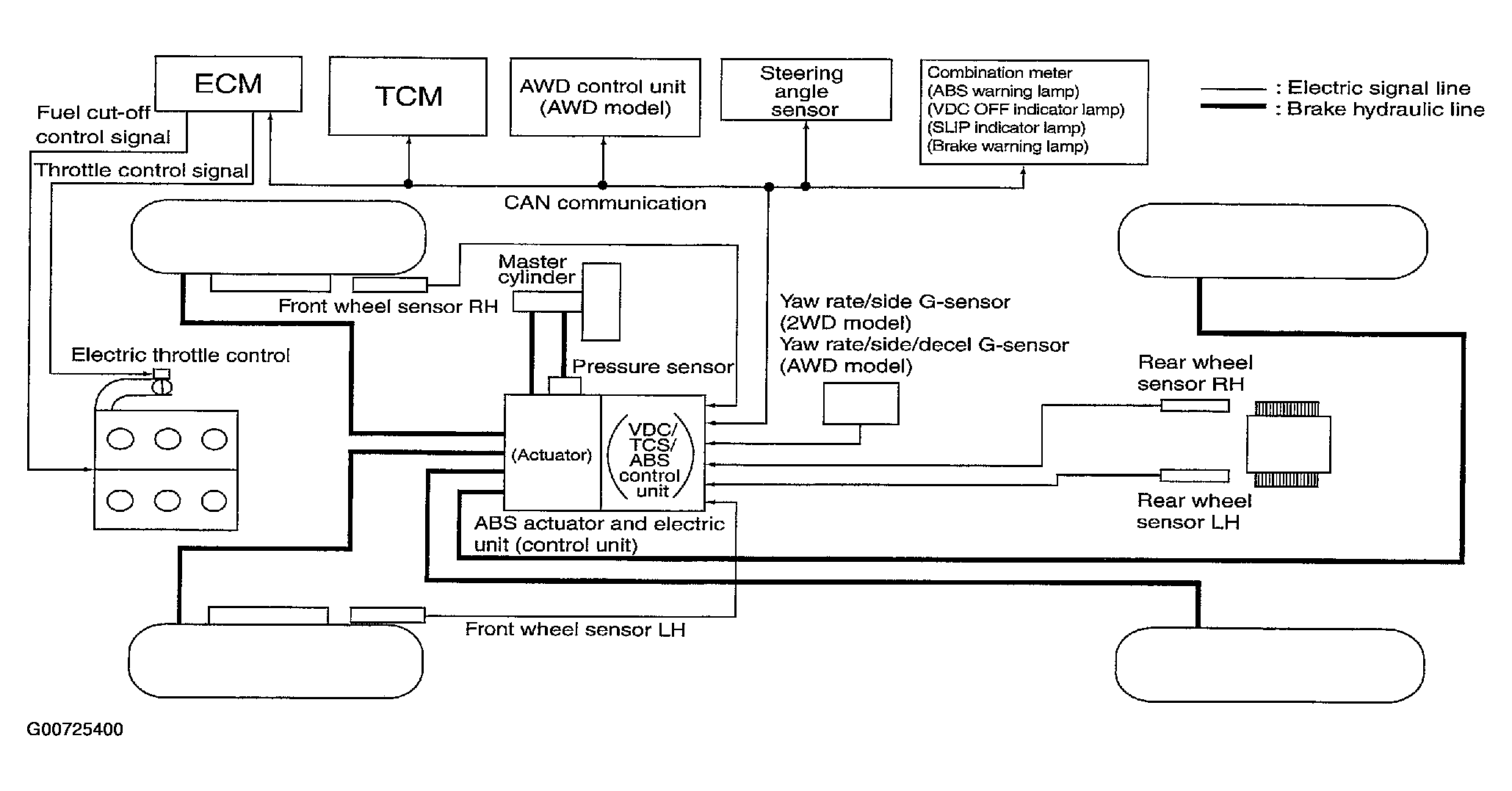

Fig 1: Identifying Brake Control System Components & Circuits
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
