CAN Communication System Inspection

  1. Check CAN Communication
    1. Start engine.
    2. Select CAN DIAG SUPPORT MNTR in DATA MONITOR mode for METER A/C AMP with CONSULT-II.
    3. Print out CONSULT-II screen.

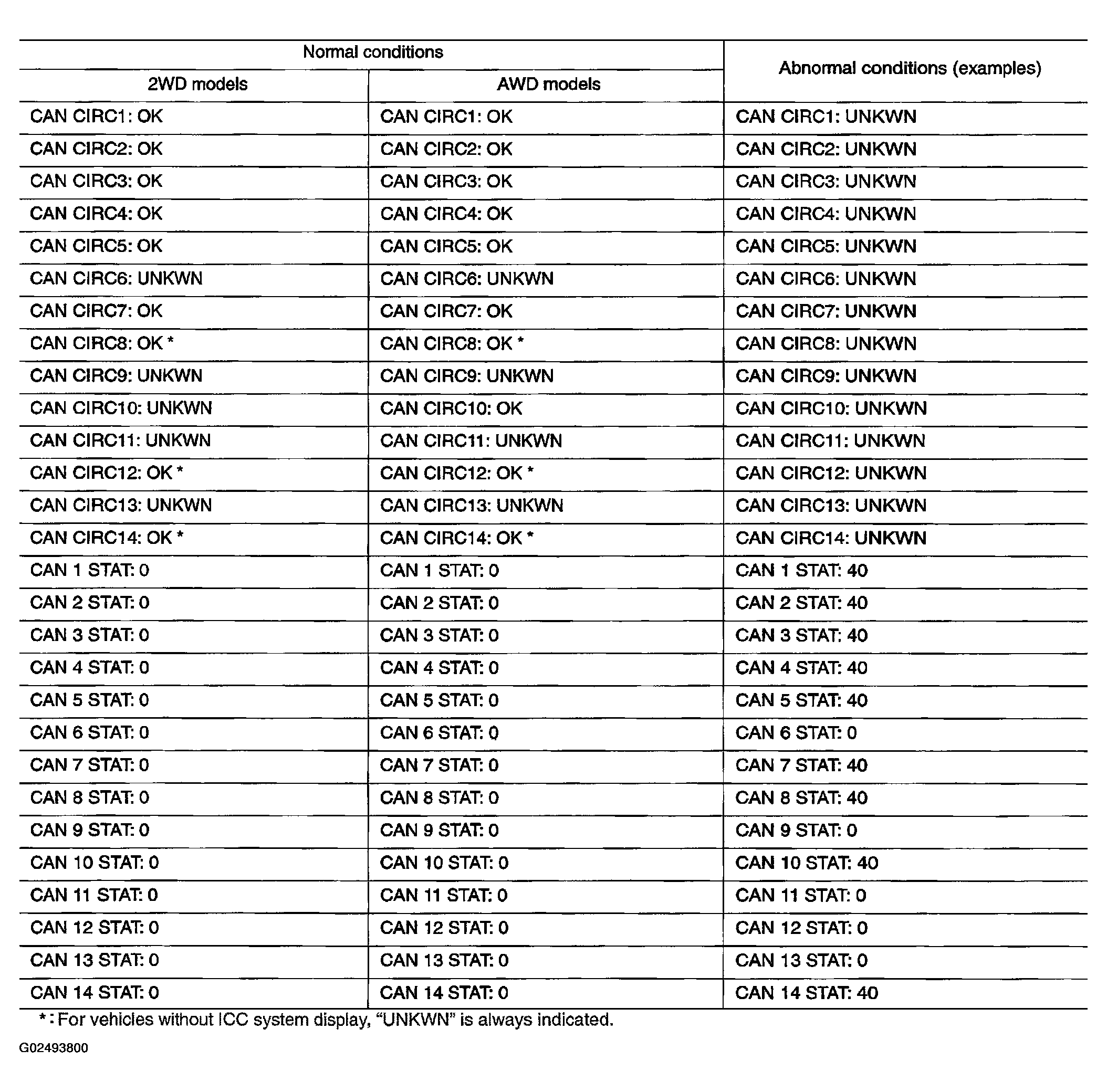

      Fig 1: CONSULT-II Screen Print Out (Example)
      G02493800Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Go to CAN system. Refer to CAN SYSTEM PRECAUTIONS .
