Check Fuel Level Sensor Unit (Sub)

Check resistance between terminals 1 and 2.

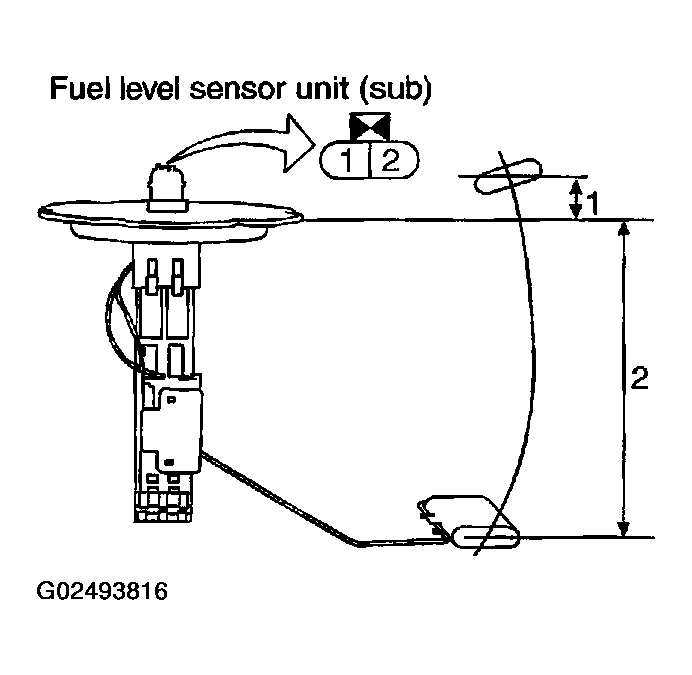

Fig 1: Testing Fuel Level Sensor Unit (Sub)

Courtesy of NISSAN MOTOR CO., U.S.A.

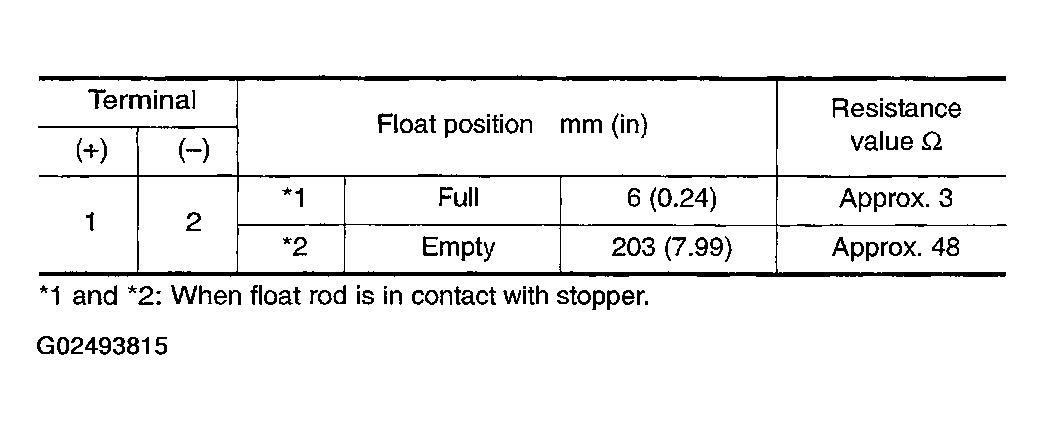

Fig 2: Fuel Level Sensor Unit (Sub) Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
