Integrated Display System: Schematic

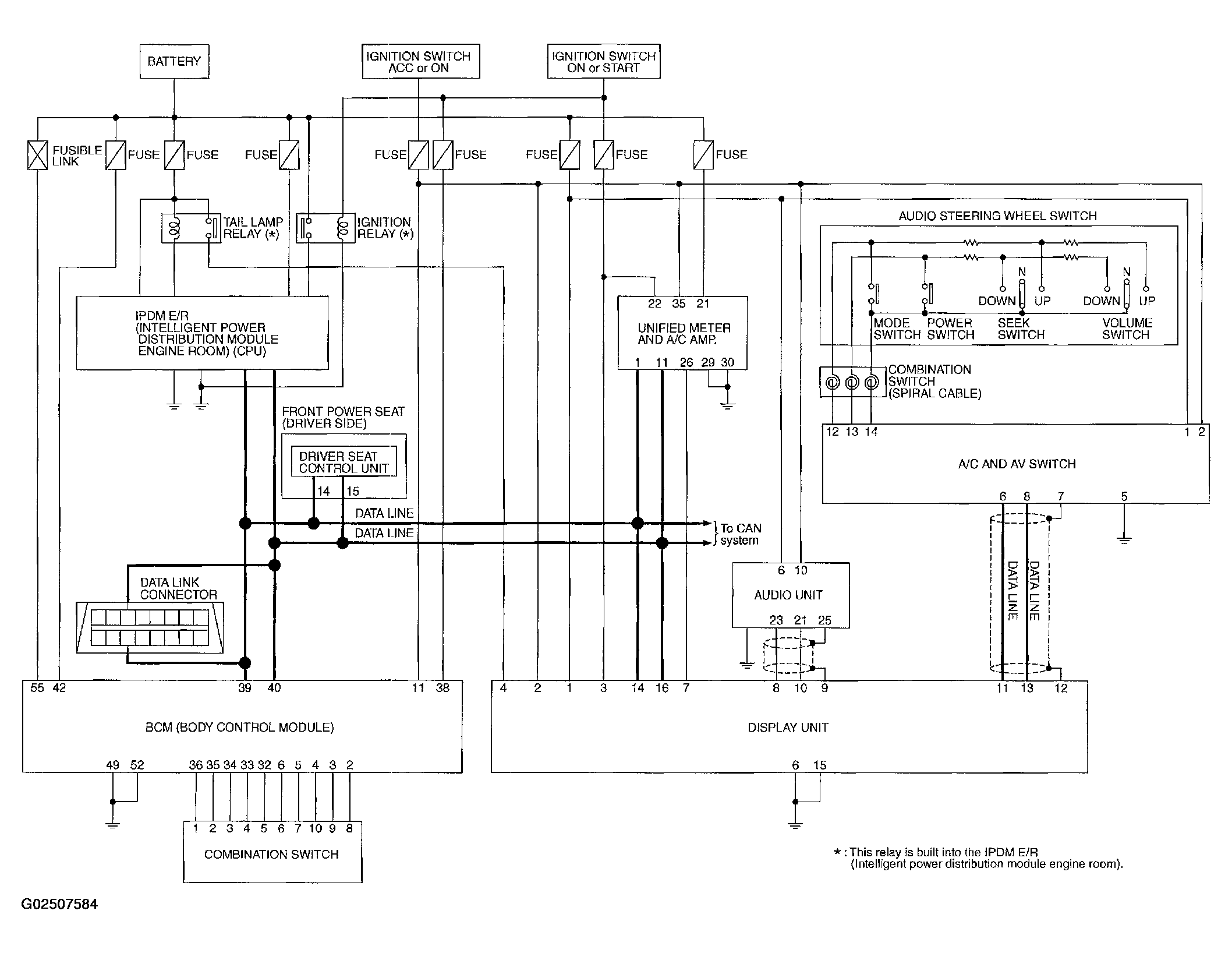

Fig 1: Identifying Integrated Display System Schematic

Courtesy of NISSAN MOTOR CO., U.S.A.

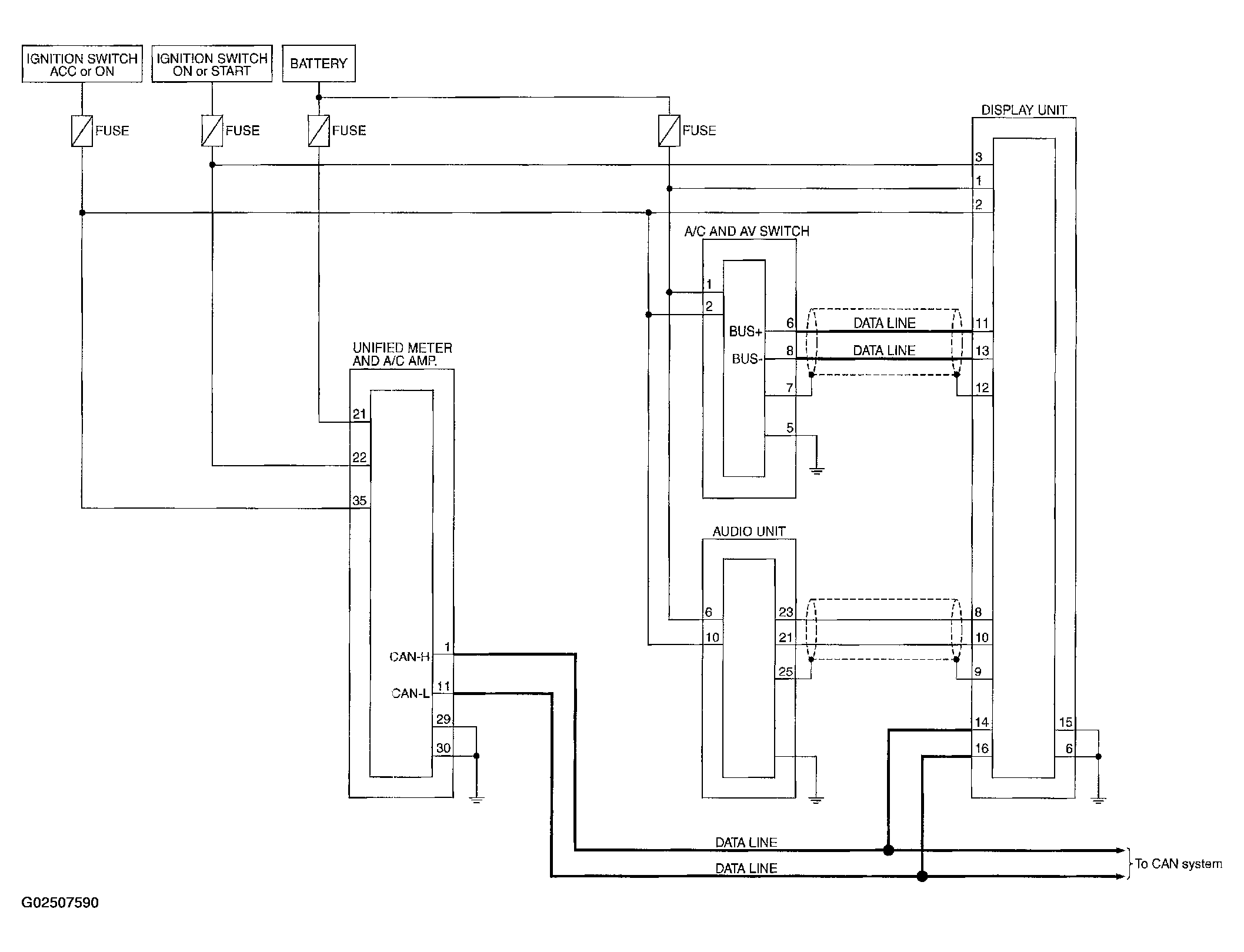

Fig 1: Identifying Integrated Display System Schematic

Courtesy of NISSAN MOTOR CO., U.S.A.
