Intake Valve Timing Control Position Sensor

  1. Disconnect intake valve timing control position sensor harness connector.
  2. Loosen the fixing bolt of the sensor.
  3. Remove the sensor. See Figure .
  4. Visually check the sensor for chipping.
  5. Check resistance as shown in Fig 2 .

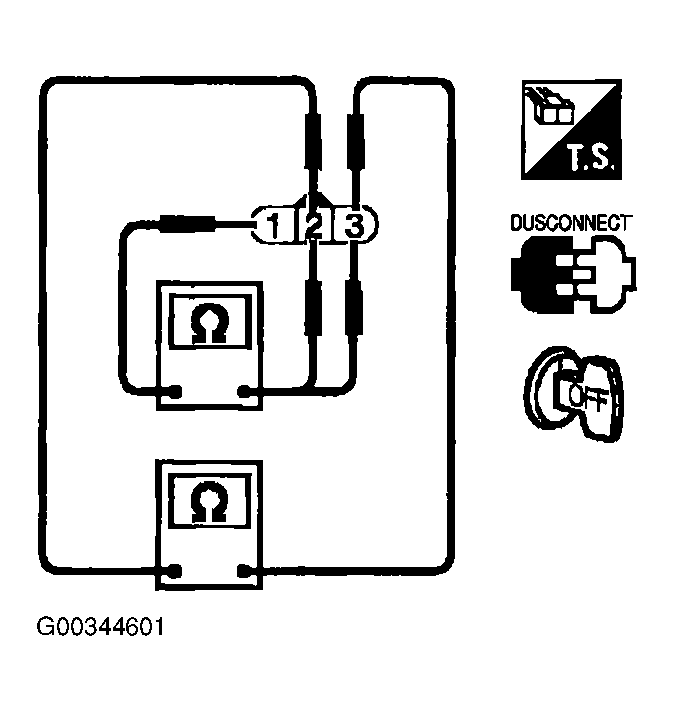

    Fig 1: Checking Intake Valve Timing Control Position Sensor Resistance
    G00344601Courtesy of NISSAN MOTOR CO., U.S.A.

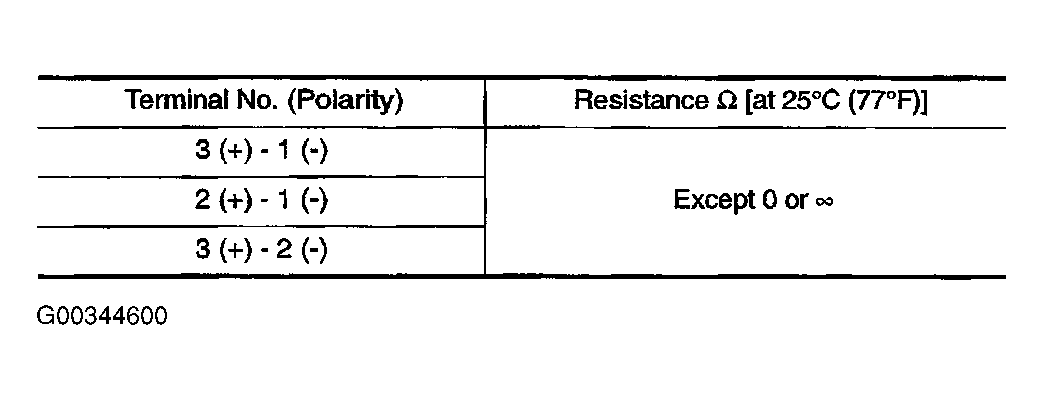

    Fig 2: Intake Valve Timing Control Position Sensor Terminal Resistance Specifications
    G00344600Courtesy of NISSAN MOTOR CO., U.S.A.
  6. If NG, replace intake valve timing control position sensor.
