Intake Valve Timing Control Position Sensor

  1. Disconnect intake valve timing control position sensor harness connector.
  2. Loosen the fixing bolt of the sensor.

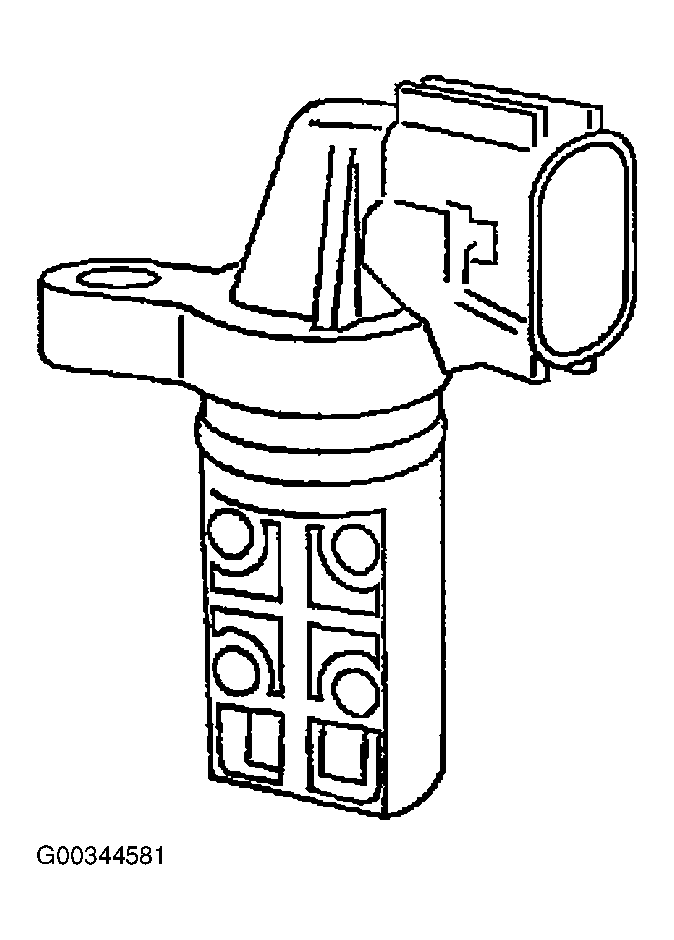

  3. Remove the sensor. See Figure .
  4. Visually check the sensor for chipping.
  5. Check resistance as shown below.

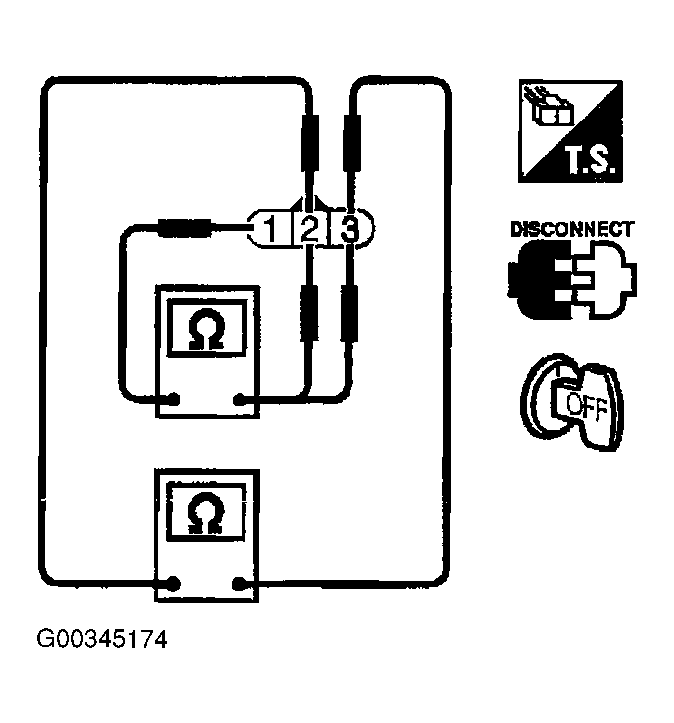

    Fig 1: Testing Intake Valve Timing Control Position Sensor
    G00345174Courtesy of NISSAN MOTOR CO., U.S.A.

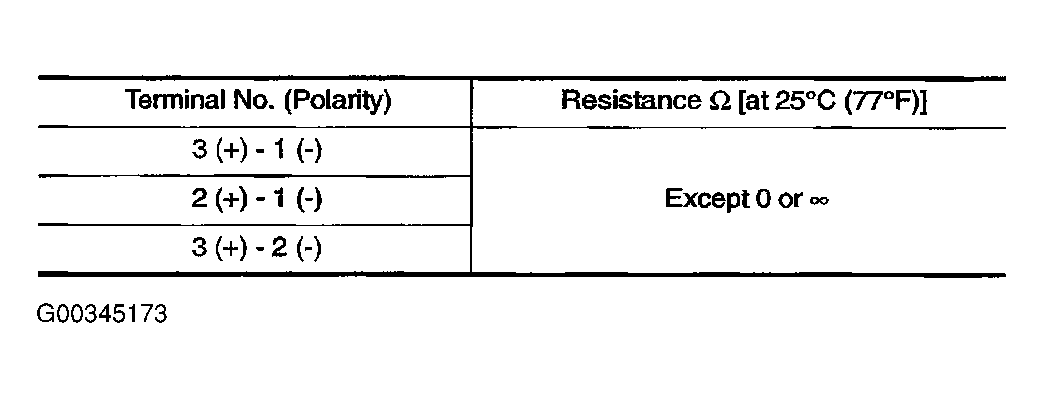

    Fig 2: Identifying Intake Valve Timing Control Position Sensor Specifications
    G00345173Courtesy of NISSAN MOTOR CO., U.S.A.
  6. If NG, replace intake valve timing control position sensor.
