Accelerator Pedal Position Sensor

  1. Reconnect all harness connectors disconnected.
  2. Turn ignition switch ON.

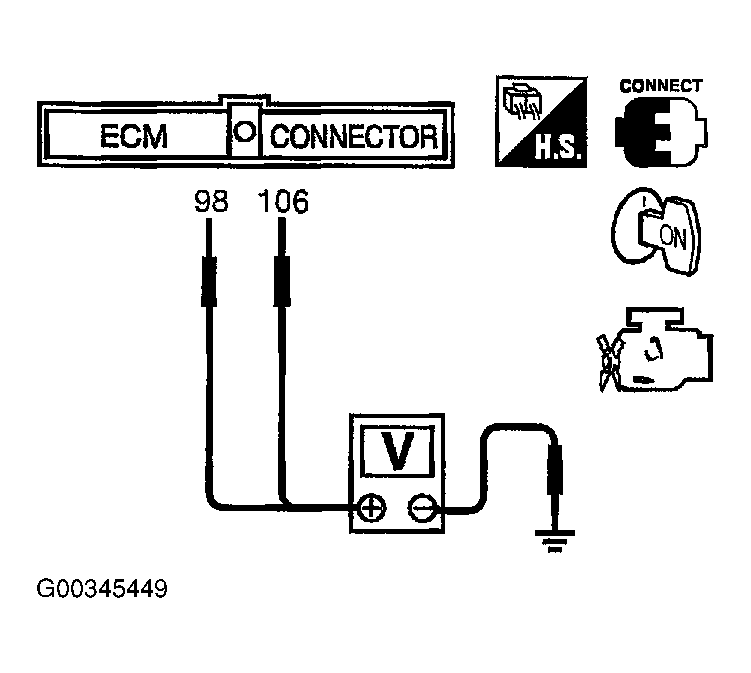

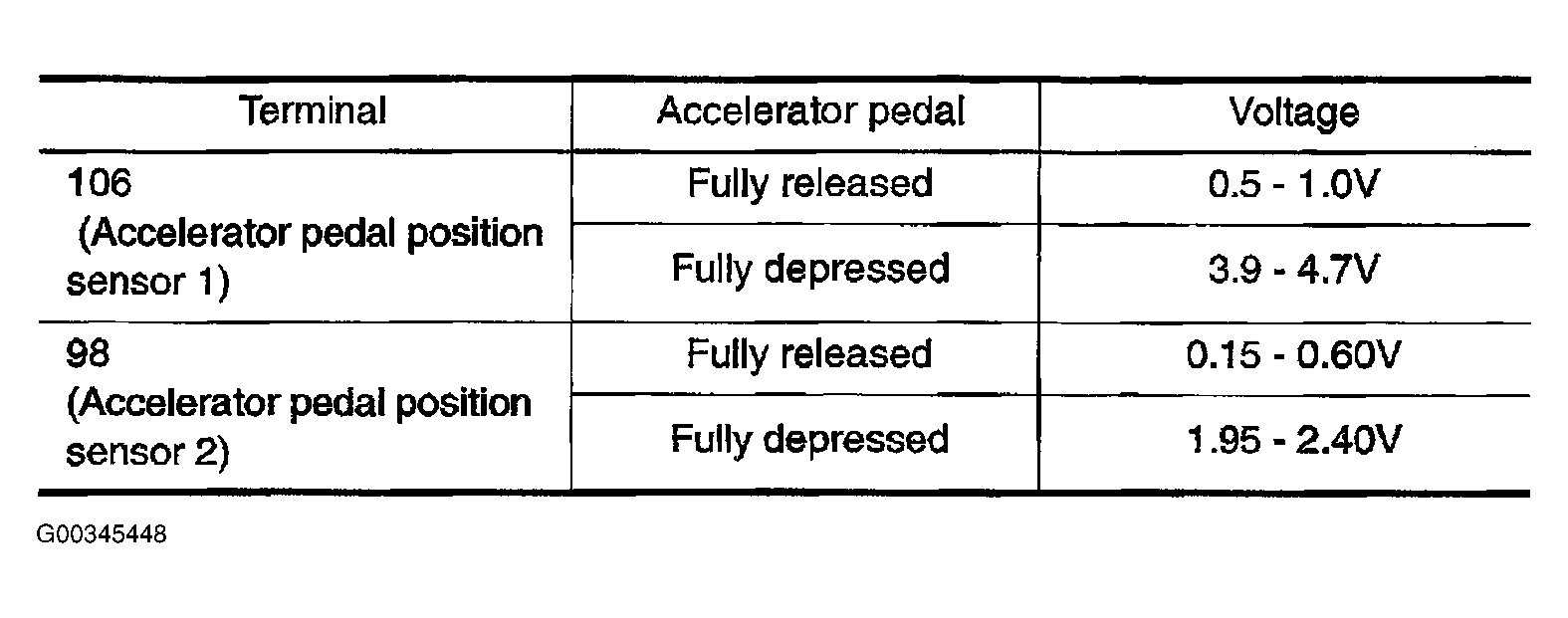

  3. Check voltage between ECM terminals 106 (APP sensor 1 signal), 98 (APP sensor 2 signal) and ground, see Figure , under the following conditions. See Figure .
  4. If NG, replace accelerator pedal assembly and go to next step.
  5. Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING  .
  6. Perform THROTTLE VALVE CLOSED POSITION LEARNING  .
  7. Perform IDLE AIR VOLUME LEARNING  .
