Mil And Data Link Connector: Wiring Diagram

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

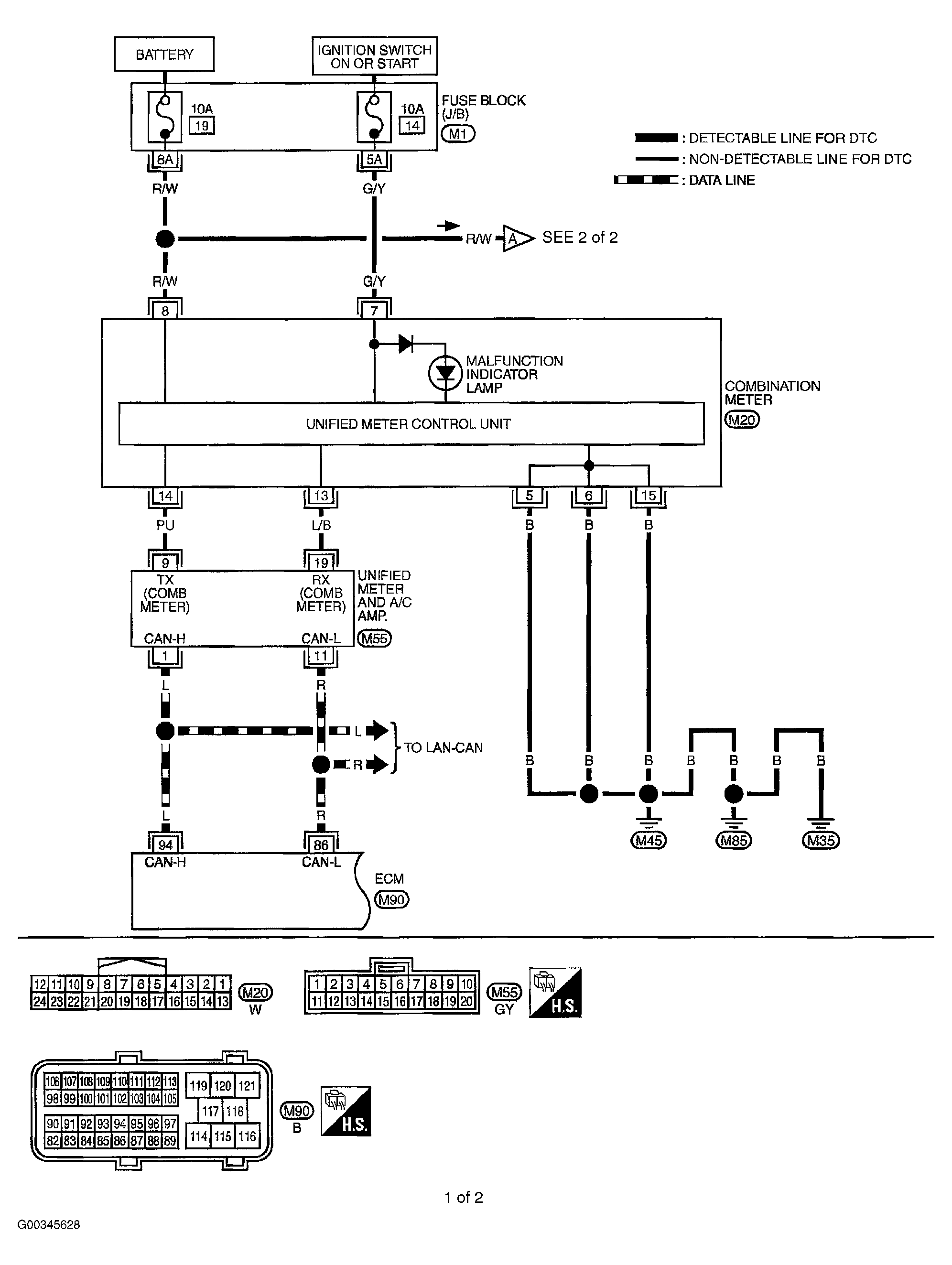

Fig 1: Combination Meter & Data Link Connector Circuits (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

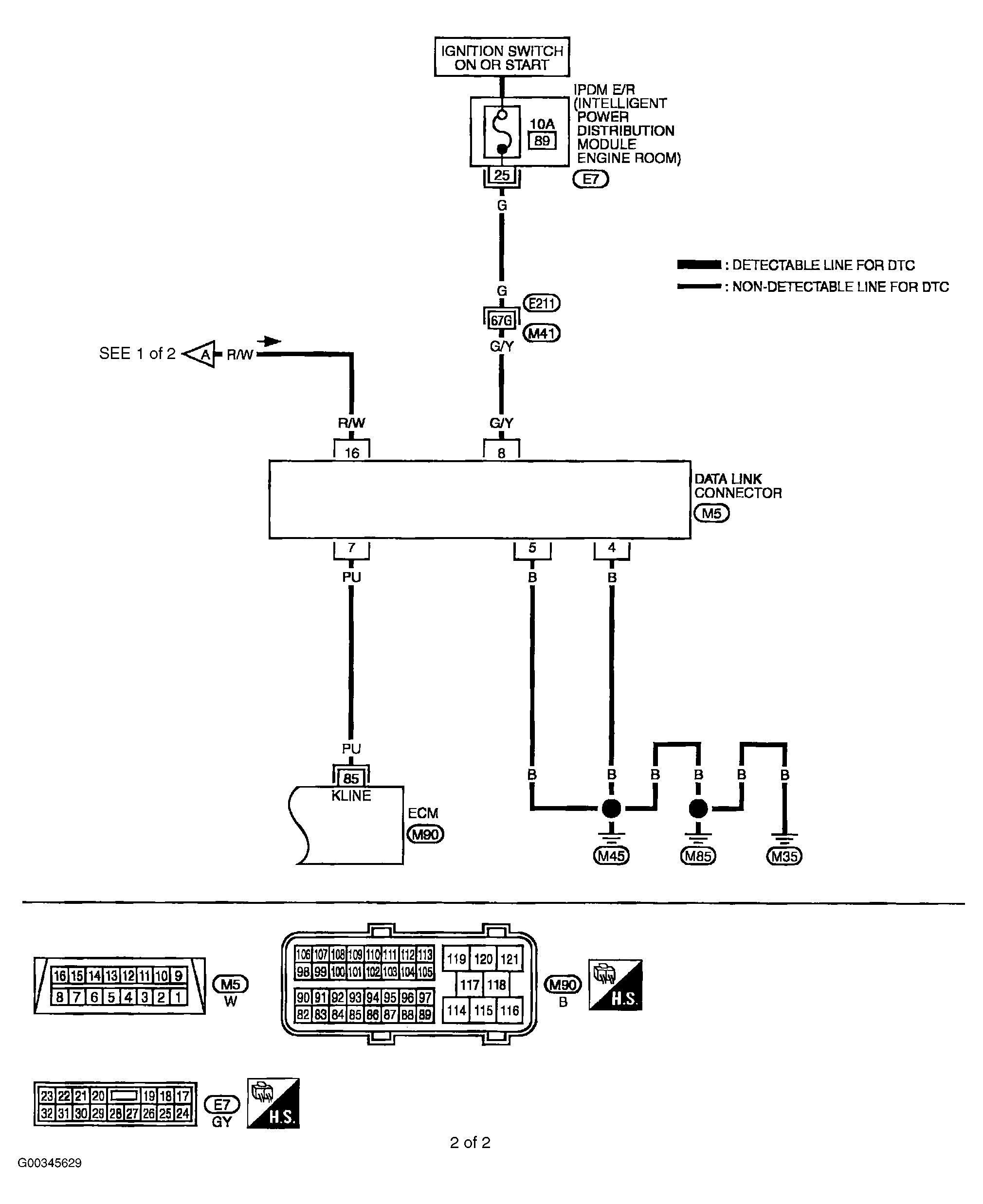

Fig 2: Combination Meter & Data Link Connector Circuits (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
