VIAS Control Solenoid Valve

With CONSULT-II

1. Reconnect harness connectors disconnected.
2. Turn ignition switch ON.
3. Perform VIAS SOL VALVE in ACTIVE TEST mode.
4. Check air passage continuity and operation delay time under the following conditions.

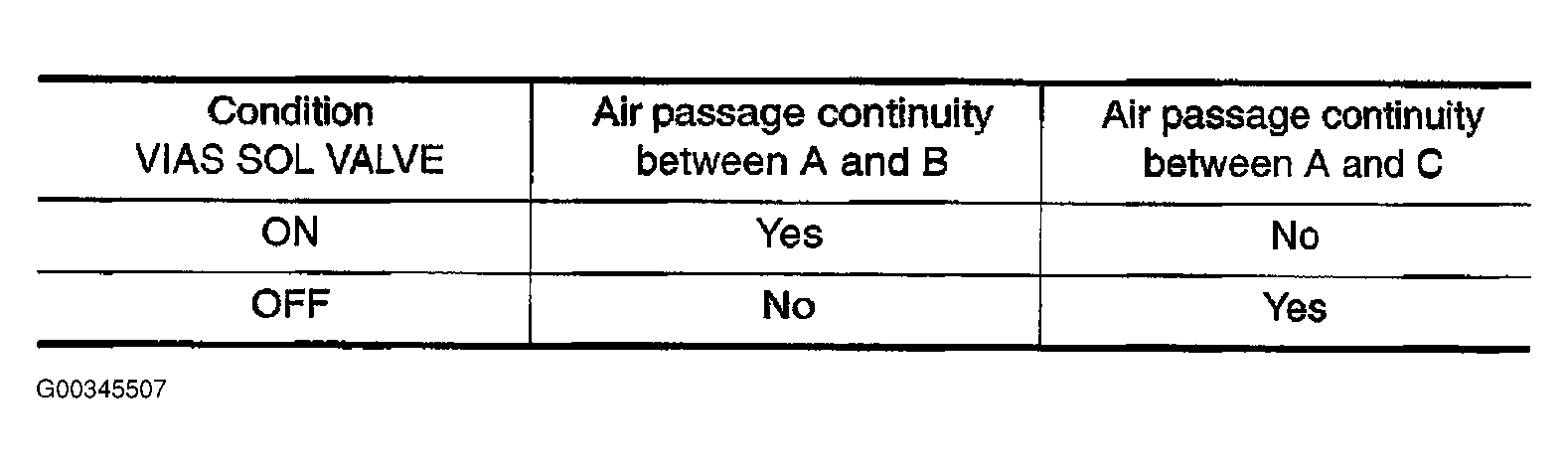

   Fig 1: Identifying VAIS Solenoid Specifications (CONSULT-II)

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Operation takes less than 1 second  .

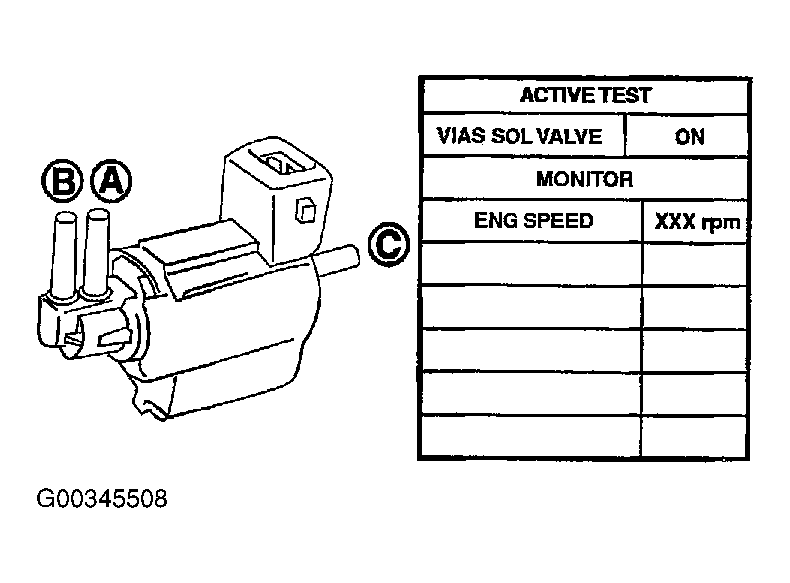

   Fig 2: Testing VAIS Solenoid With CONSULT-II

   Courtesy of NISSAN MOTOR CO., U.S.A.

With GST

Check air passage continuity and operation delay time under the following conditions.

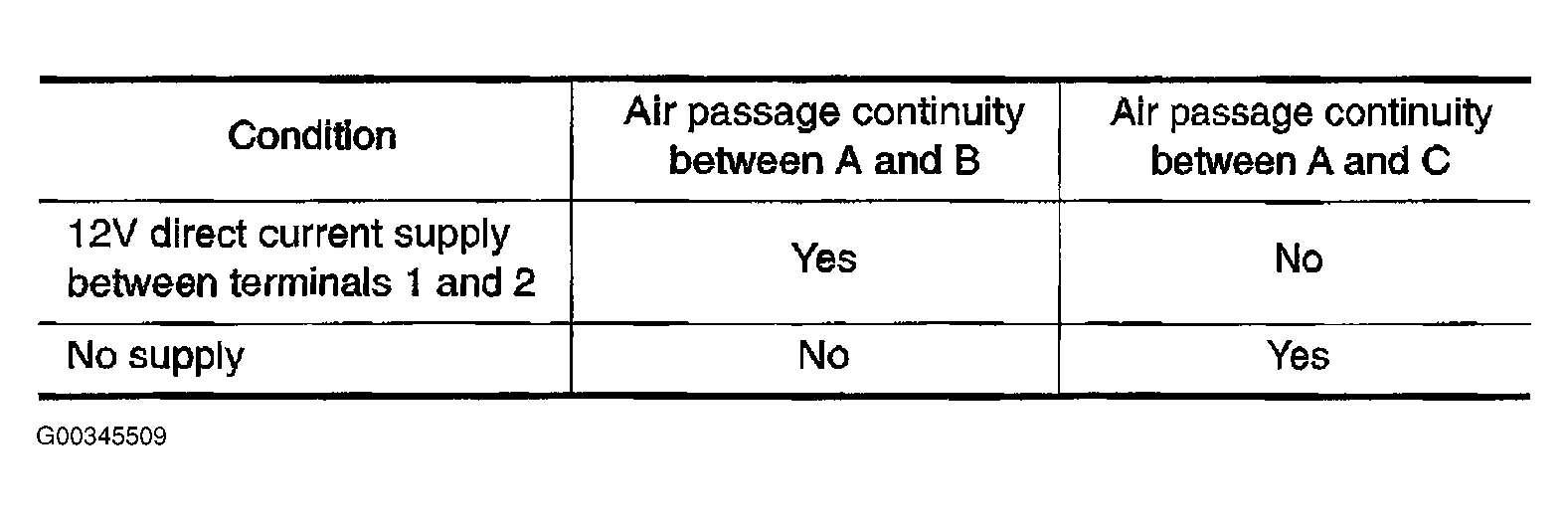

Fig 3: Identifying VAIS Solenoid Specifications (DVOM)

Courtesy of NISSAN MOTOR CO., U.S.A.

Operation takes less than 1 second  .

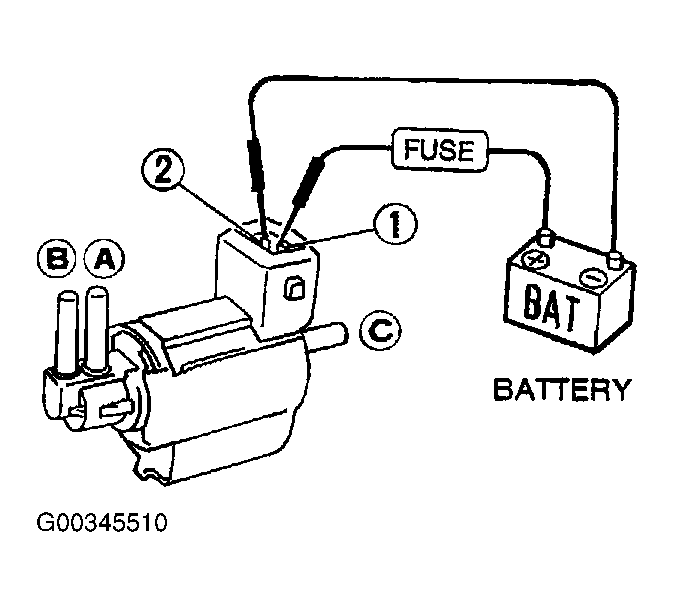

Fig 4: Testing VAIS Solenoid (DVOM)

Courtesy of NISSAN MOTOR CO., U.S.A.
