Function Of Control Valve

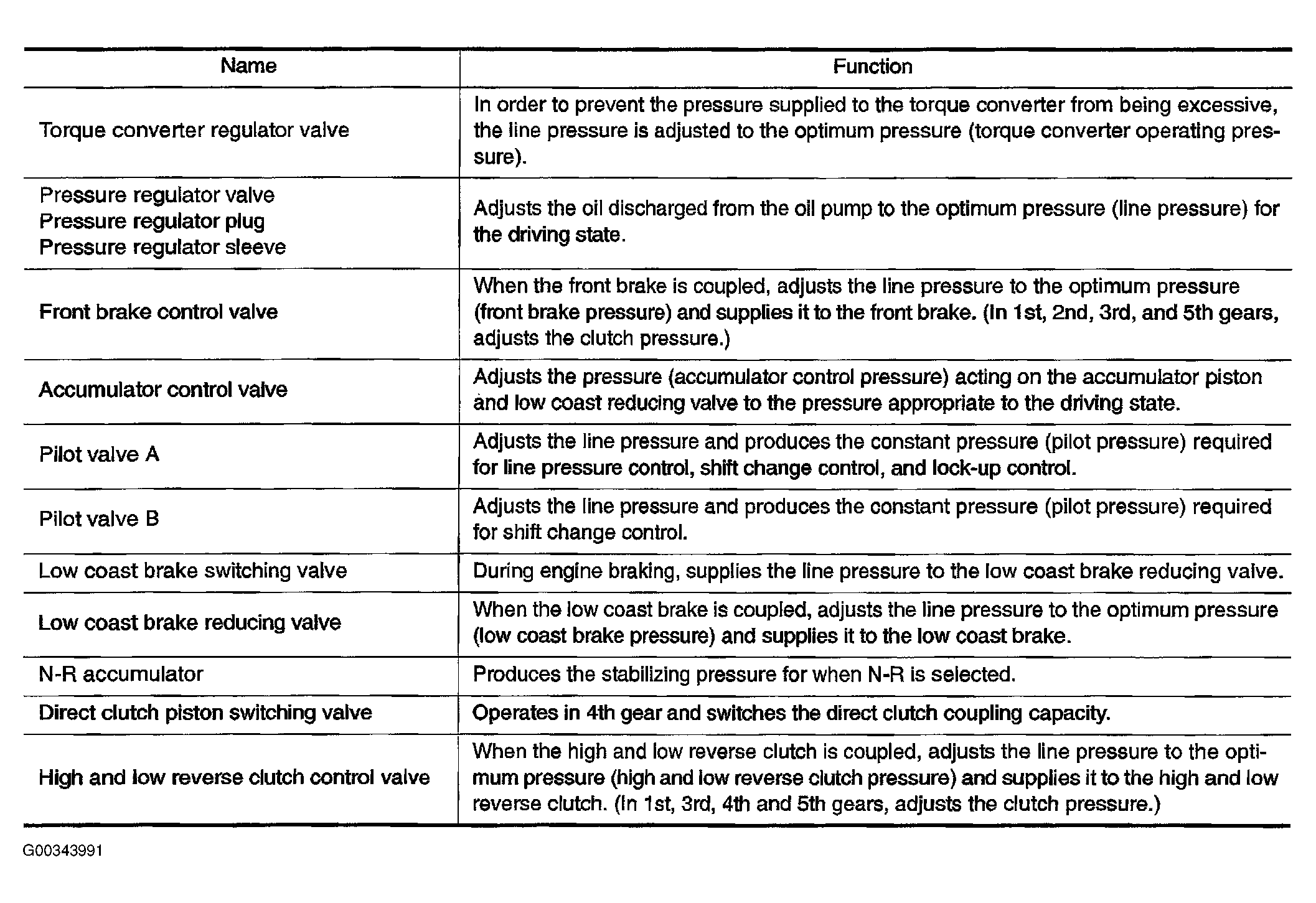

Fig 1: Identifying Control Valve Functions (1 Of 2)

G00343991

Courtesy of NISSAN MOTOR CO., U.S.A.

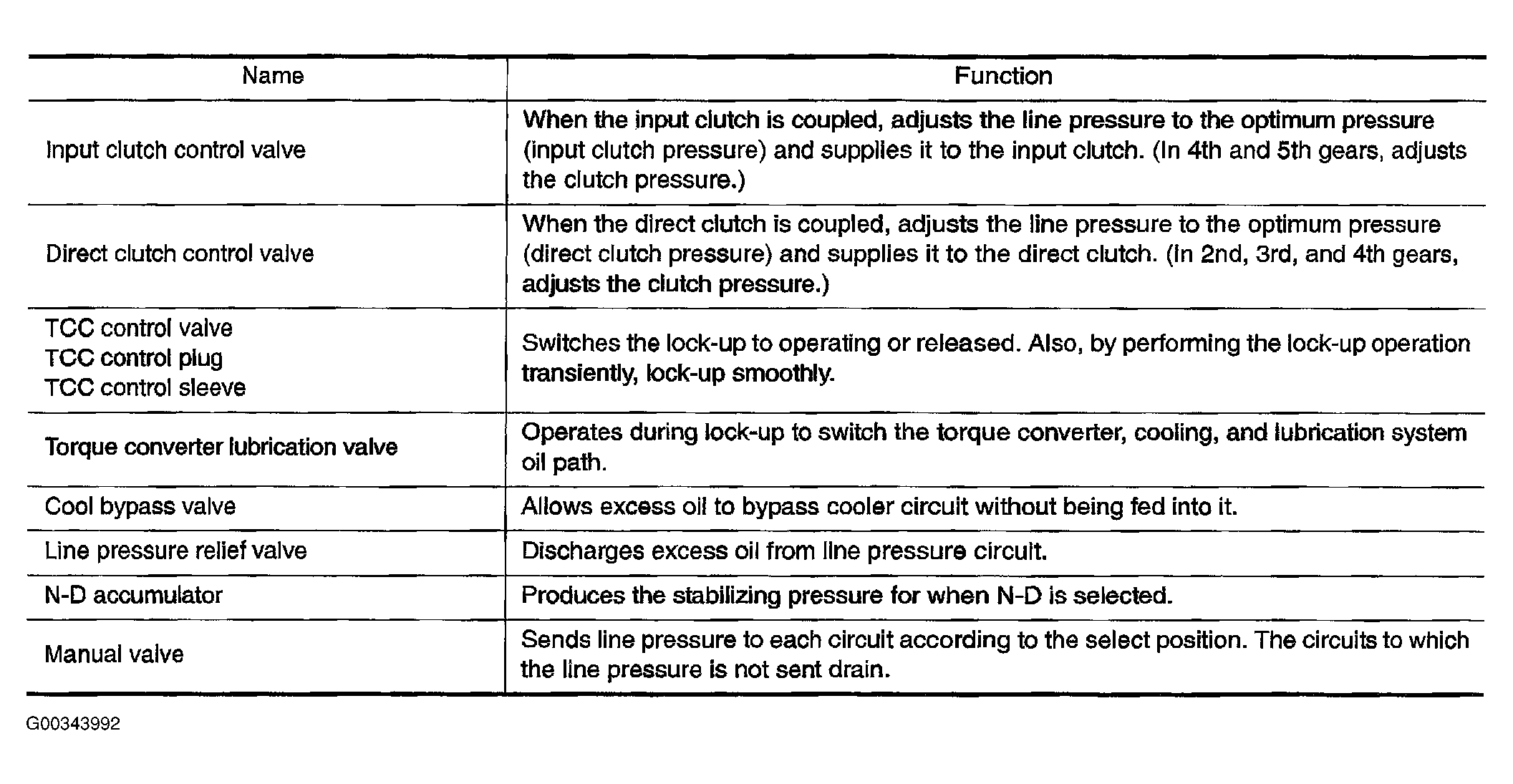

Fig 2: Identifying Control Valve Functions (2 Of 2)

G00343992

Courtesy of NISSAN MOTOR CO., U.S.A.
