Home >> Infiniti >> 2004 >> FX45 >> Repair and Diagnosis >> Transmission >> Transfer Case >> AWD Control Unit >> Removal And Installation >> Removal

Removal And Installation: Removal

  1. Remove the dash side finisher. Refer to EXTERIOR & INTERIOR .
  2. Disconnect AWD control unit connector.
  3. Remove the AWD control unit.

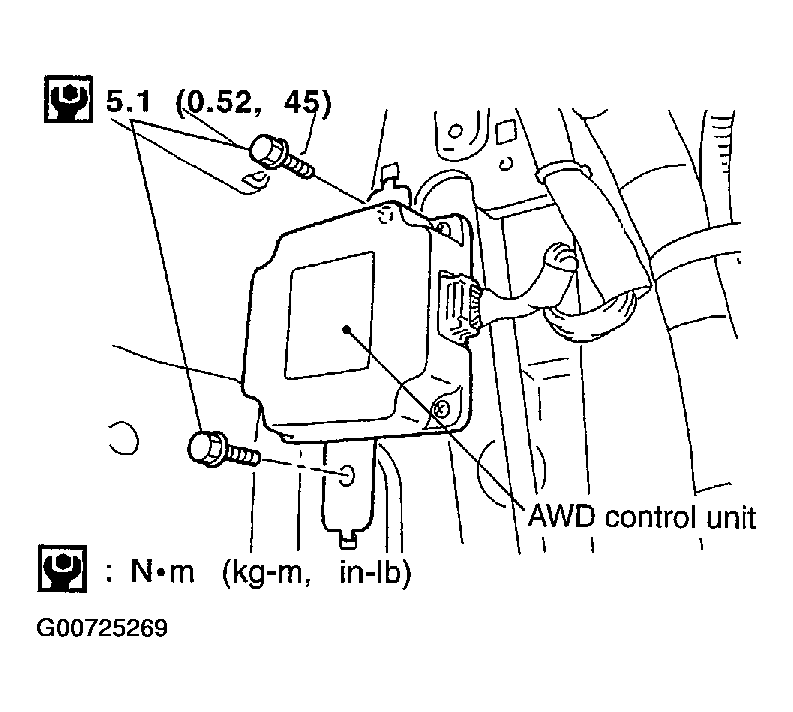

    Fig 1: Disconnecting AWD Control Unit
    G00725269Courtesy of NISSAN MOTOR CO., U.S.A.
