Home >> Infiniti >> 2004 >> FX45 >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer Assembly >> Disassembly And Assembly >> Components

Disassembly And Assembly: Components

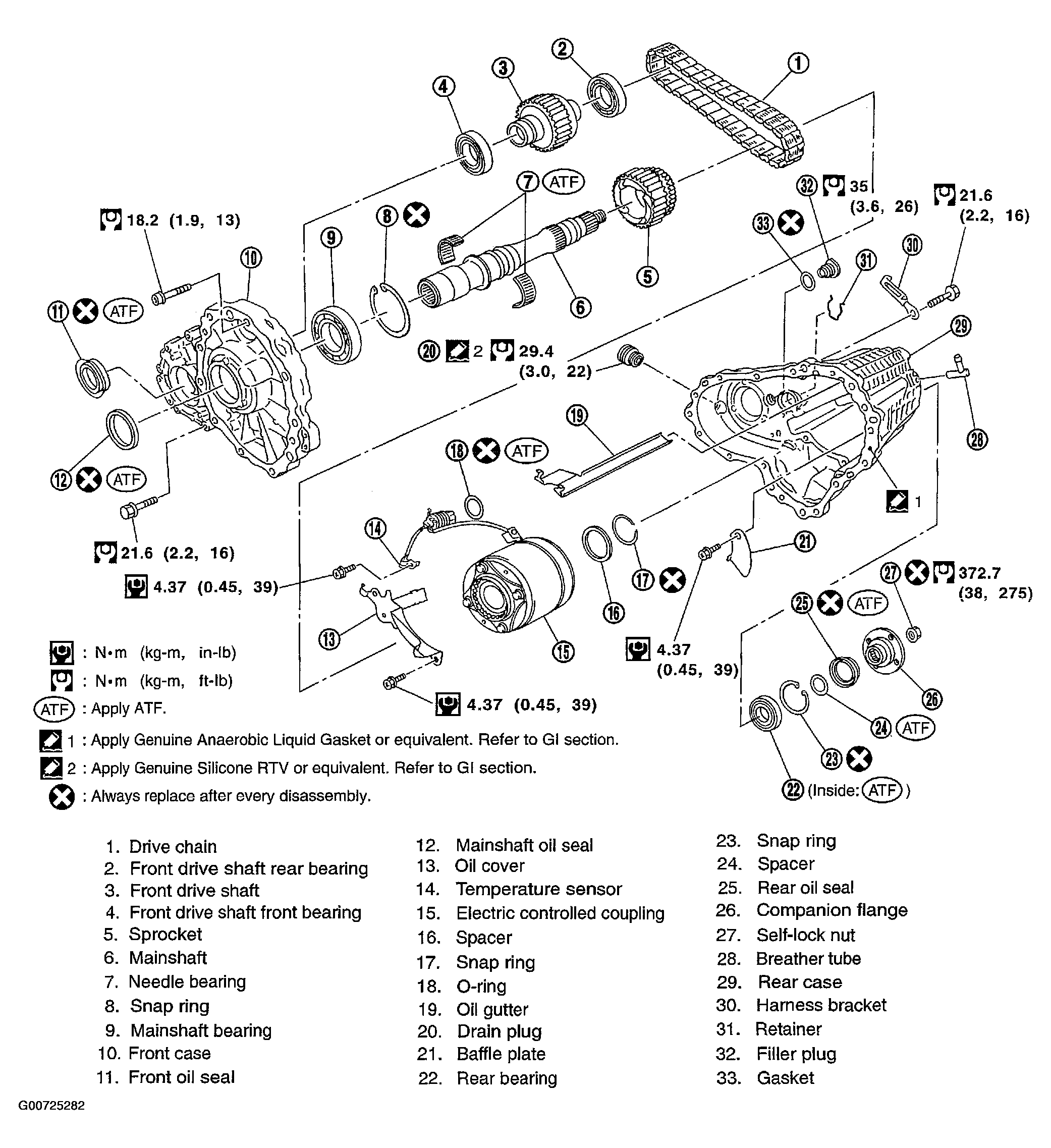

Fig 1: Displaying Transfer Assembly Components

G00725282

Courtesy of NISSAN MOTOR CO., U.S.A.
