AWD Control Unit Input/Output Signal Reference Values
>>
AWD Control Unit Inspection Table
>>
Specifications With CONSULT-II
Specifications With CONSULT-II

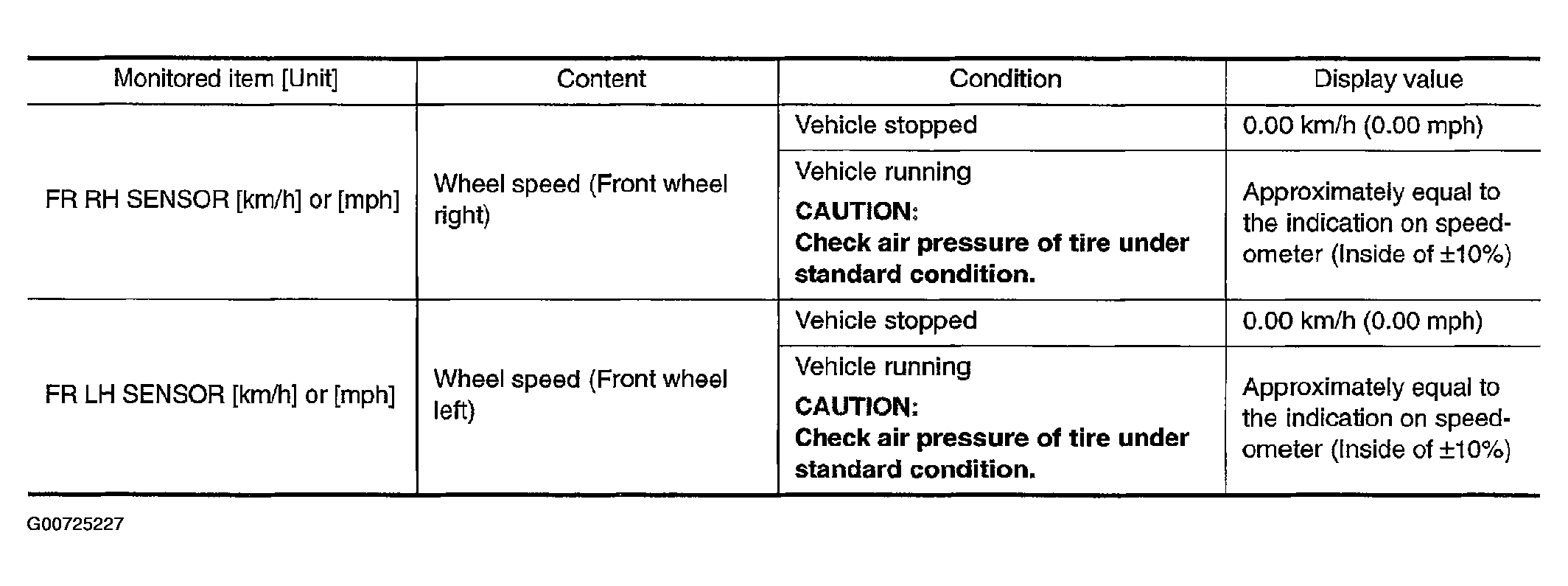

Fig 1: Displaying AWD Control Unit Inspection Table (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

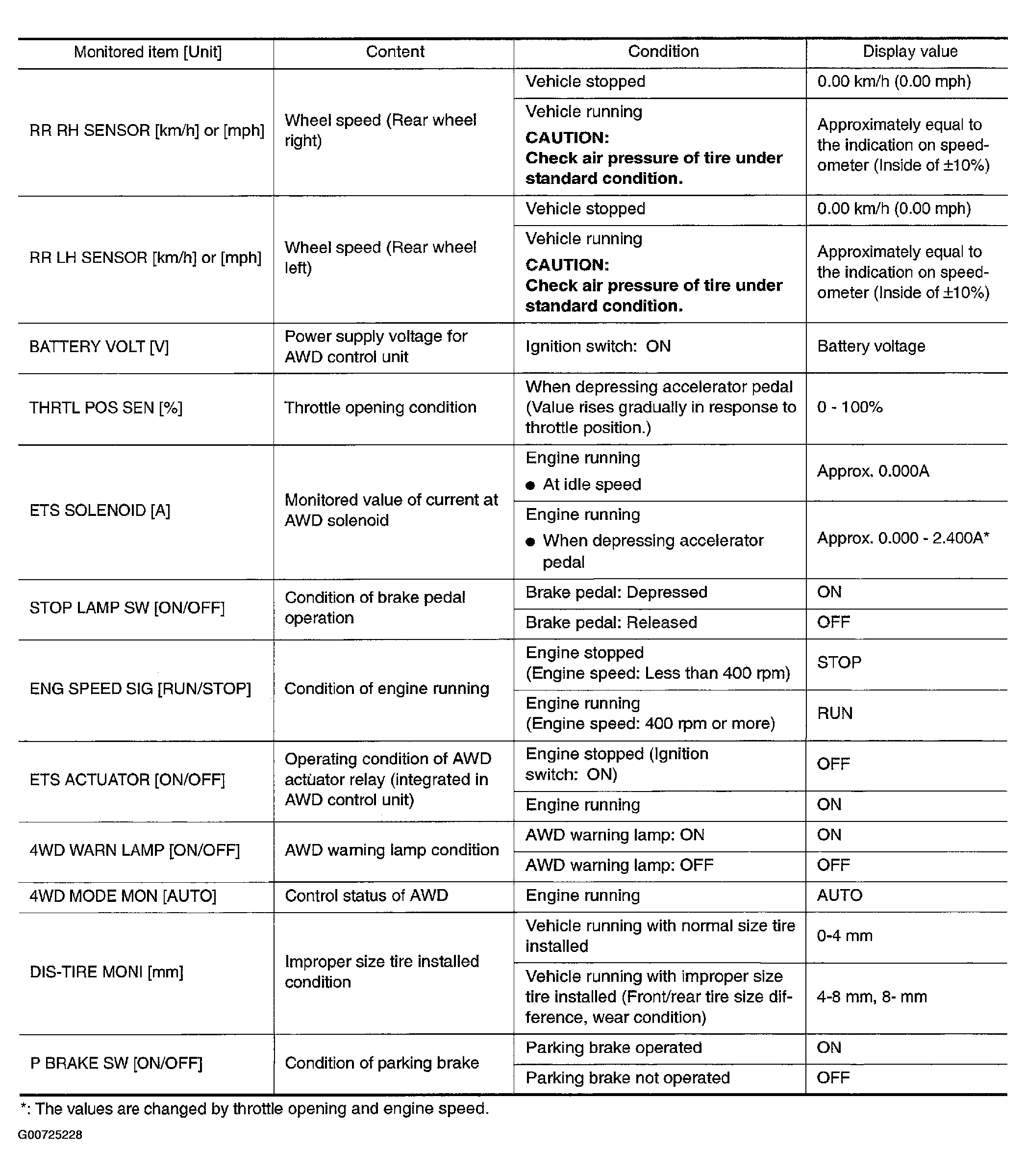

Fig 2: Displaying AWD Control Unit Inspection Table (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
