ASCD Clutch Switch

  1. Turn ignition switch OFF.
  2. Disconnect ASCD clutch switch harness connector.
  3. Check harness continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.

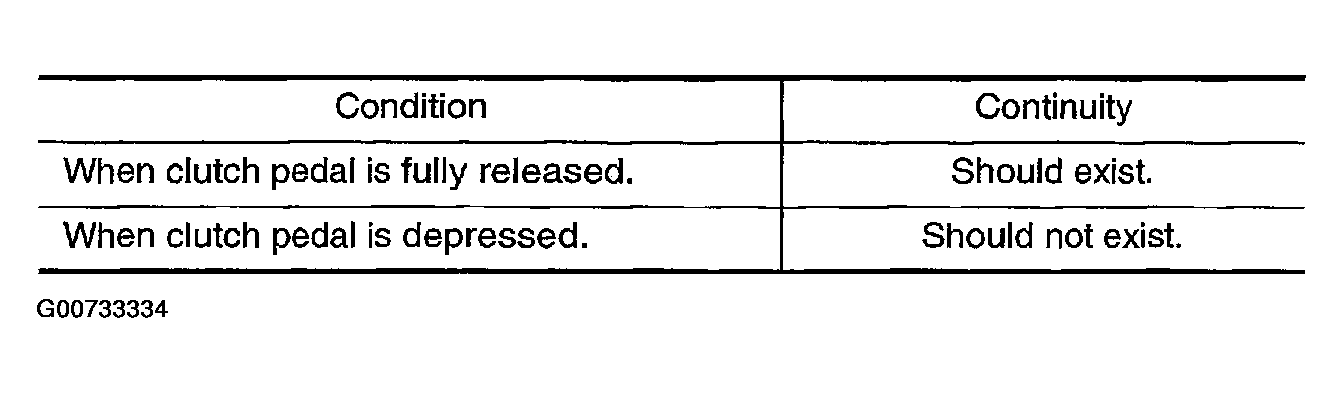

    Fig 1: ASCD Clutch Switch Terminals 1 And 2 Continuity Table
    G00733334Courtesy of NISSAN MOTOR CO., U.S.A.

    If NG, adjust ASCD clutch switch installation, Refer to CLUTCH PEDAL , and perform step 3 again.

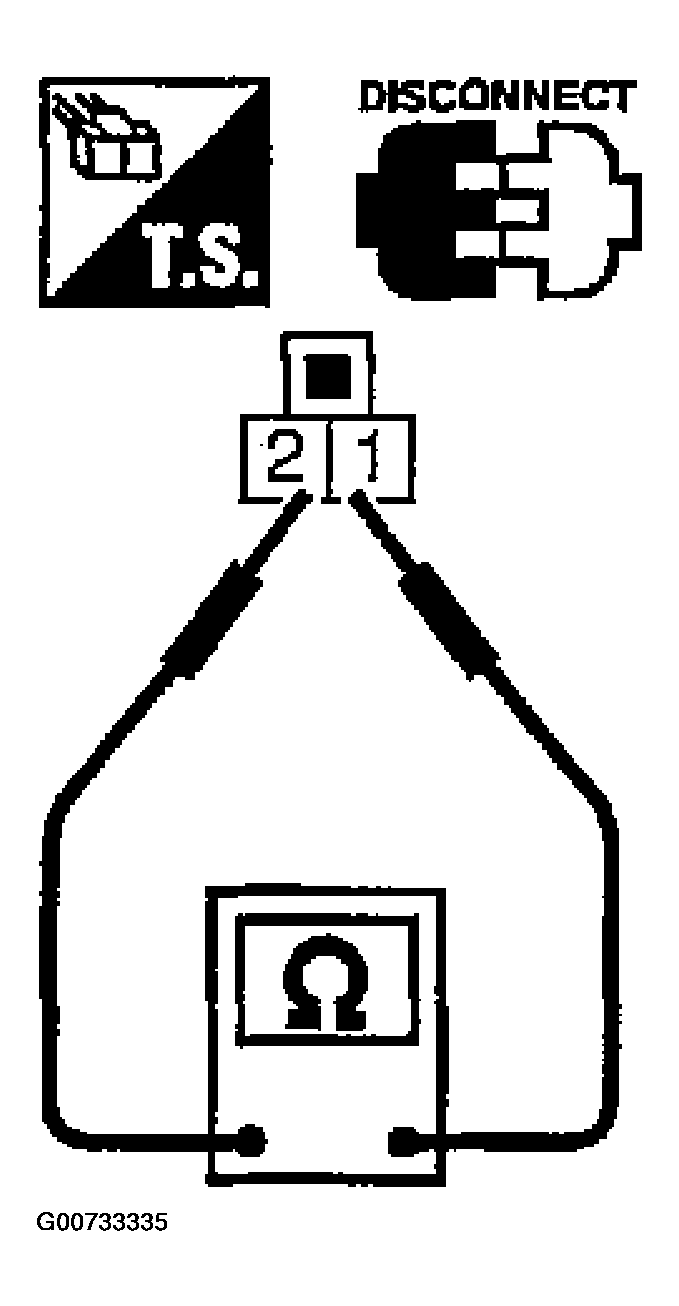

Fig 2: Checking Harness Continuity Between ASCD Clutch Switch Terminals 1 And 2
G00733335Courtesy of NISSAN MOTOR CO., U.S.A.
