Stop Lamp Switch

  1. Turn ignition switch OFF.
  2. Disconnect stop lamp switch harness connector.
  3. Check harness continuity between stop lamp switch terminals 1 and 2 under the following conditions.

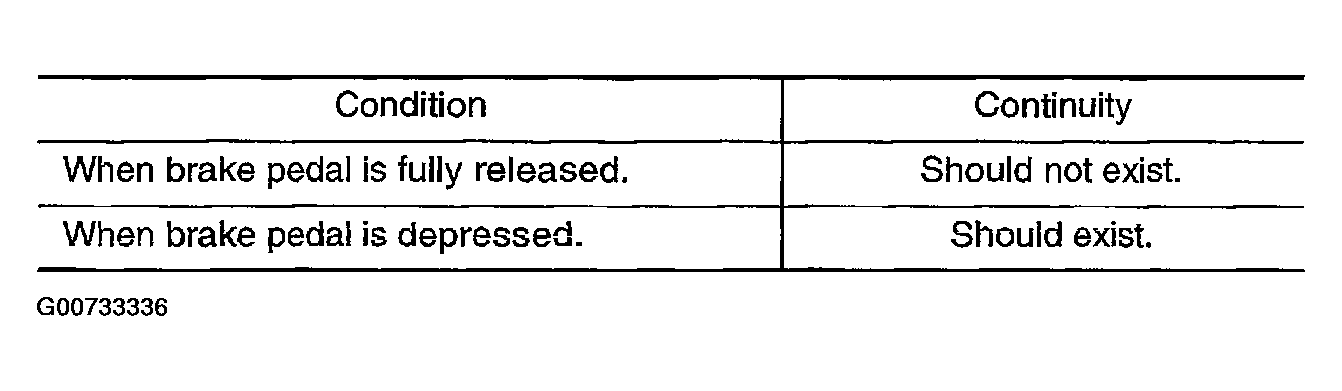

    Fig 1: Stop Lamp Switch Terminals 1 And 2 Continuity Table
    G00733336Courtesy of NISSAN MOTOR CO., U.S.A.

    If NG, adjust stop lamp switch installation, Refer to BRAKE PEDAL , and perform step 3 again.

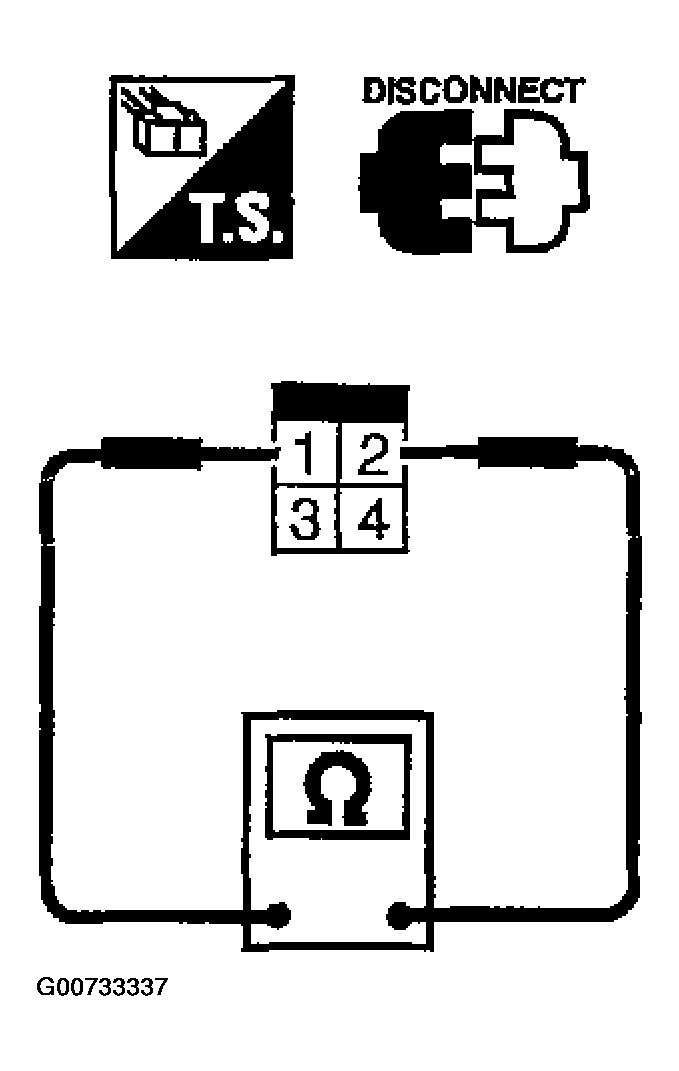

Fig 2: Checking Harness Continuity Between Stop Lamp Switch Terminals 1 And 2
G00733337Courtesy of NISSAN MOTOR CO., U.S.A.
