Vacuum Hose Drawing

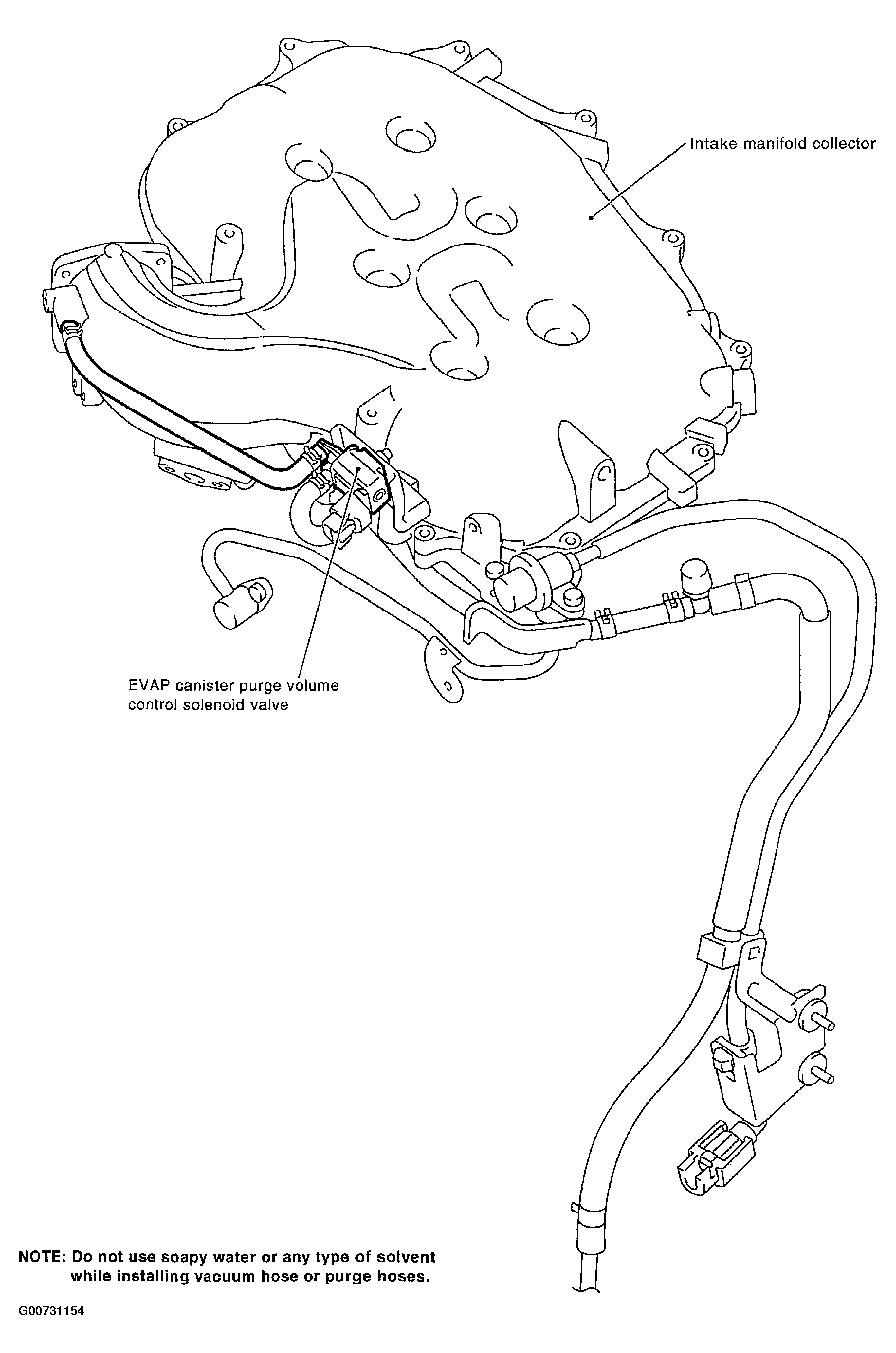

Fig 1: Identifying Vacuum Hose

G00731154

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to System Diagram for Vacuum Control System.
