Home >> Infiniti >> 2004 >> I35 >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Power Window >> Schematic

Power Window: Schematic

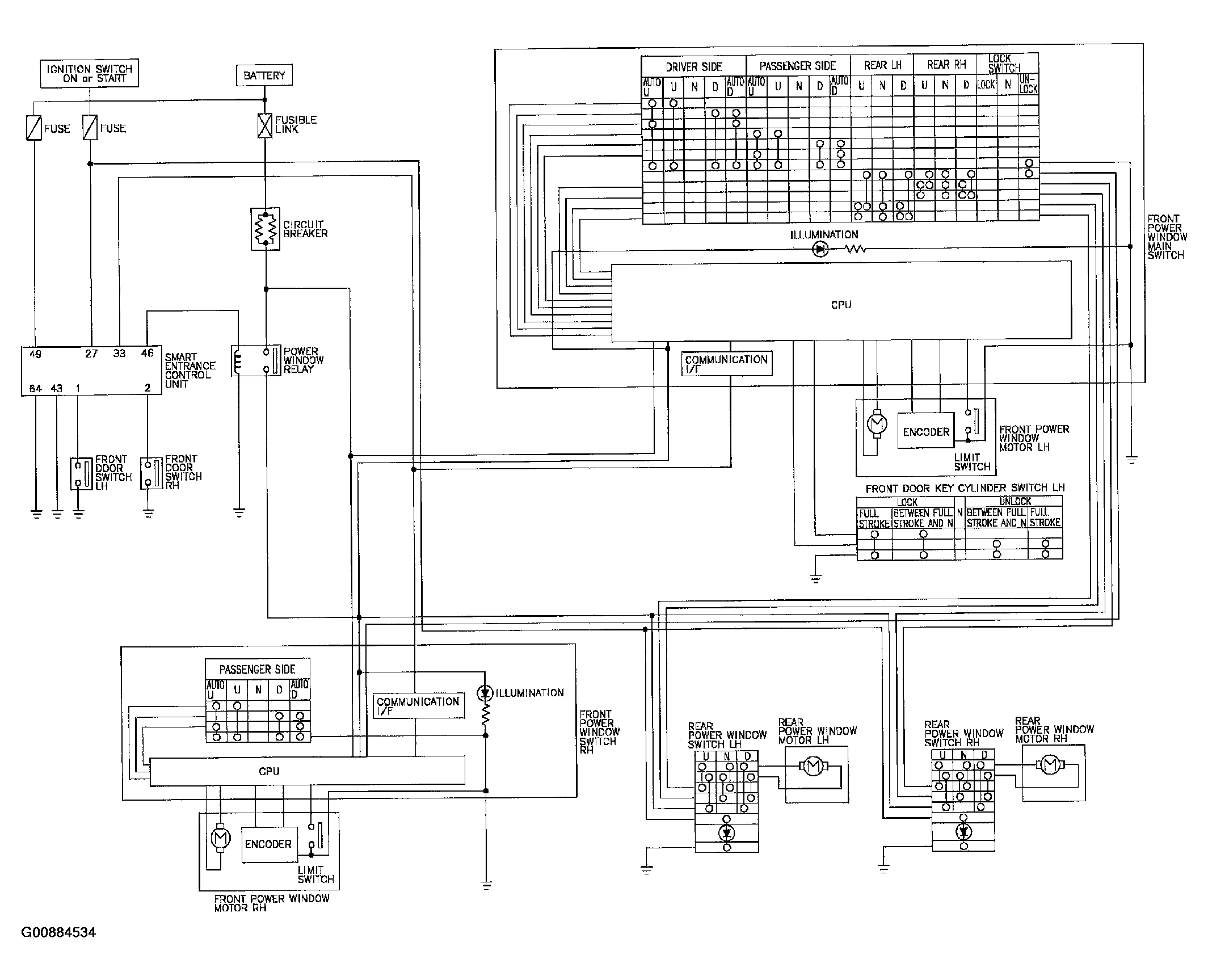

Fig 1: Power Window Schematic
G00884534Courtesy of NISSAN MOTOR CO., U.S.A.
