Power Window
>>
Trouble Diagnosis
>>
Notes
Trouble Diagnosis: Notes

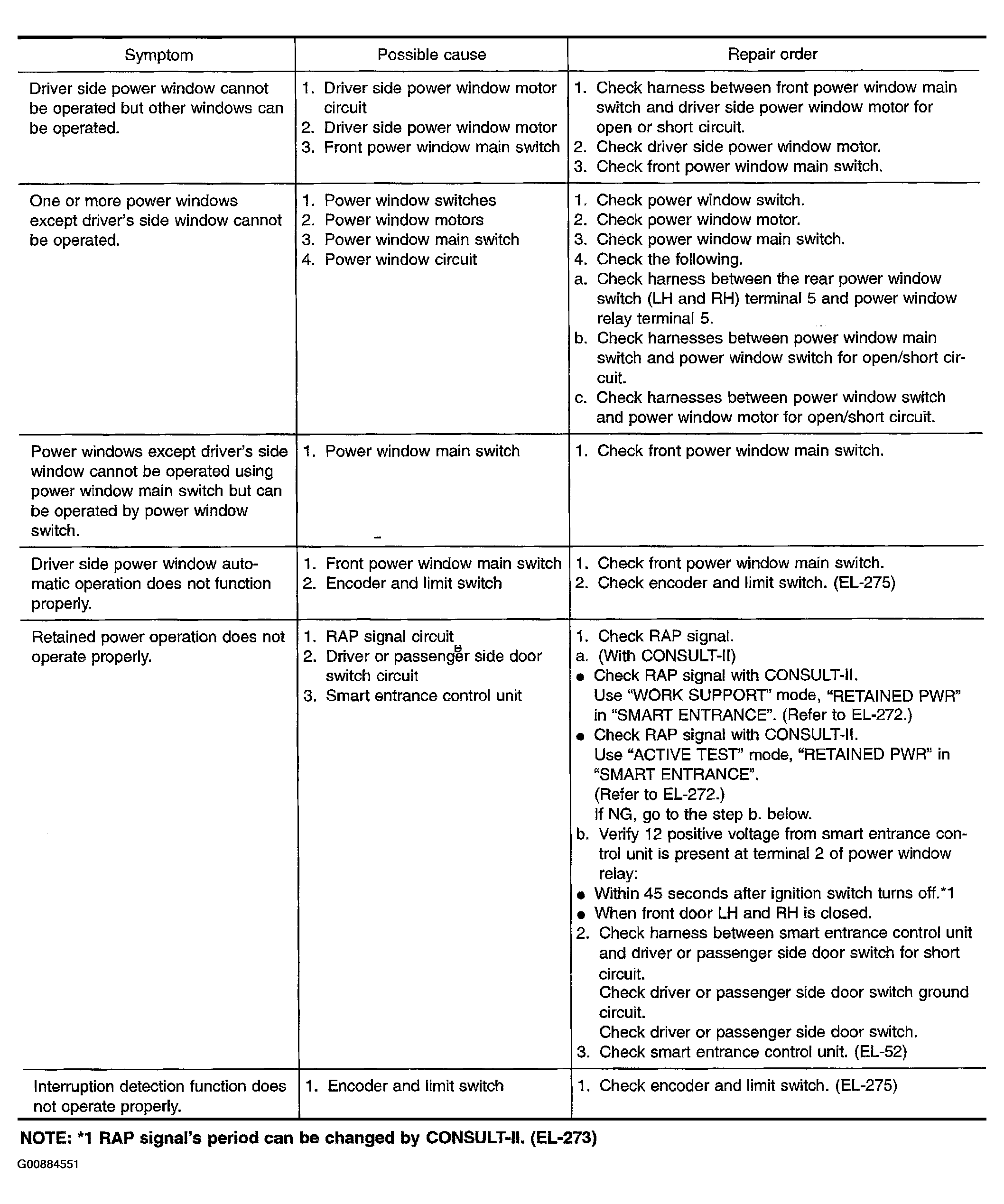

Fig 1: Symptom Diagnosis (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

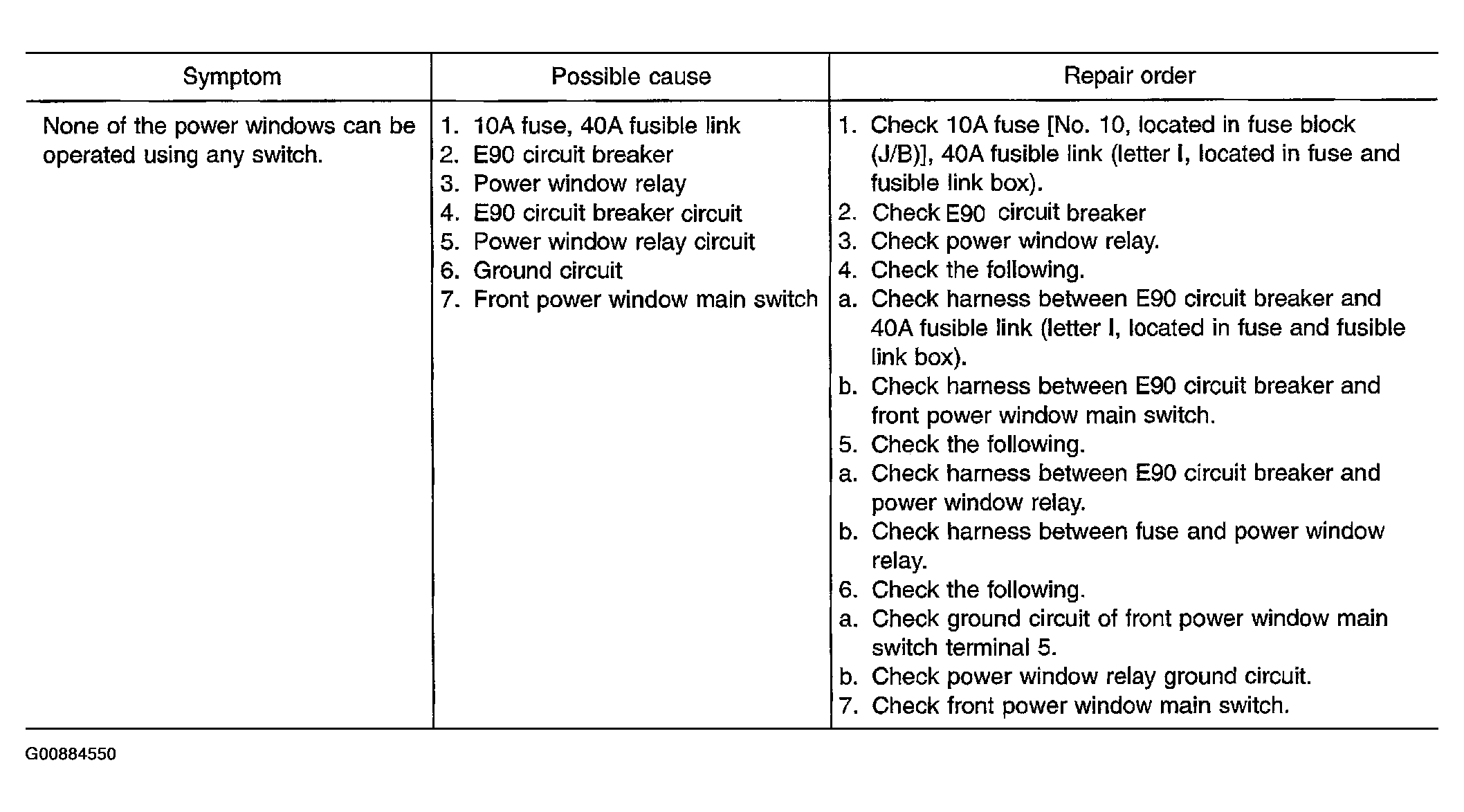

Fig 2: Symptom Diagnosis (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
