Key Switch

Check continuity between terminals of the key switch and key lock solenoid connector.

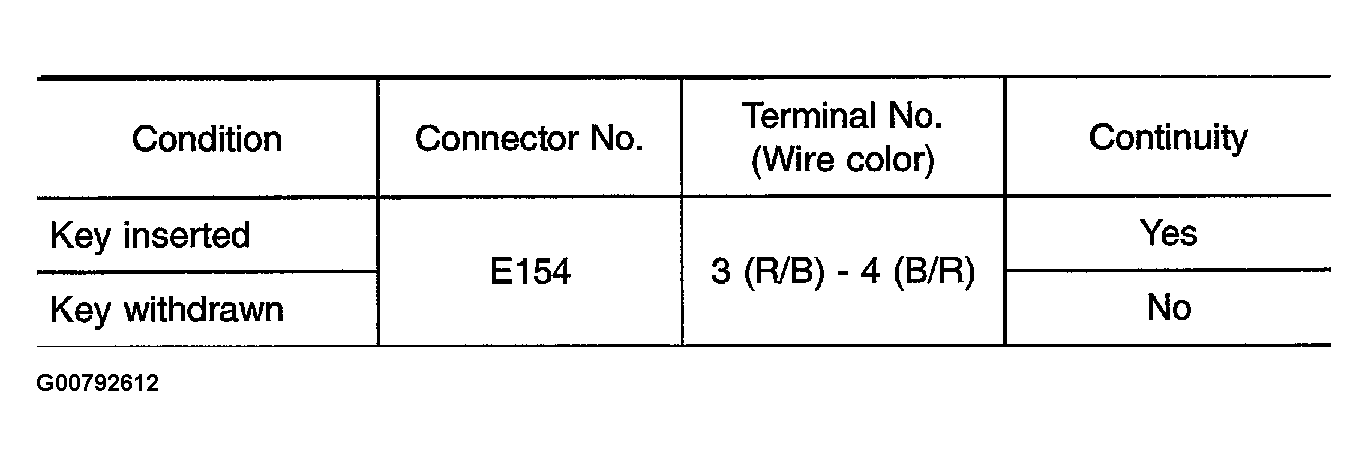

Fig 1: checking key lock solenoid key switch continuity (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

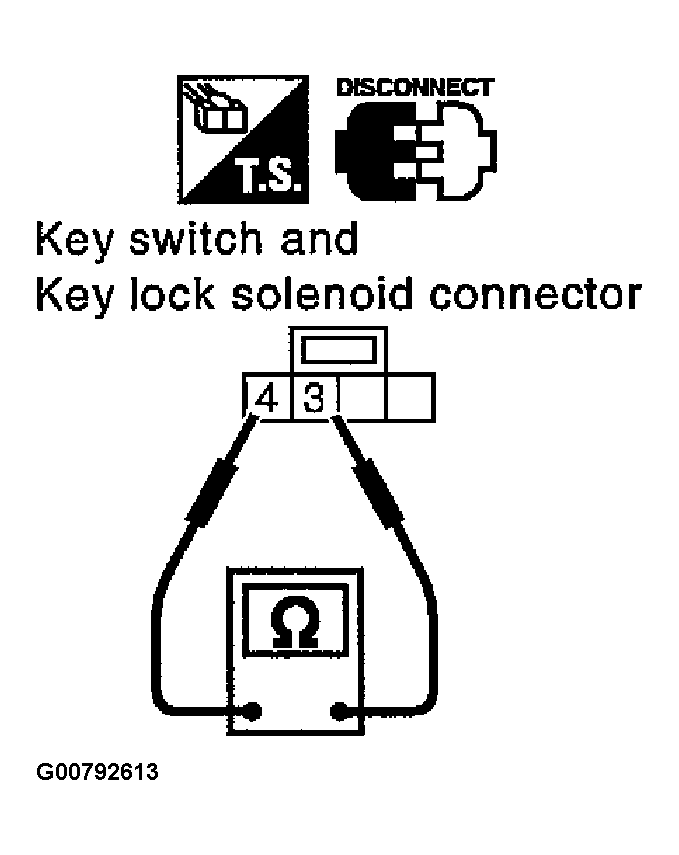

Fig 2: checking key lock solenoid key switch continuity (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
