Shift Mechanism: Construction

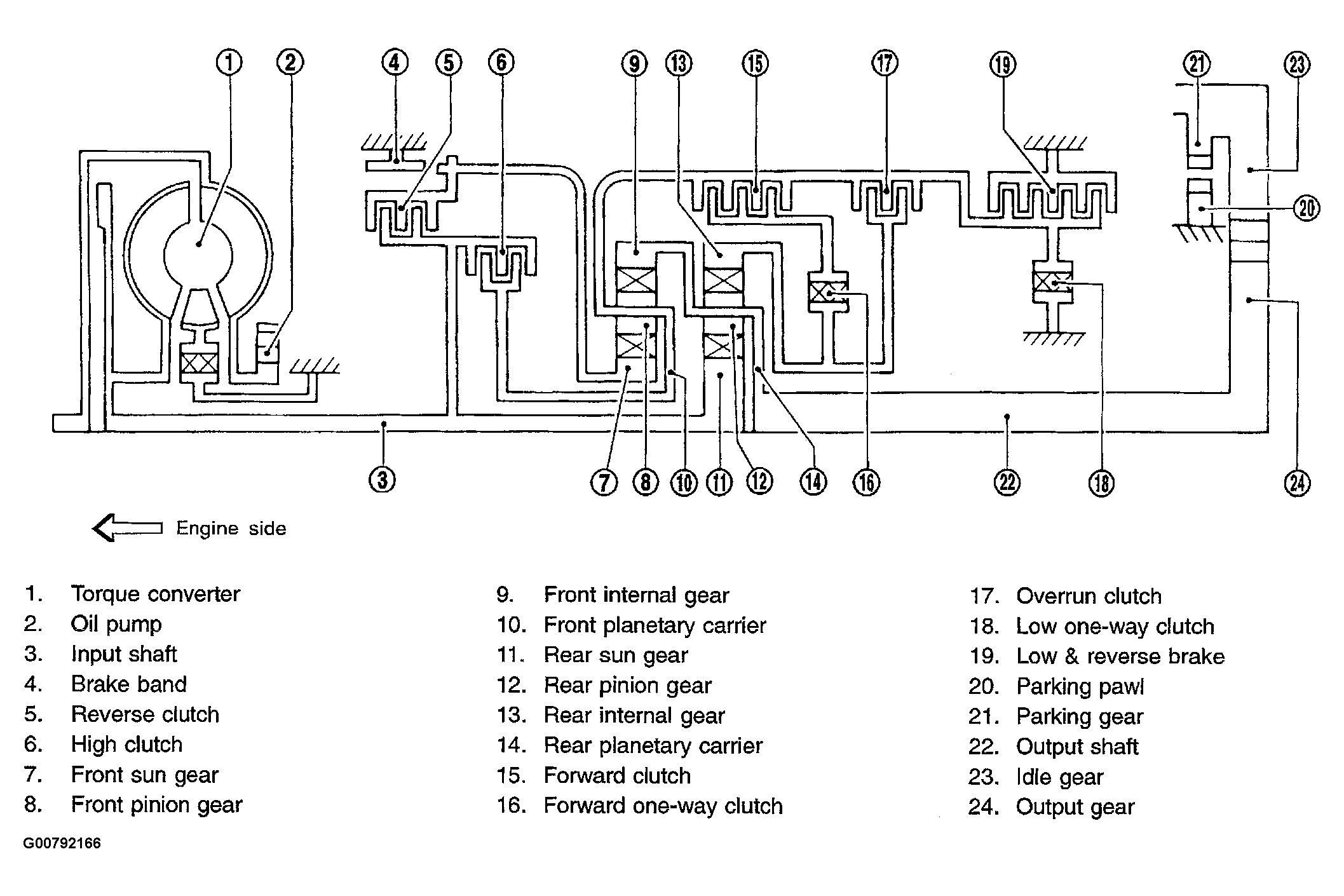

Fig 1: Construction For Shift Mechanism
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
