Consult-II Basic Operation Procedure

  1. With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector on vehicle side, and turn the ignition switch ON.

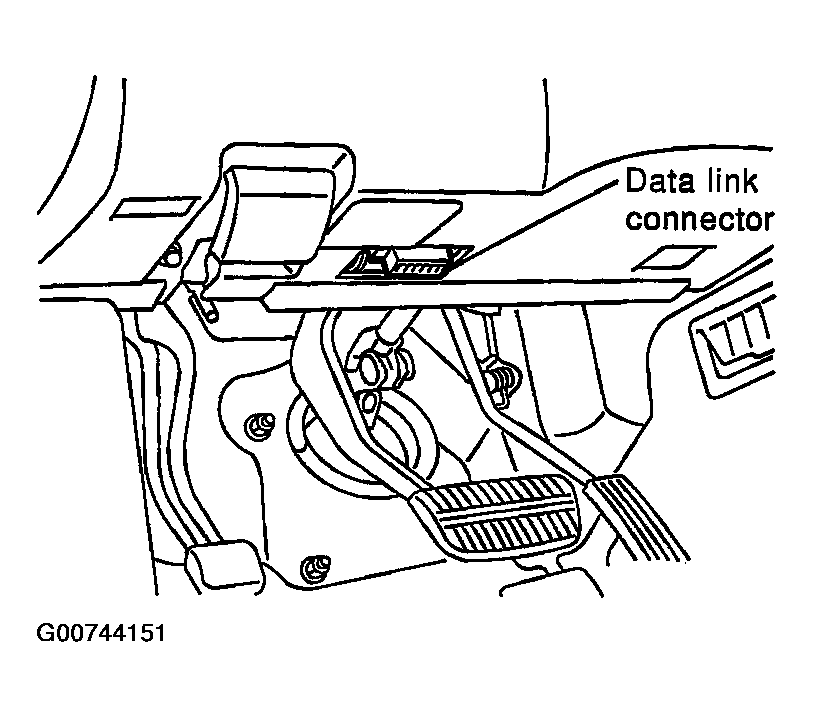

    Fig 1: Locating Data Link Connector
    G00744151Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".
  3. Touch "IVMS".

    If "IVMS" is not indicated, go to CONSULT-II Data Link Connector (DLC) Circuit .

  4. Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
  5. Touch "OK". If the selection is wrong, touch "CANCEL".
  6. Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
