Remote Keyless Entry System
>>
CONSULT-II Function
>>
Work Support
Work Support
Work Support Item

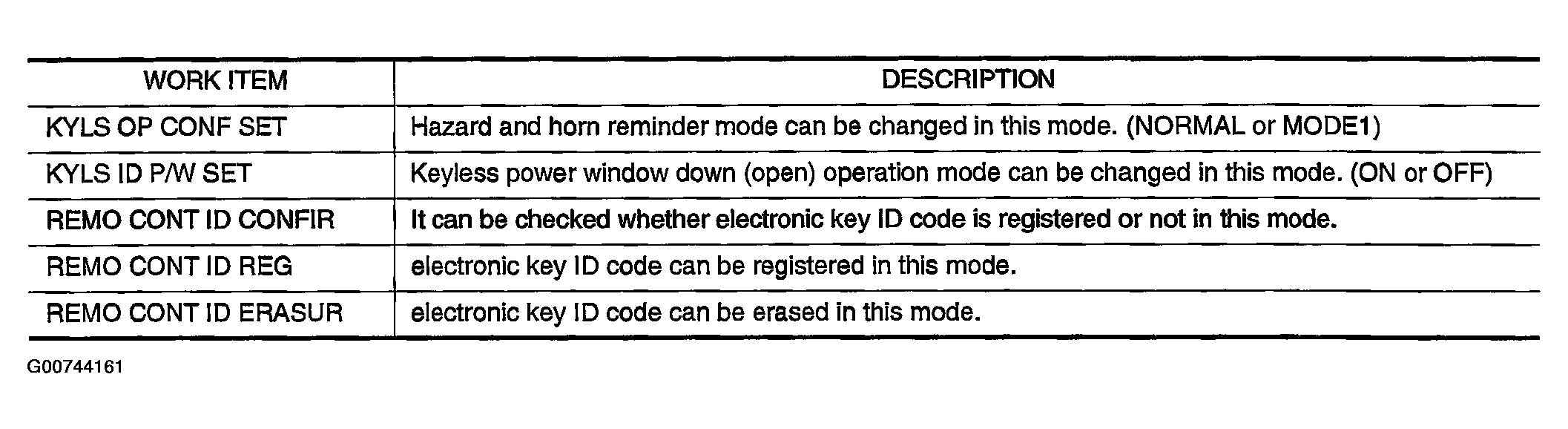

Fig 1: Work Support Item
Courtesy of NISSAN MOTOR CO., U.S.A.
Hazard and Horn Reminder Mode

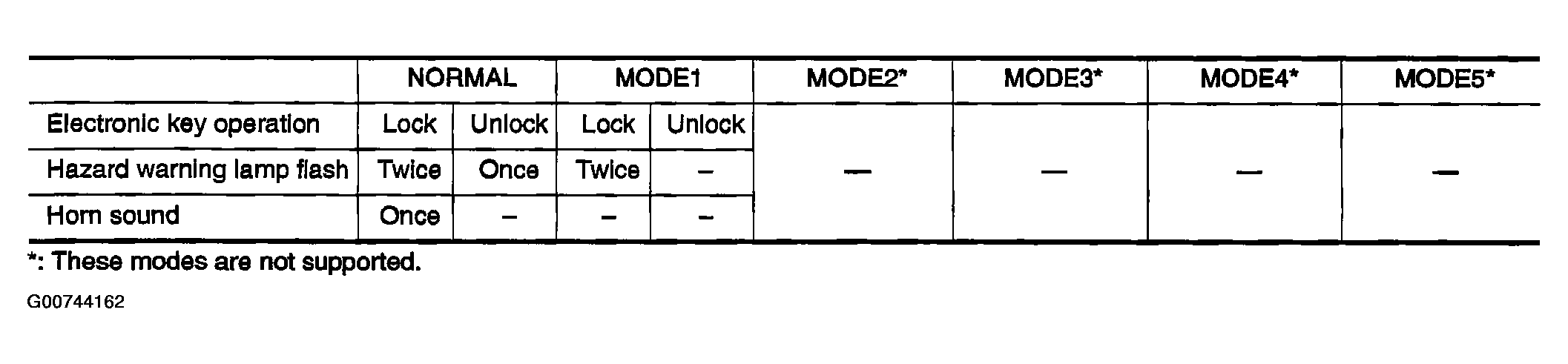

Fig 2: Hazard and Horn Reminder Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
