Check Hazard Reminder Operation

1. Remove electronic key from ignition key cylinder.
2. Discount flasher unit connector.
3. Check voltage between flasher unit connector M91 terminal 6 (W/L) and ground.

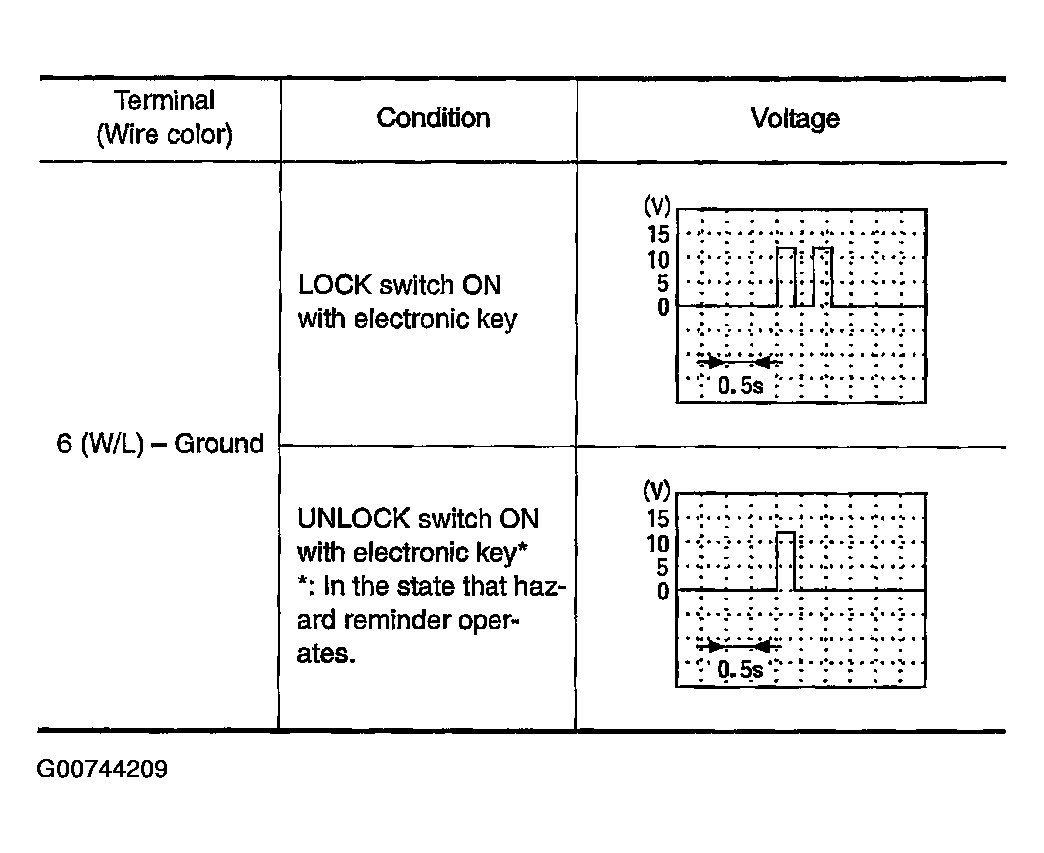

   Fig 1: Checking BCM Output Signal (1 Of 2)

   Courtesy of NISSAN MOTOR CO., U.S.A.

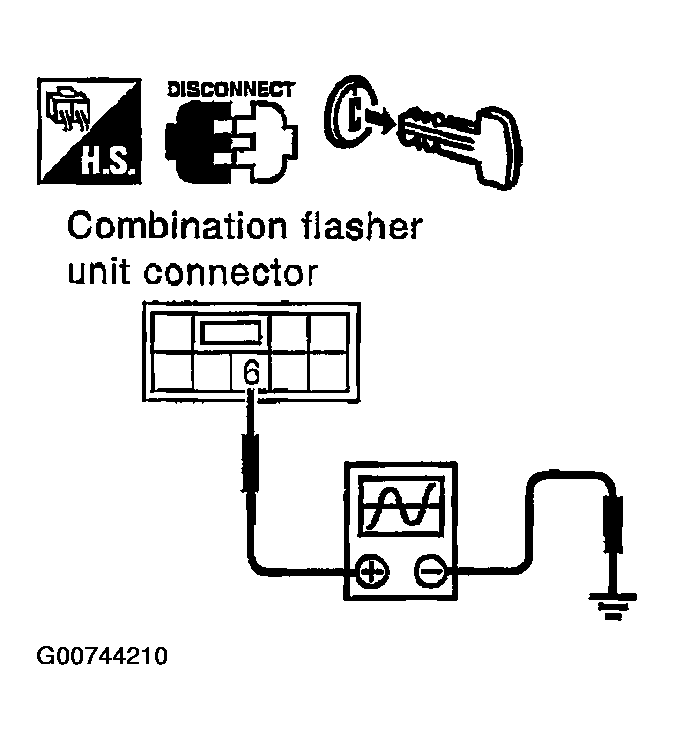

   Fig 2: Checking BCM Output Signal (1 Of 2)

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Check flasher unit. Refer to TURN SIGNAL AND HAZARD WARNING LAMPS .
2. NG: GO TO 2.

1. Disconnect BCM and combination flasher unit connector.
2. Check continuity between BCM connector M4 terminal 7 (W/L) and combination flasher unit connector M91 terminal 6 (W/L).

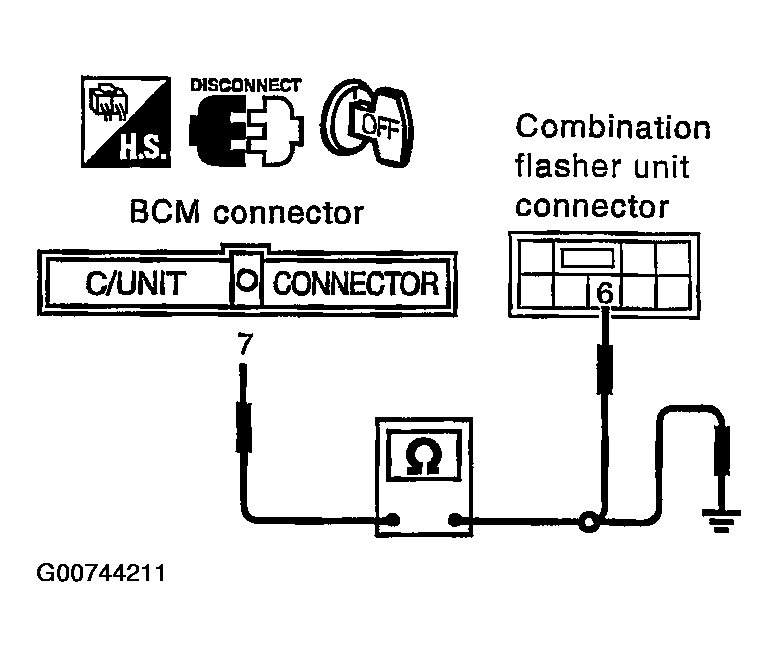

   Fig 3: Checking Combination Flasher Unit Circuit

   Courtesy of NISSAN MOTOR CO., U.S.A.

   7 (W/L) - 6 (W/L): Continuity should exist.

3. Check continuity between BCM connector M4 terminal 7 (W/L) and ground.

   7 (W/L) - Ground: Continuity should not exist.

OK or NG

1. OK: Replace BCM.
2. NG: Repair or replace harness.
